Muffler Replacement - Left

Muffler Replacement - Left

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the intermediate pipe.

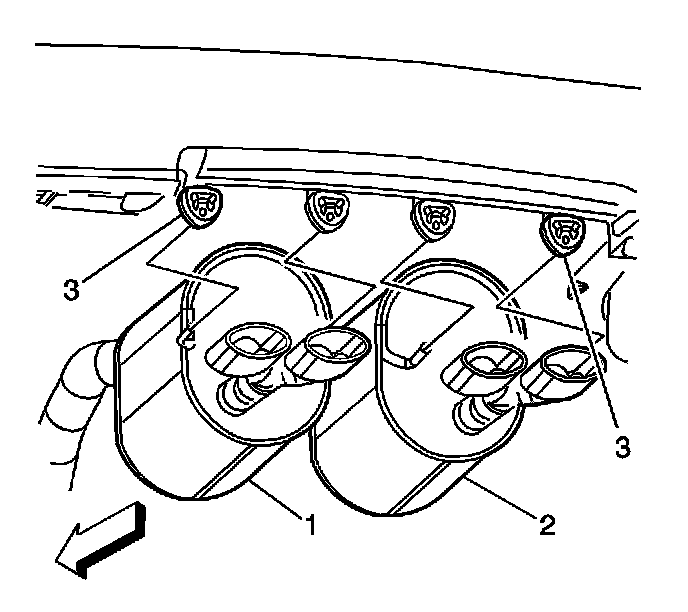

3. Remove the left muffler from the hangers (3).
4. Remove the left muffler (1).

Installation Procedure





1. Using a wire brush, clean the contact area of the intermediate pipe for the muffler.
2. Install the left muffler (1) to the hangers (3).
3. Install the intermediate pipe.
4. Lower the vehicle.
