Radiator Hose Replacement - Outlet

Radiator Hose Replacement - Outlet

Tools Required
^ J38185 Hose Clamp Pliers

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Drain the cooling system.

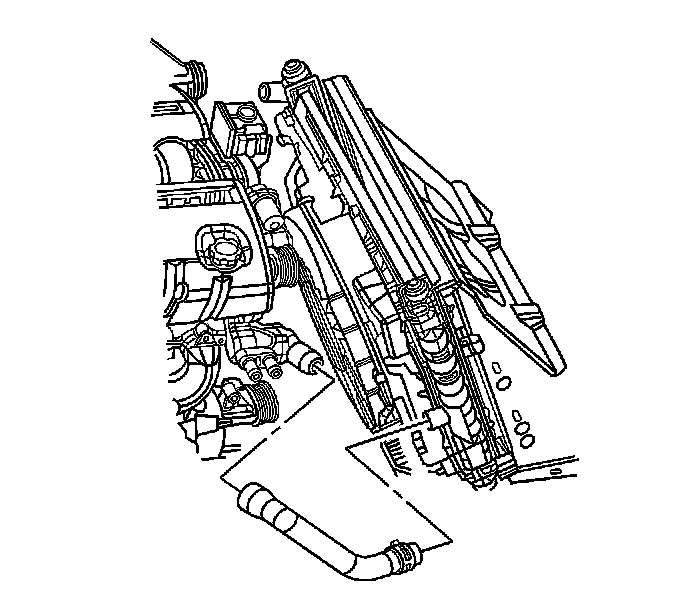

3. Disengage tension on the radiator outlet hose clamp at the radiator using J38185.
4. Disconnect the radiator outlet hose from the radiator.
5. Lower the vehicle.
6. Disengage tension on the radiator outlet hose clamp at the engine using the J38185.
7. Disconnect the radiator outlet hose from the engine.
8. Remove the radiator outlet hose.

Installation Procedure

1. Notice: Make sure the reference marks on the hoses and the radiator are lined up. A twist on the hose would place strain on the radiator fitting which could cause the fitting to crack or break.

Important: Lubricate the inside diameters of the hose with clean coolant prior to installation.

Install the radiator outlet hose.





2. Connect the radiator outlet hose to the engine.
3. Engage tension on the radiator outlet hose clamp at the engine.
4. Raise the vehicle.
5. Connect the radiator outlet hose to the radiator.
6. Engage tension on the radiator outlet hose clamp at the radiator.
7. Lower the vehicle.
8. Fill the cooling system.
