Radiator Hose Replacement - Inlet

Radiator Hose Replacement - Inlet

Tools Required
^ J38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.
2. Remove the radiator support.

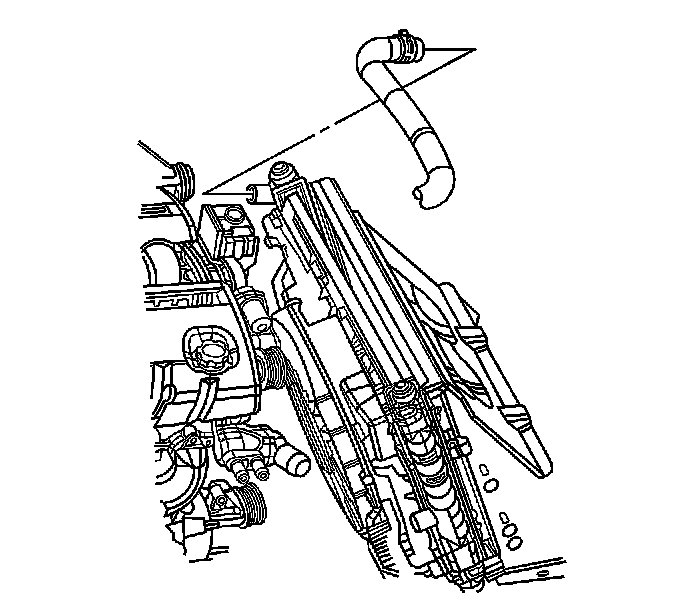

3. Disengage tension on the radiator inlet hose clamp at the radiator using J38185.
4. Disconnect the radiator inlet hose from the radiator.

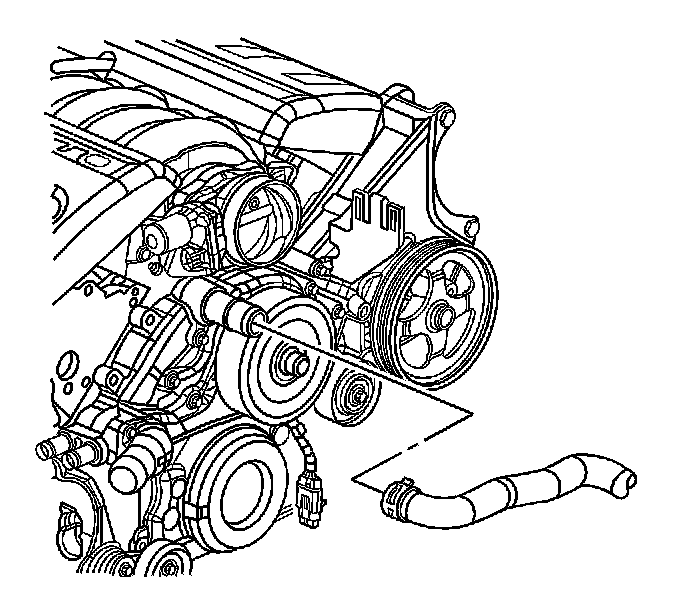

5. Disengage tension on the radiator inlet hose clamp at the water pump using J38185.
6. Disconnect the radiator inlet hose from the water pump.
7. Remove the radiator inlet hose from the vehicle.

Installation Procedure

1. Notice: Make sure the reference marks on the hoses and the radiator are lined up. A twist on the hose would place strain on the radiator fitting which could cause the fitting to crack or break.

Important: Lubricate the inside diameters of the hose with clean coolant prior to installation.

Install the radiator inlet hose to the vehicle.





2. Connect the radiator inlet hose to the water pump.
3. Engage tension on the radiator inlet hose clamp at the water pump using J38185.





4. Connect the radiator inlet hose to the radiator.
5. Engage tension on the radiator inlet hose clamp at the radiator using J38185.
6. Install the radiator support.
7. Fill the cooling system.
