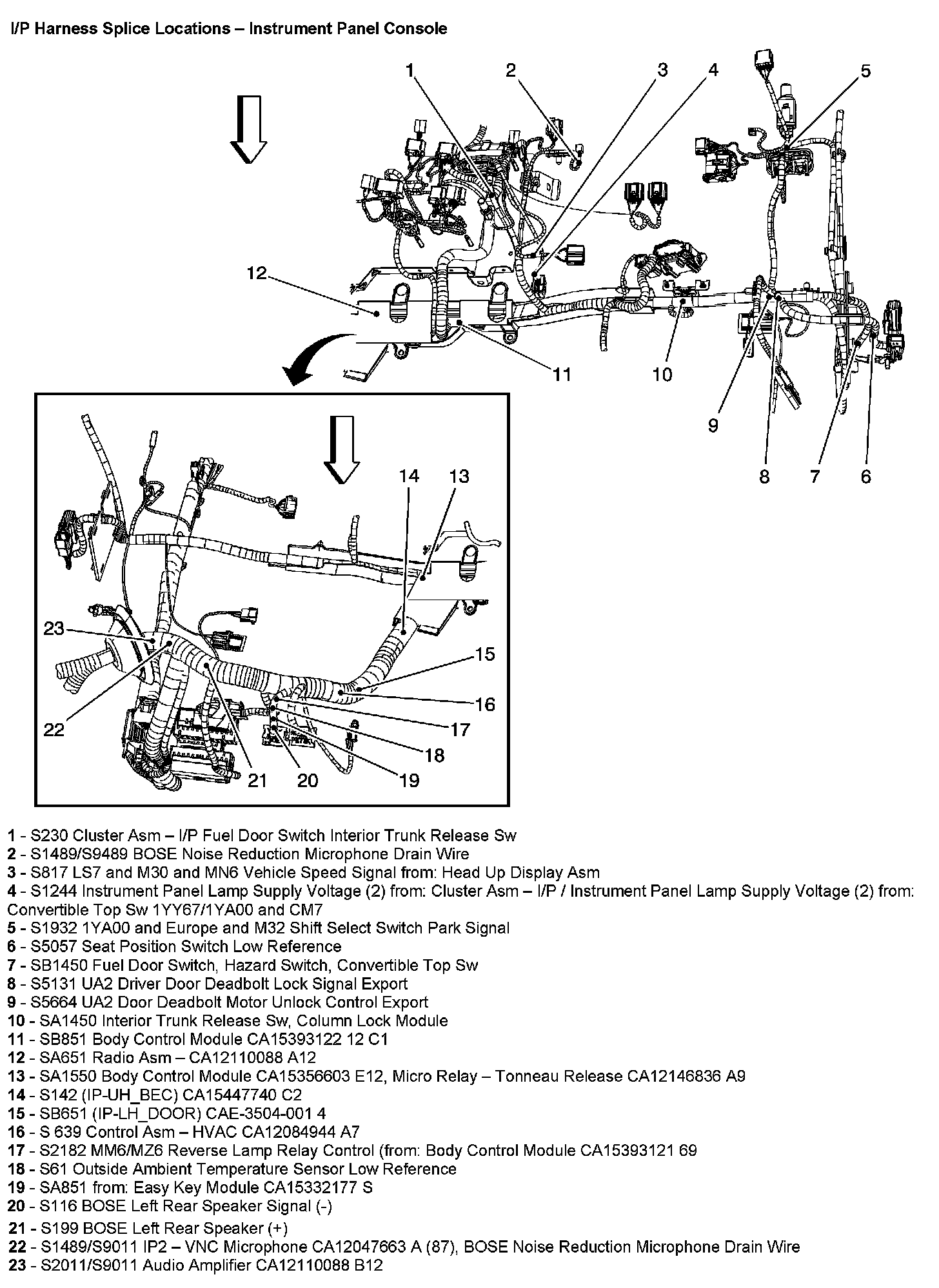

I/P Harness Splice Locations - Instrument Panel Console
I/P Harness Splice Locations - Instrument Panel Console
I/P Harness Splice Locations - Instrument Panel Console:
