Convertible Top

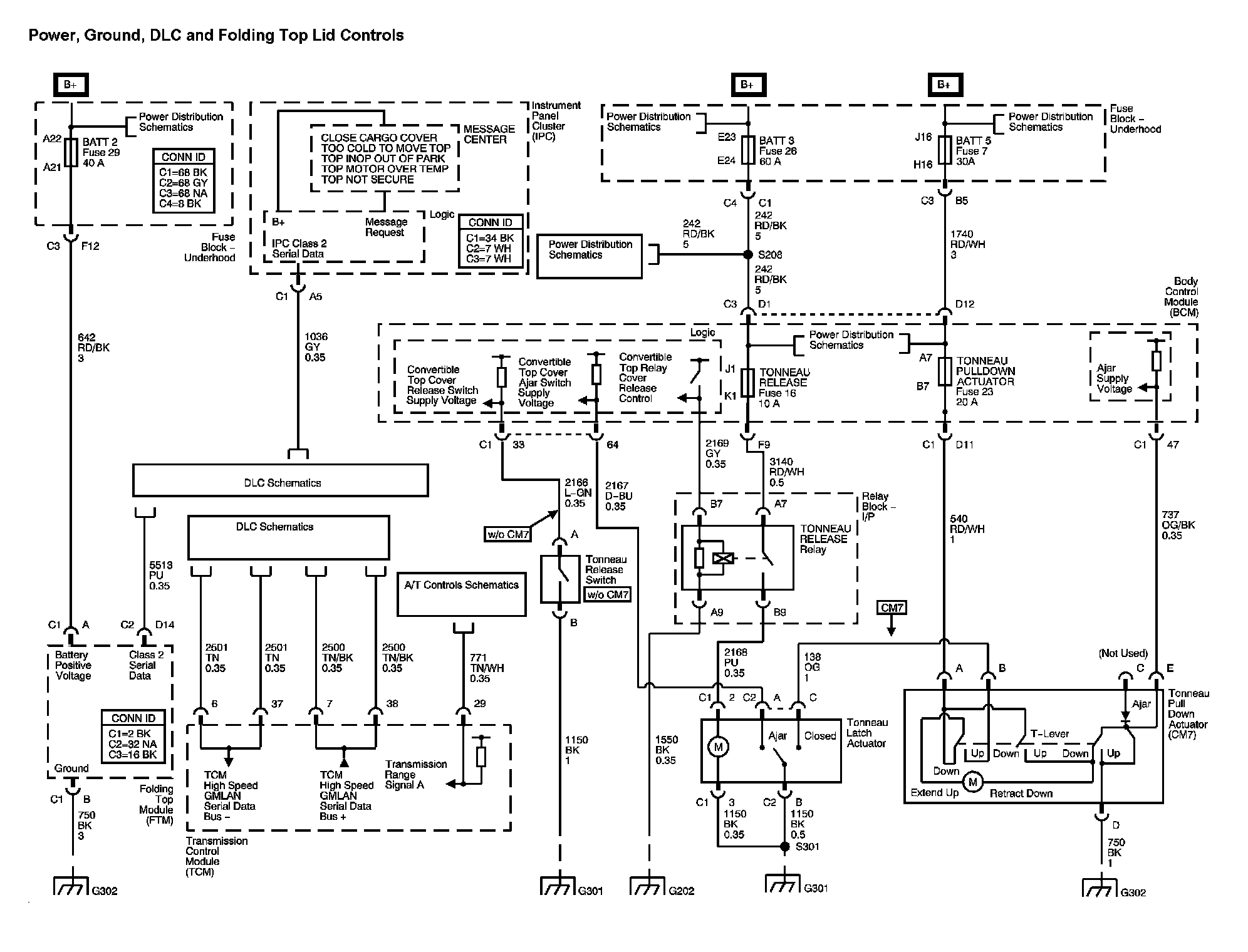

Power Folding Top Diagram 1:

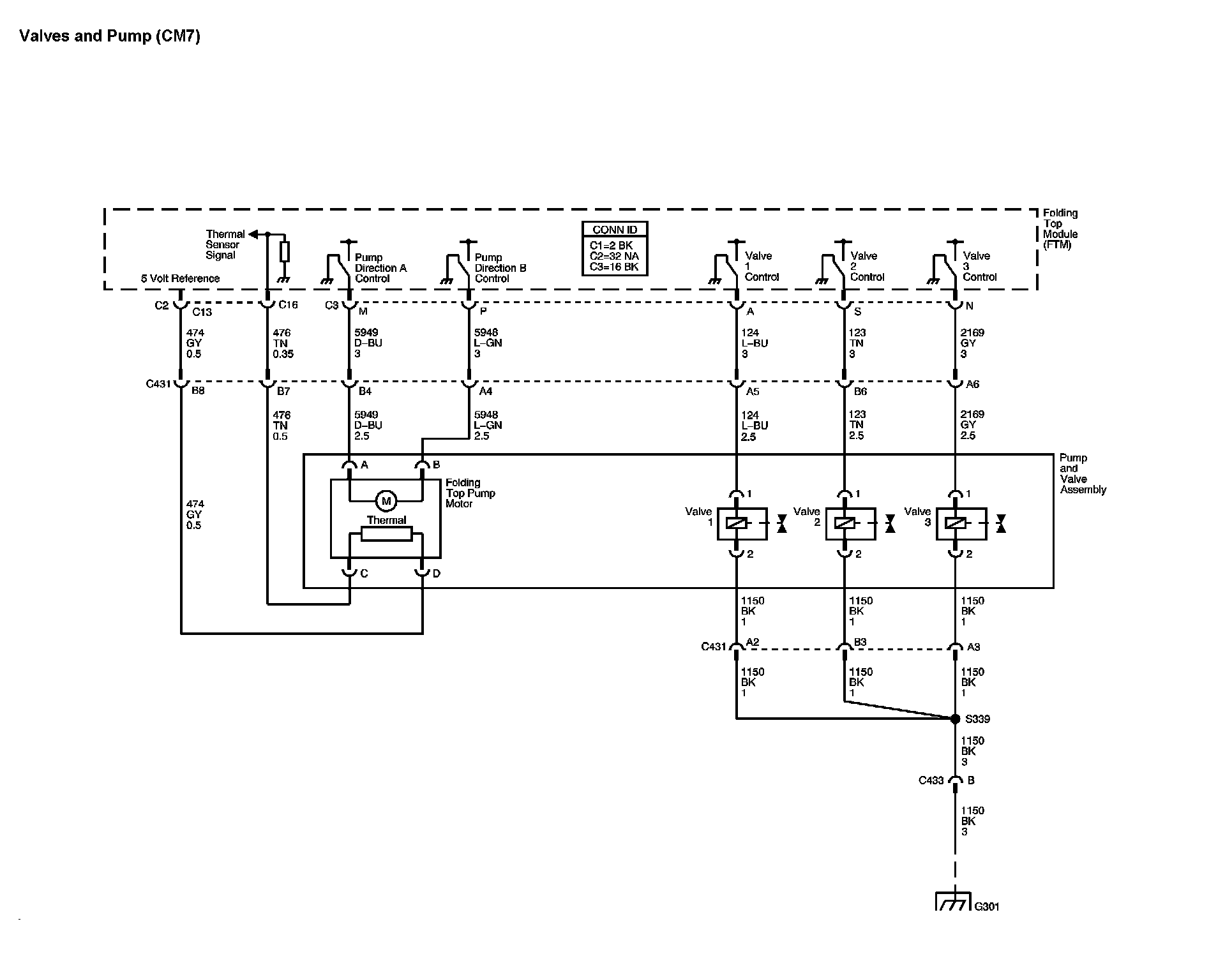

Power Folding Top Diagram 2:

Power Folding Top Diagram 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
