Suspension Strut / Shock Absorber
>>
Suspension Damper - LF
Suspension Damper - LF

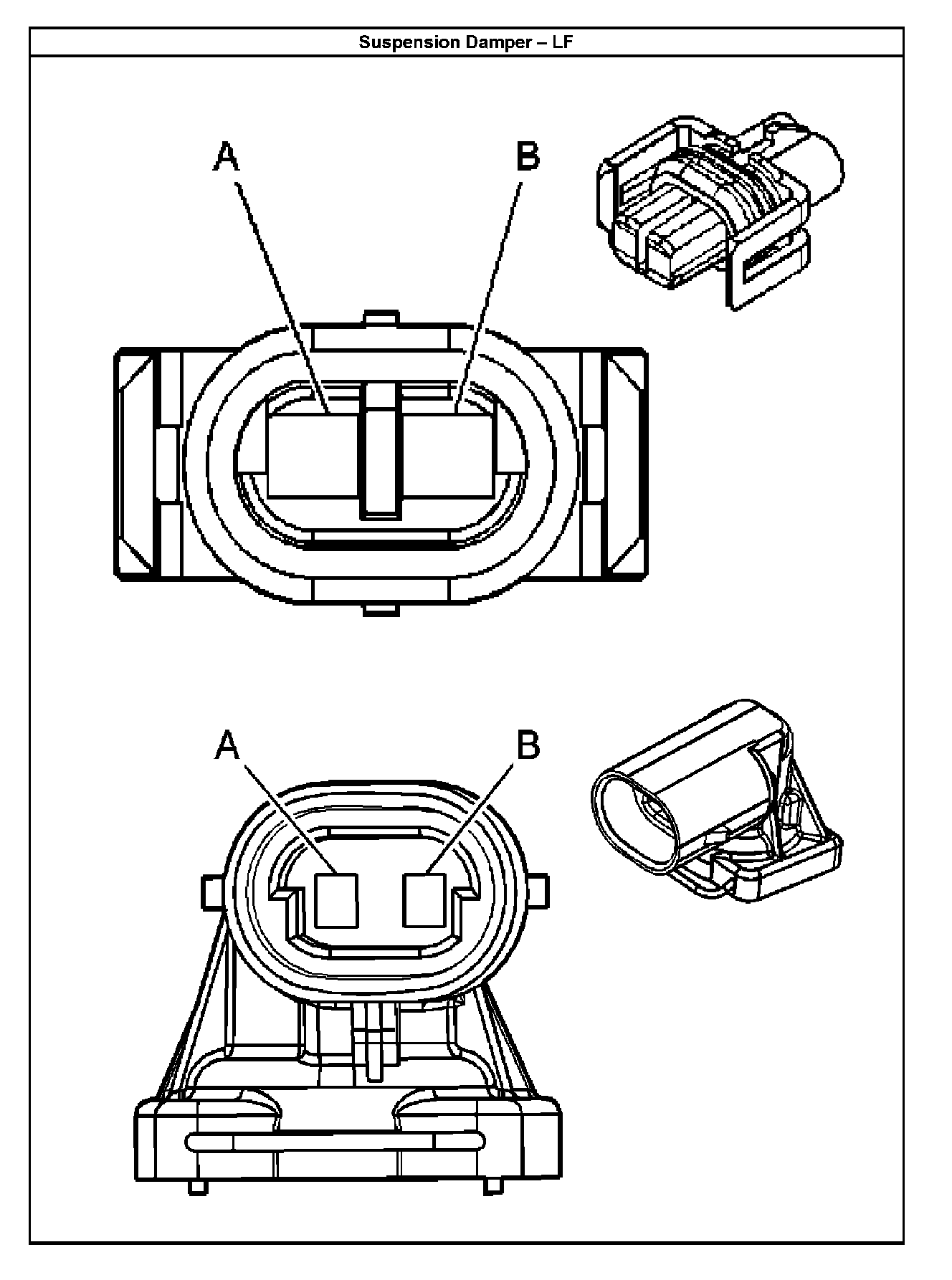

Suspension Damper - LF:

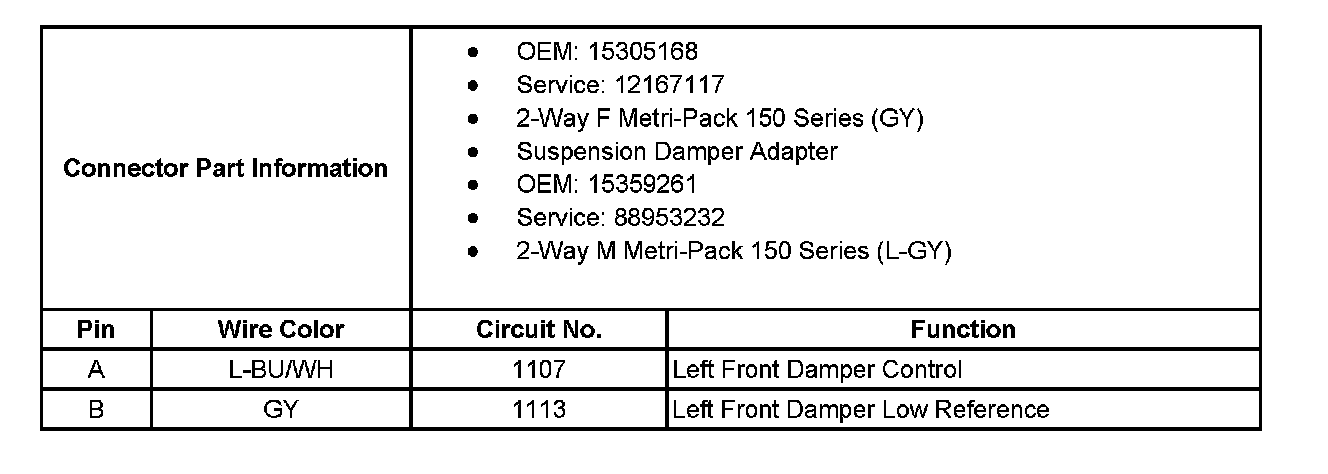

Suspension Damper - LF:
