Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
RR Midrange
RR Midrange

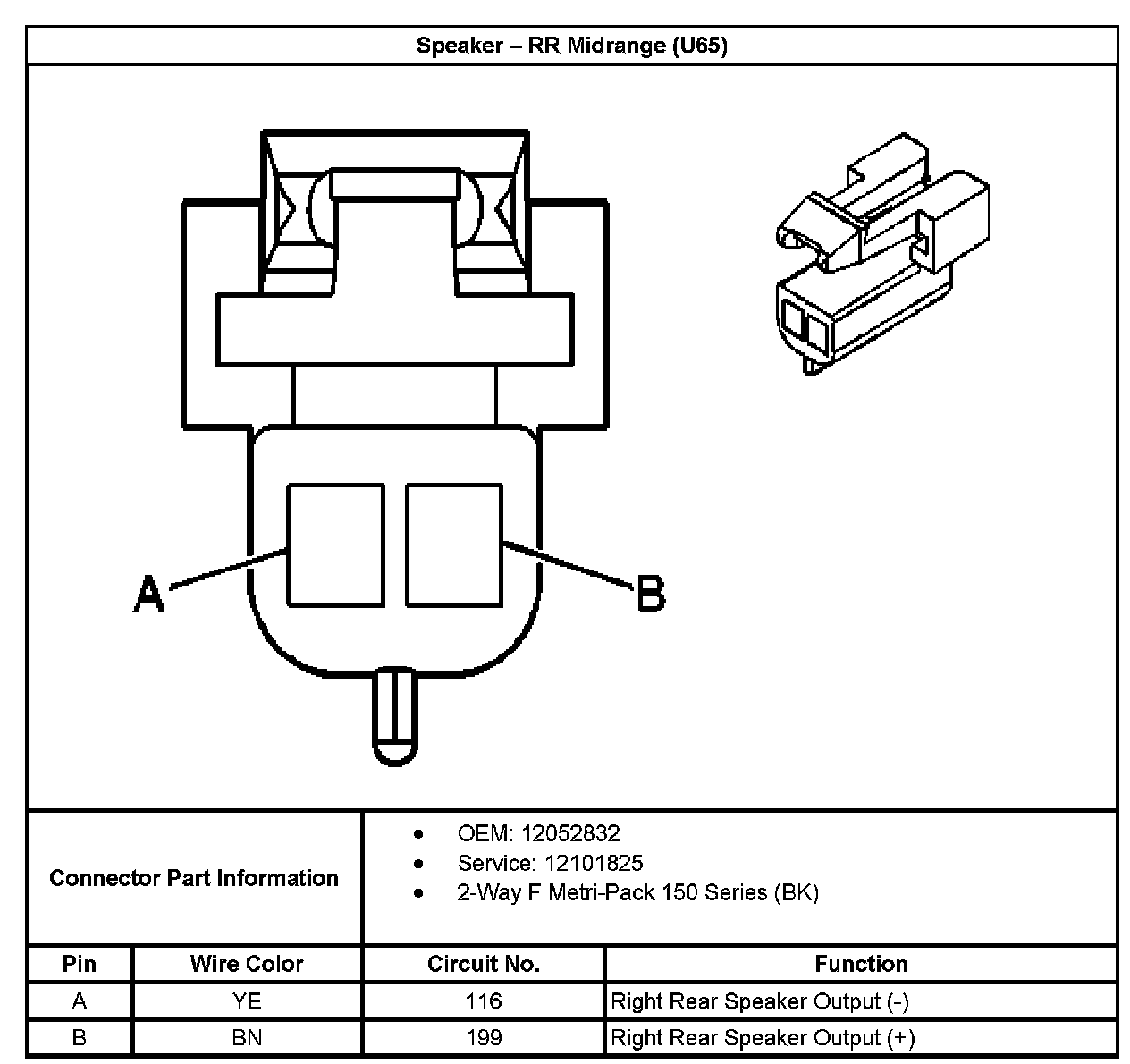

Speaker-RR Midrange (With RPO Code U65):

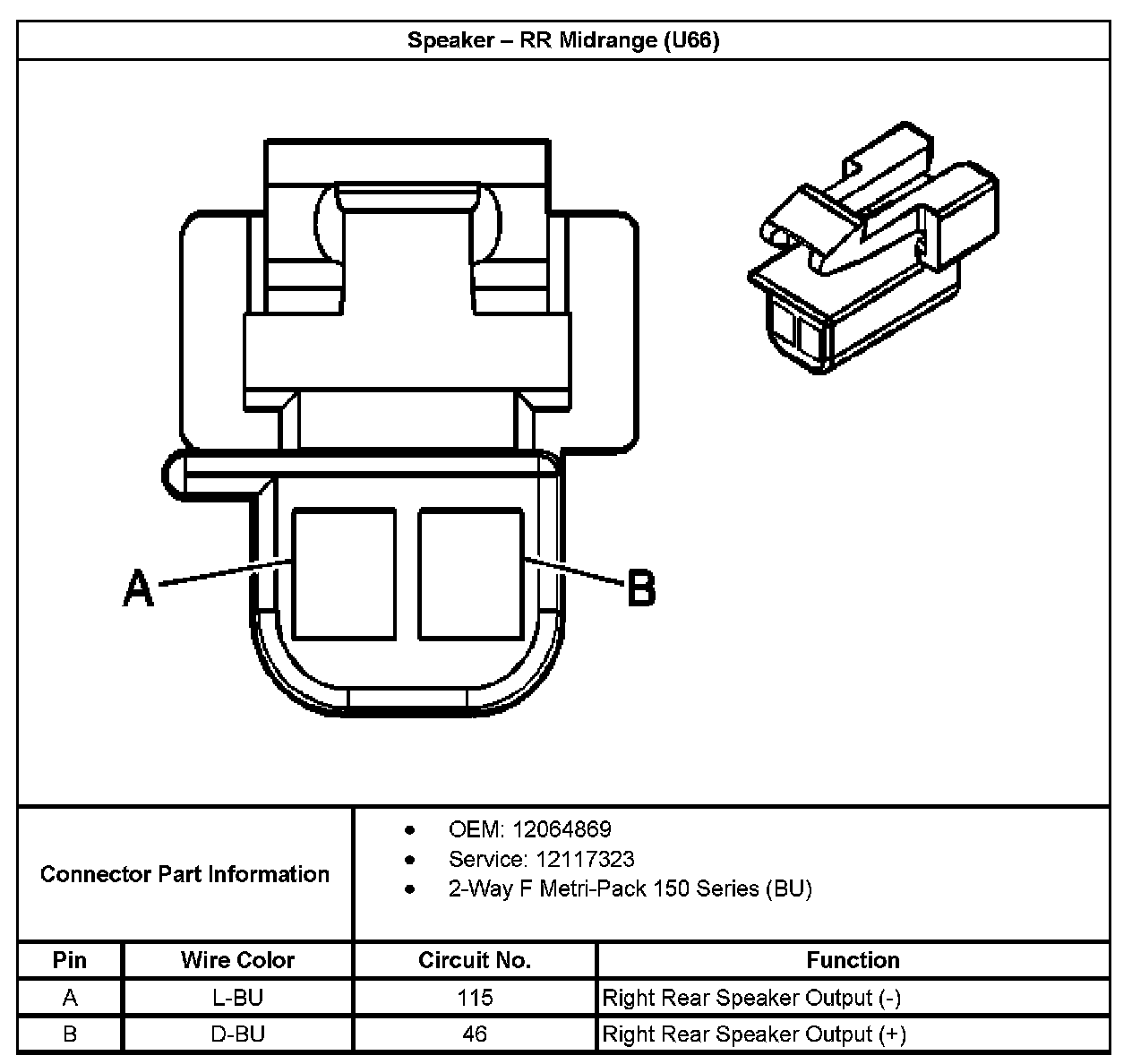

Speaker-RR Midrange (With RPO Code U66):
