Seat Temperature Element
>>
Heated Seat Cushion
Heated Seat Cushion

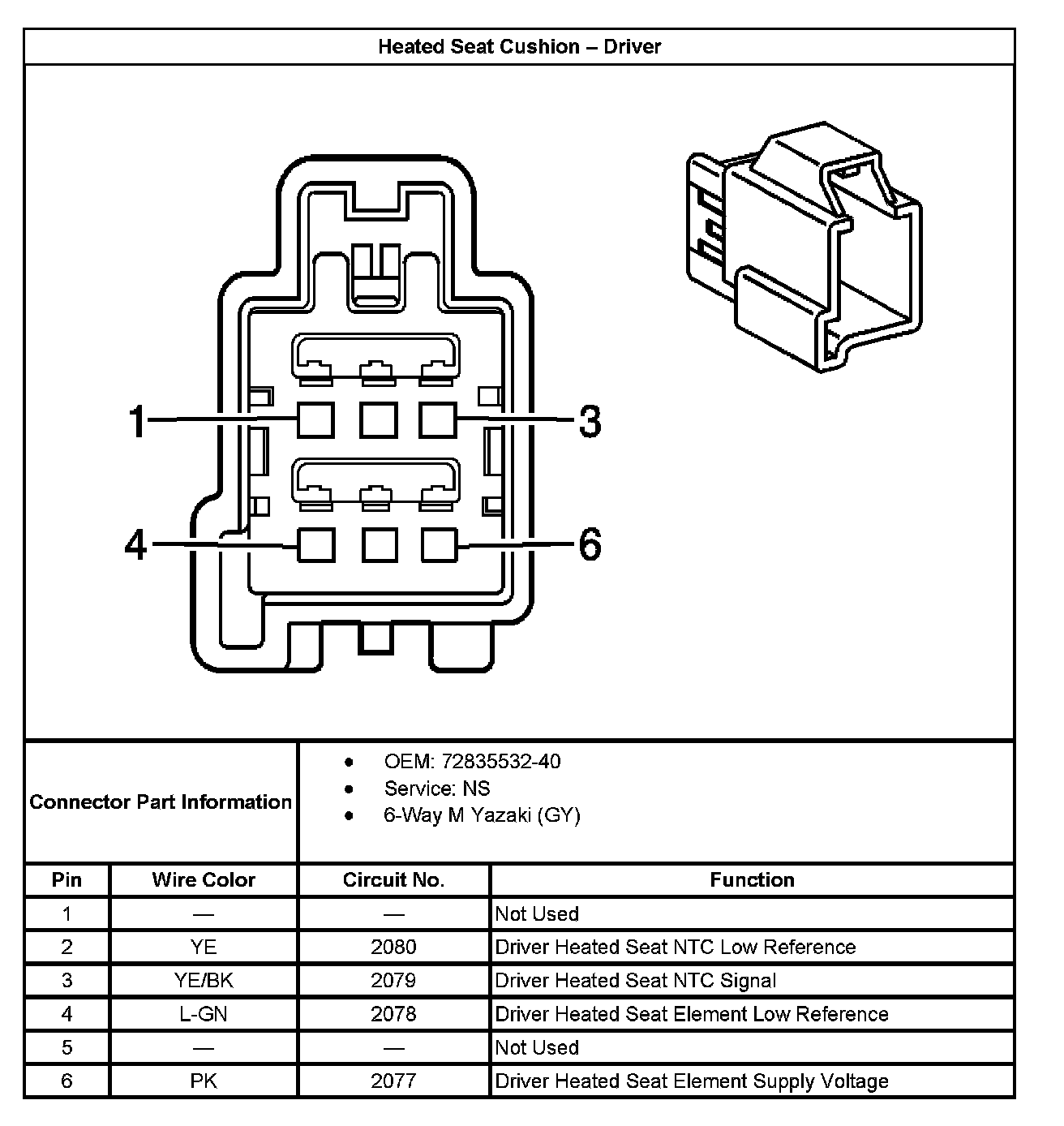

Heated Seat Cushion - Driver:

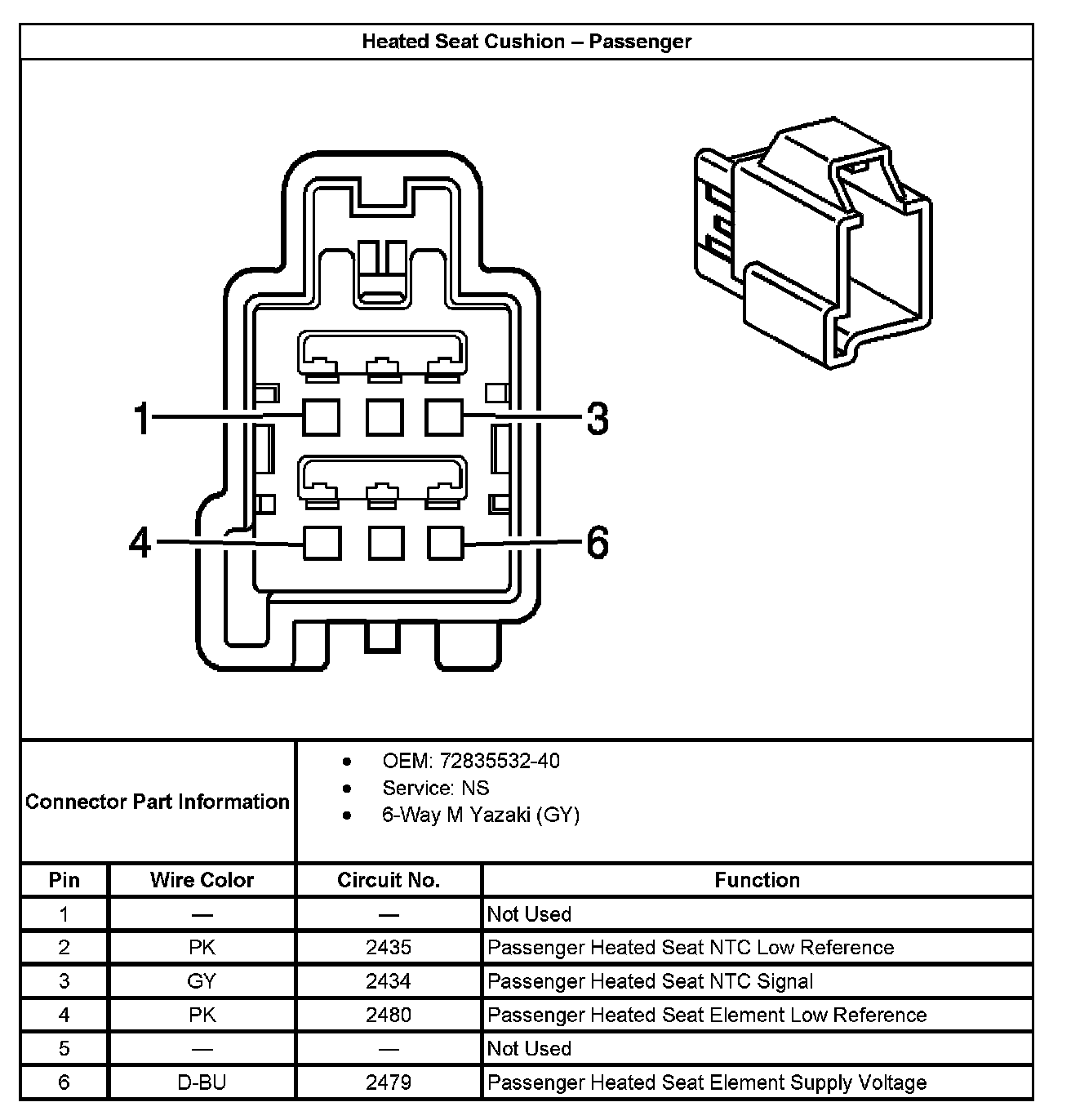

Heated Seat Cushion - Passenger:
