Seat Temperature Element
>>
Heated Seat Back
Heated Seat Back

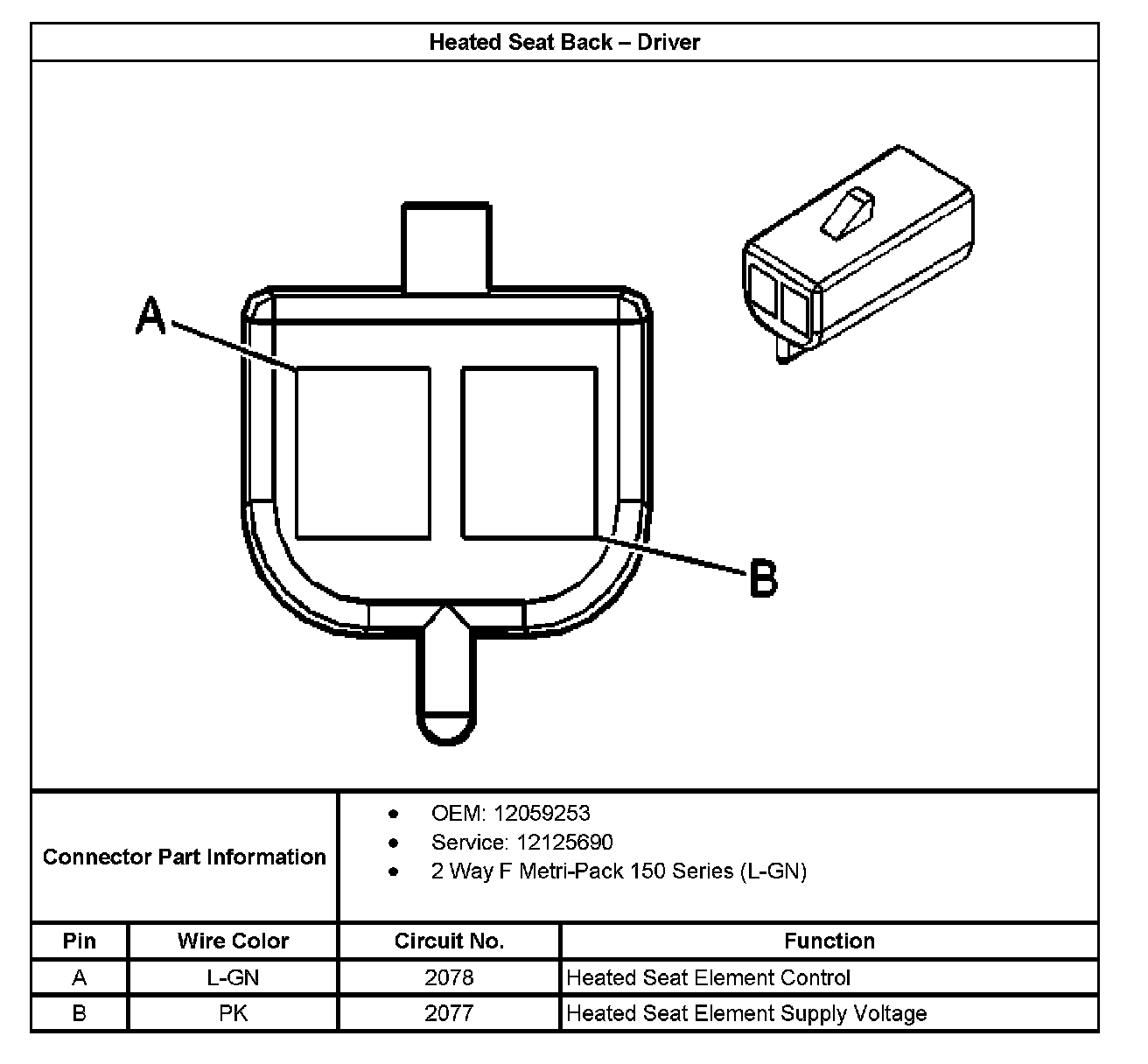

Heated Seat Back - Driver:

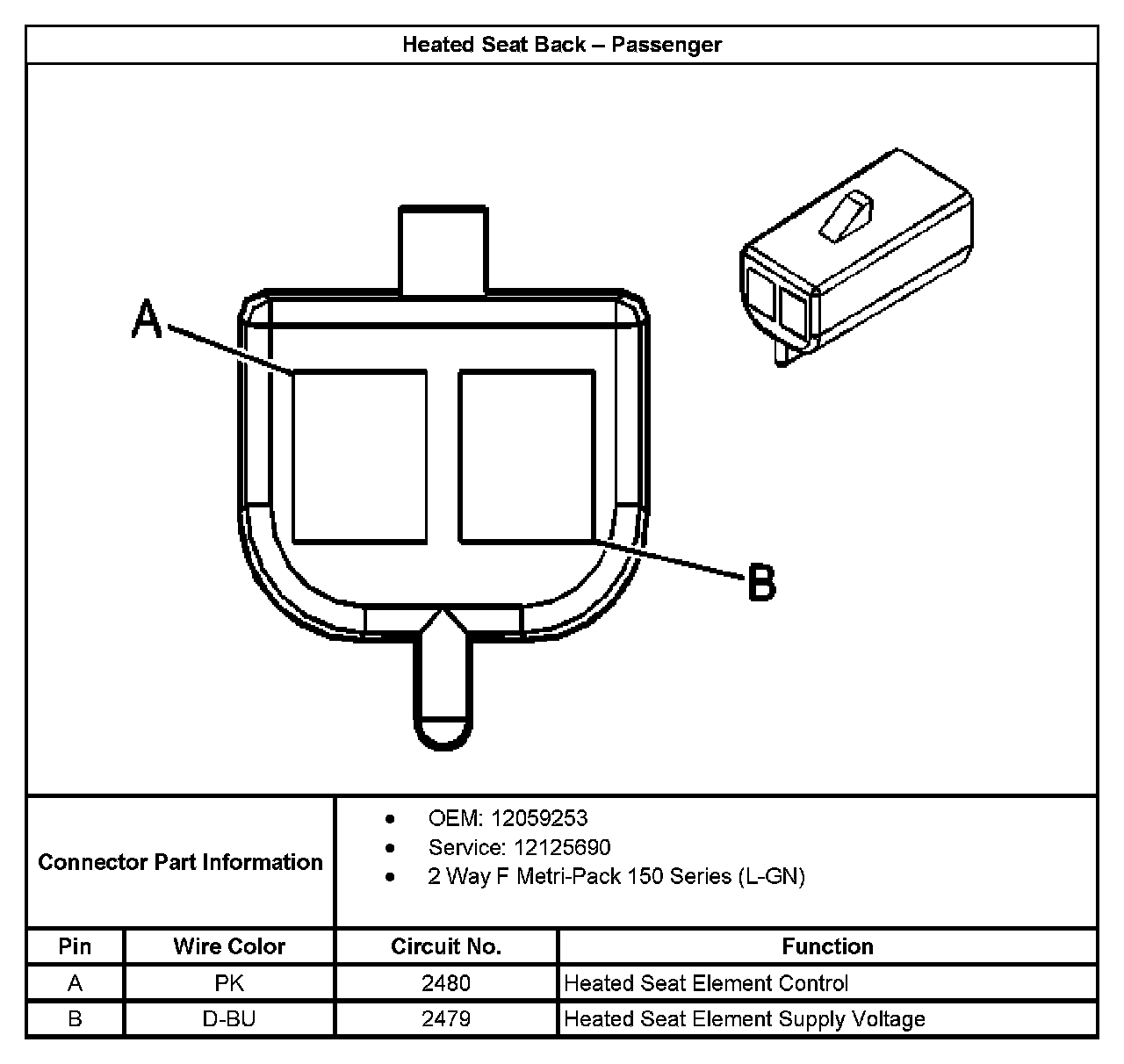

Heated Seat Back - Passenger:
