Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo
Digital Radio Receiver (With RPO Code U2K):
Noise Compensation Microphone:
Radio C1:
Radio C2:

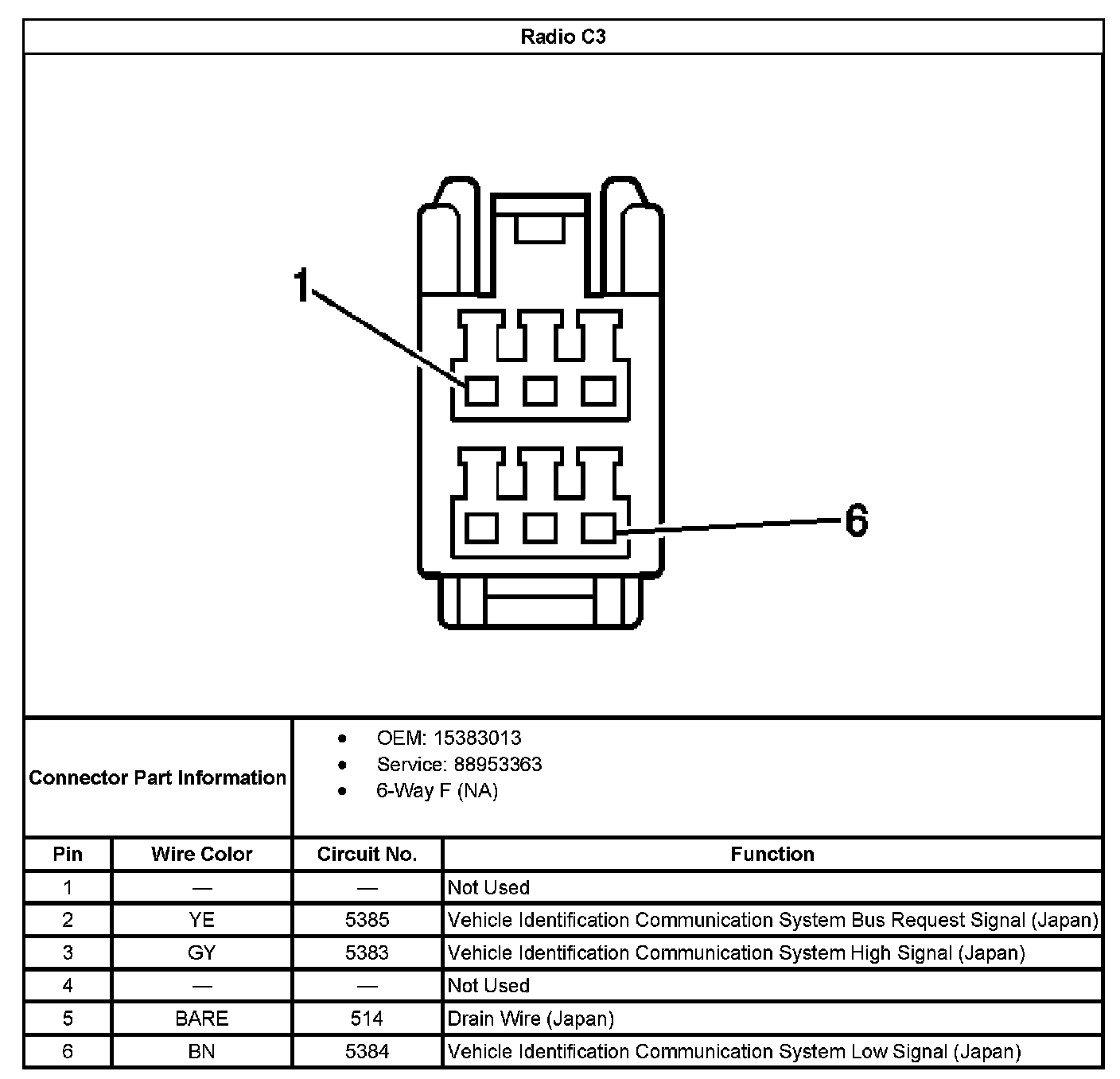

Radio C3:
