Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Lumbar Switch
Lumbar Switch

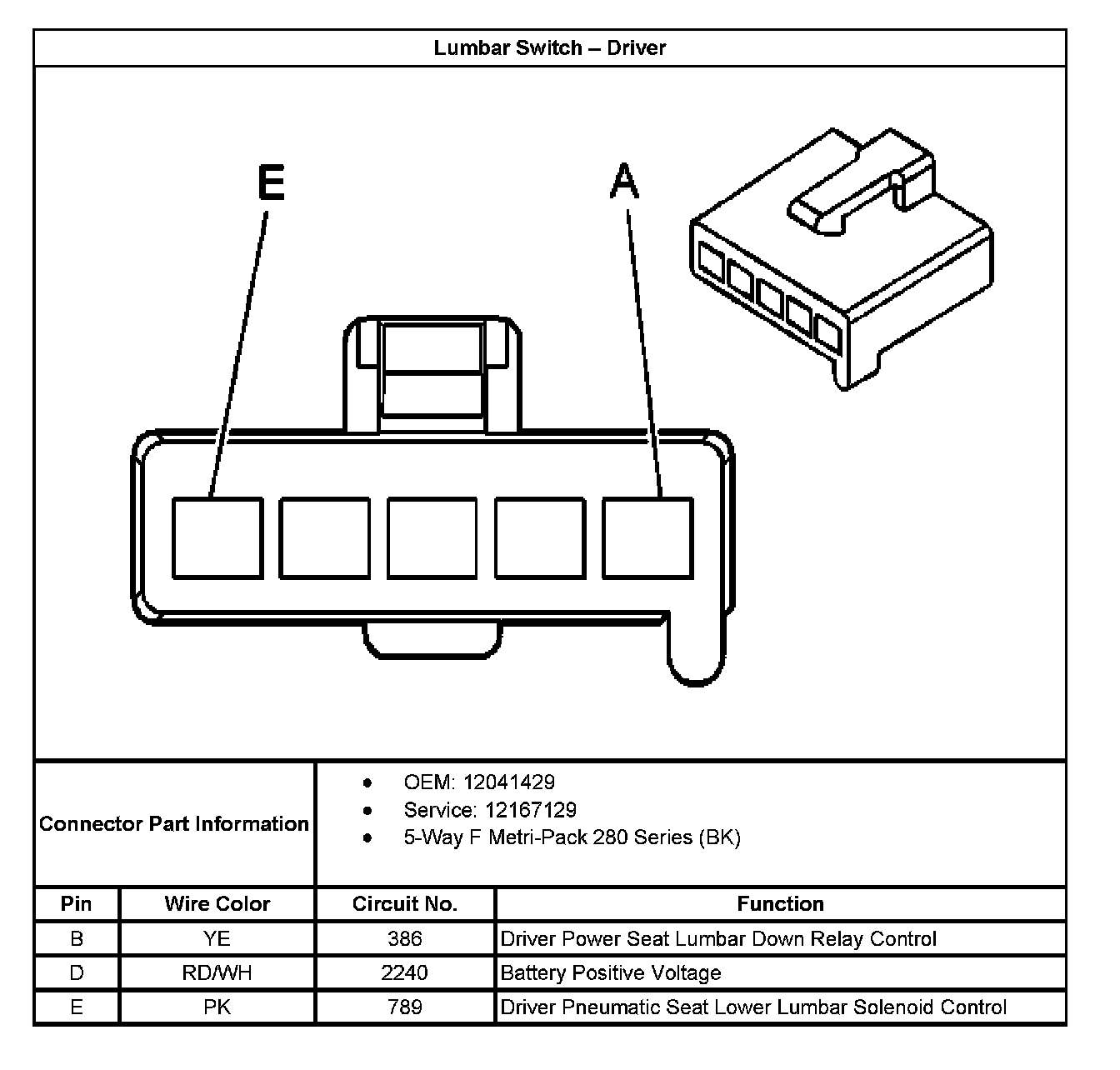

Lumbar Switch - Driver:
Lumbar Switch - Passenger:
