Power Seat Motor

Seat Adjuster Motor Assembly - Driver C1:



Seat Adjuster Motor Assembly - Driver C2:

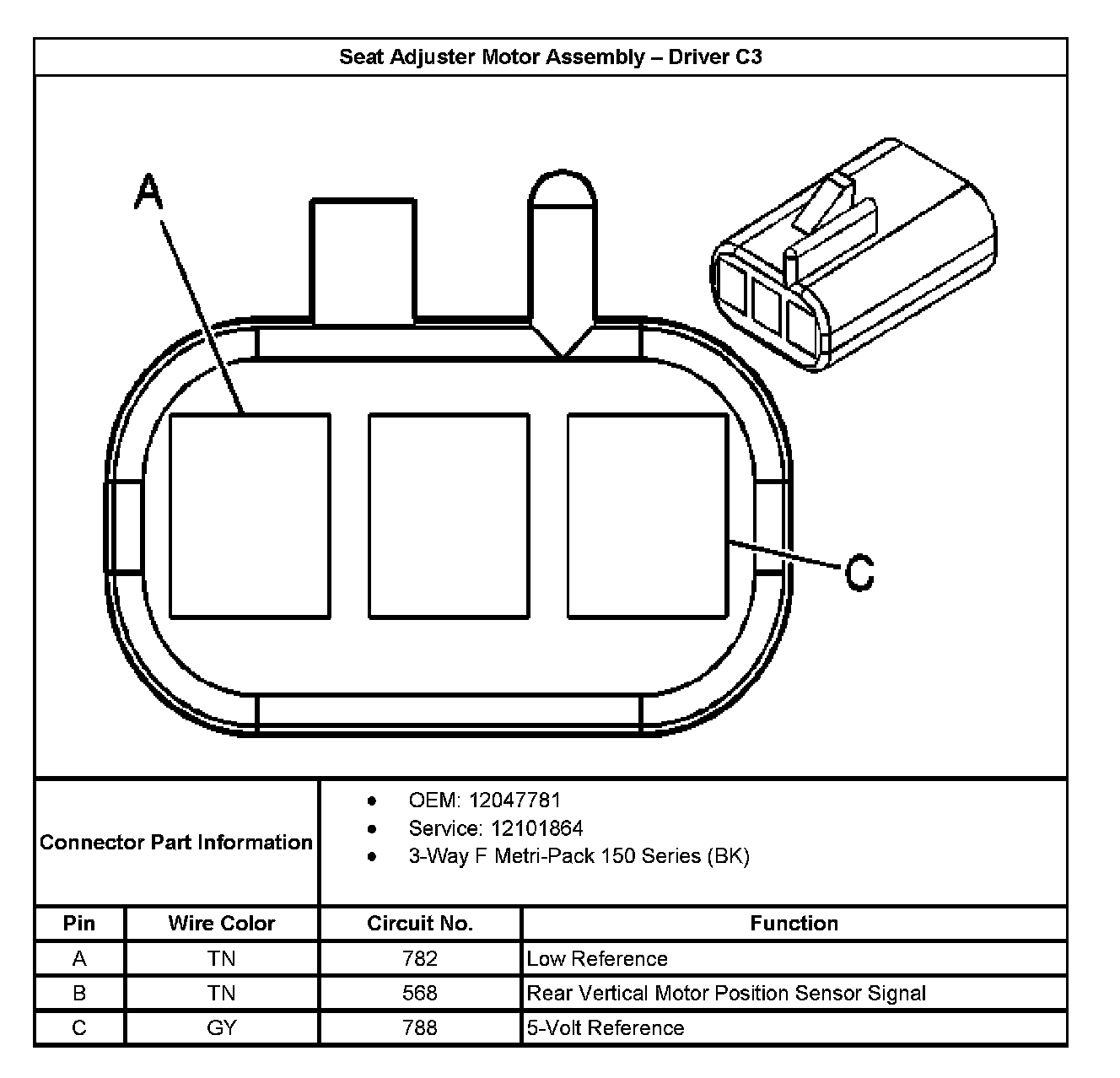

Seat Adjuster Motor Assembly - Driver C3:

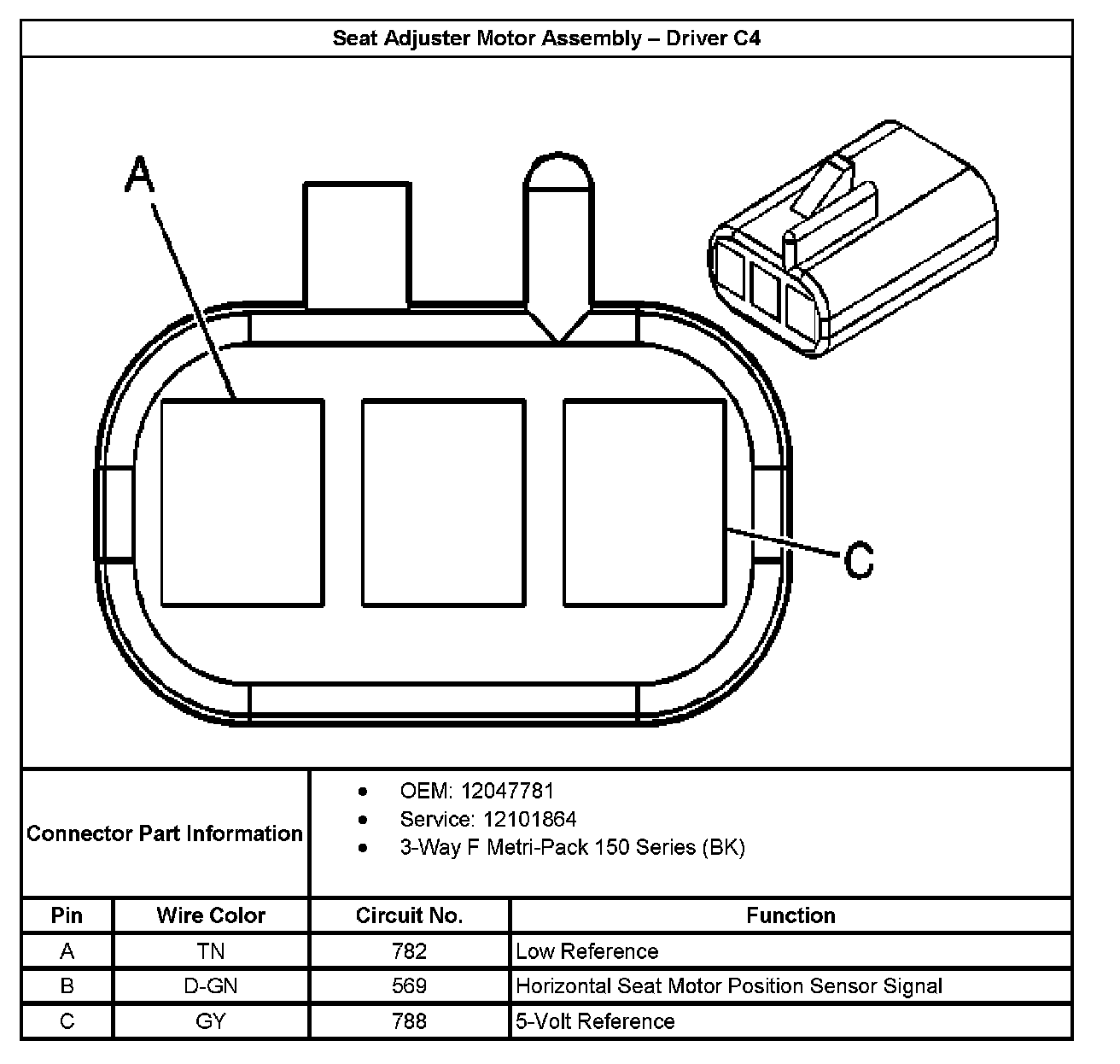

Seat Adjuster Motor Assembly - Driver C4:

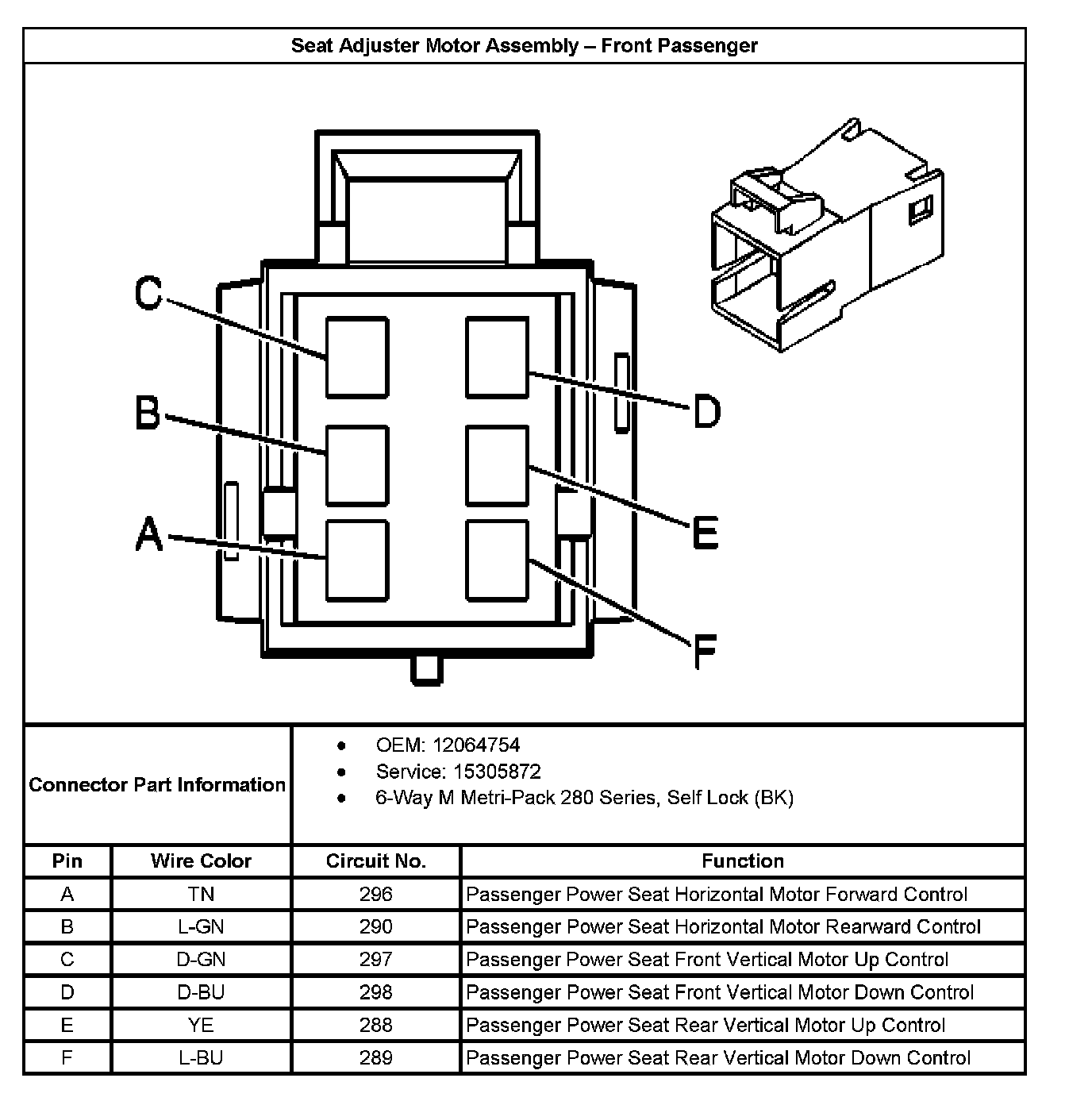

Seat Adjuster Motor Assembly - Front Passenger:
