Door Lock Reminder Light
Door Lock Reminder Light

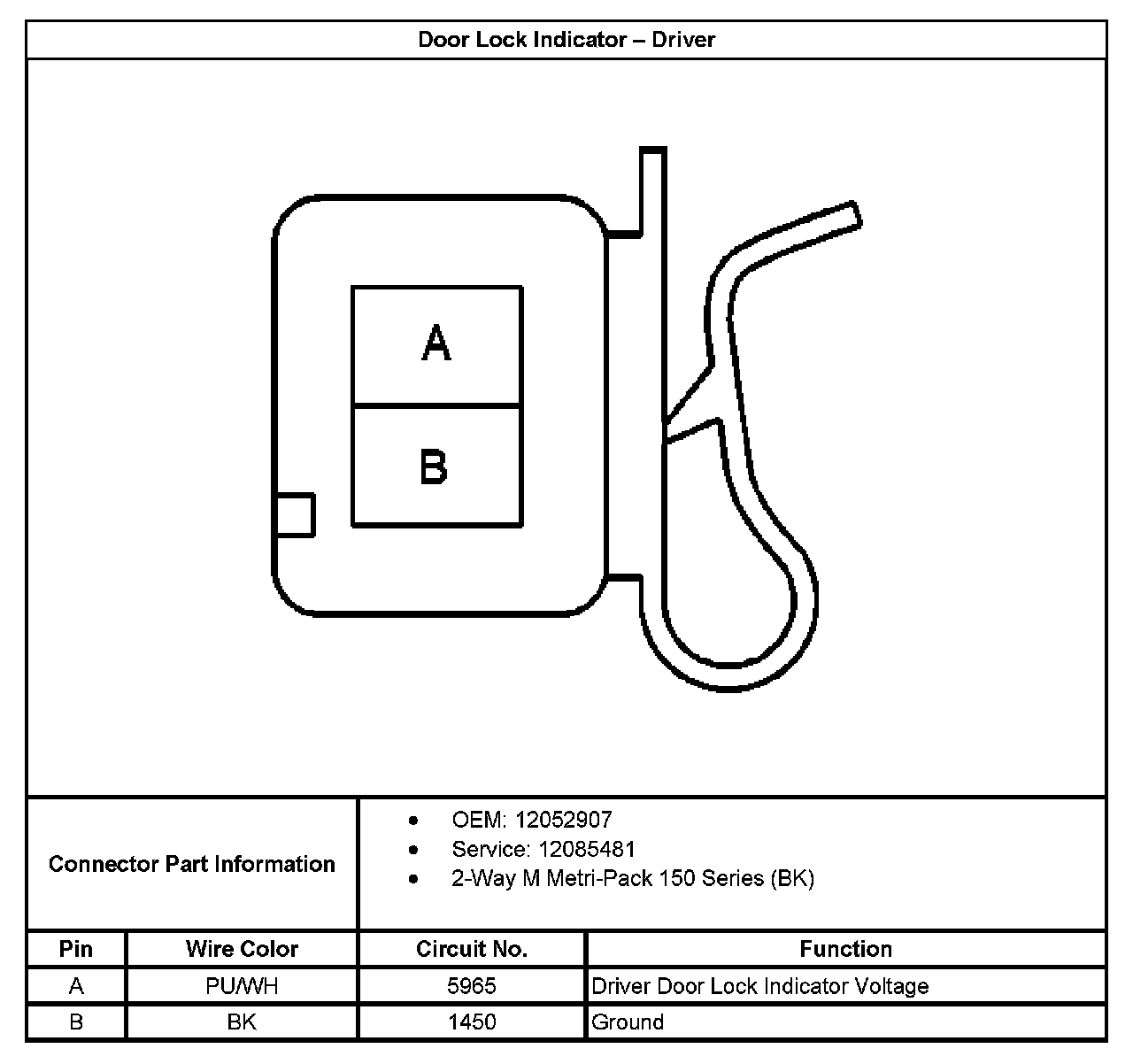

Door Lock Indicator - Driver:

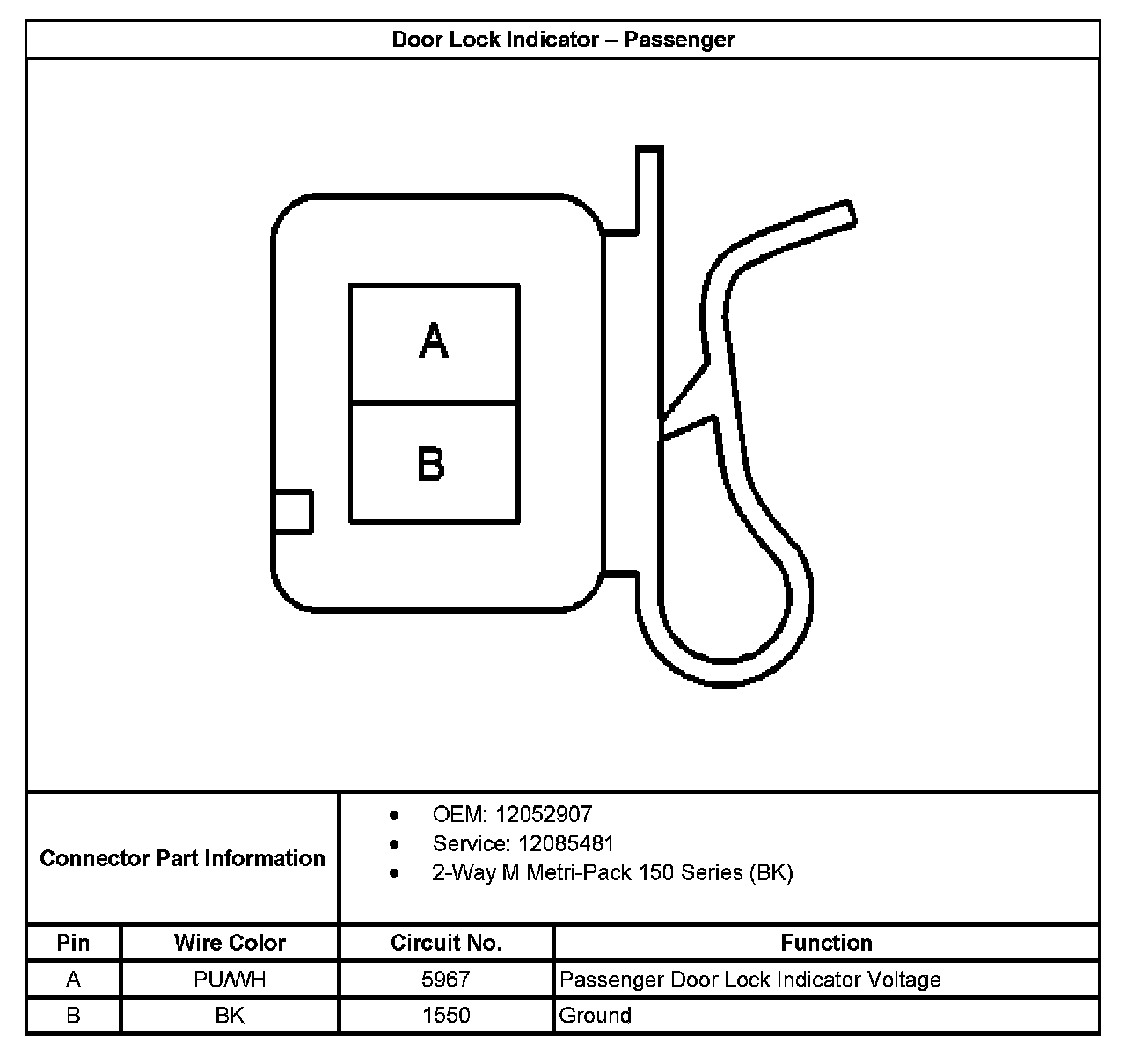

Door Lock Indicator - Passenger:
