Discharge Air Temperature Sensor / Switch, HVAC
Discharge Air Temperature Sensor / Switch, HVAC
Air Temperature Sensor-Lower Left:

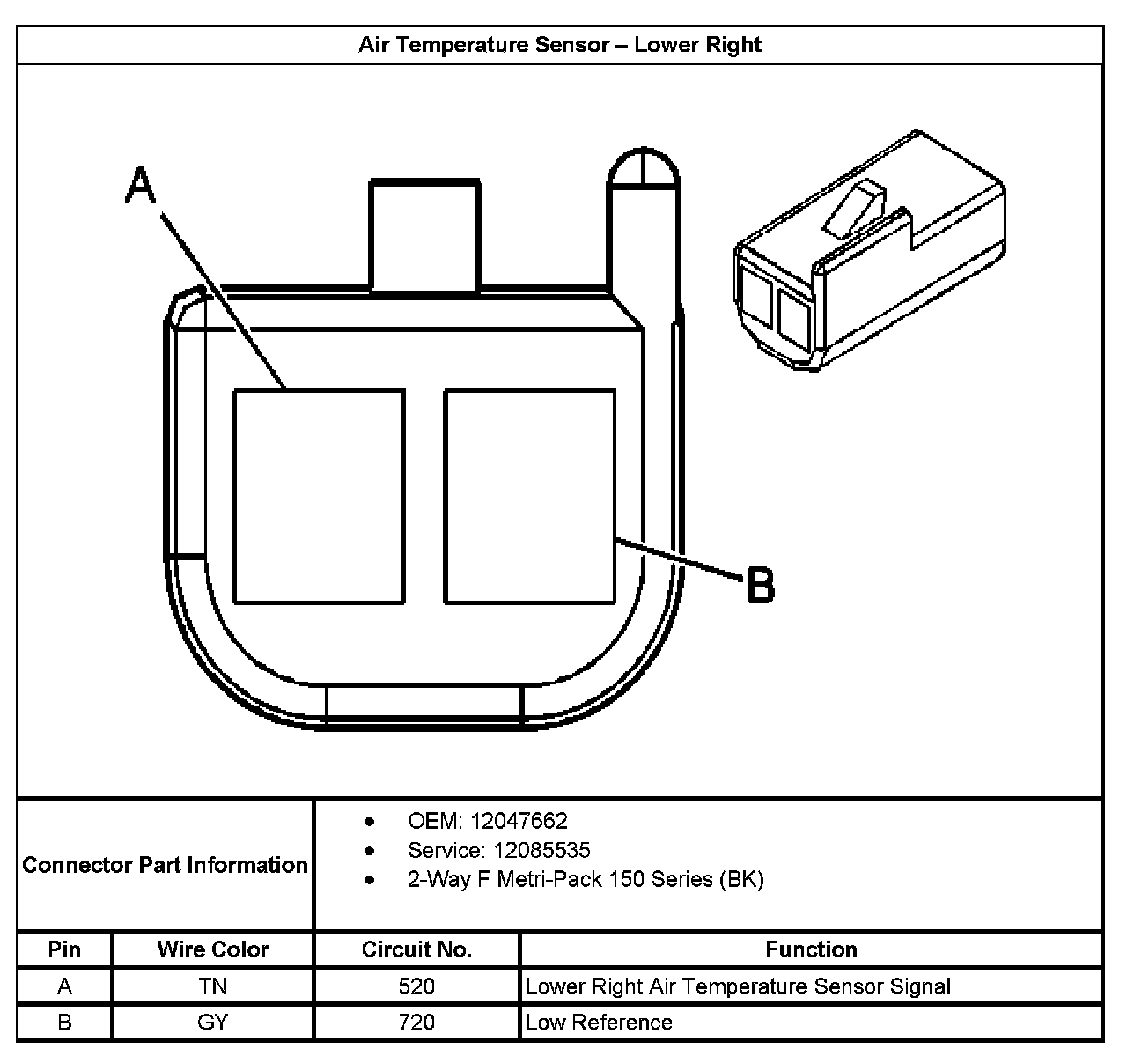

Air Temperature Sensor-Lower Right:

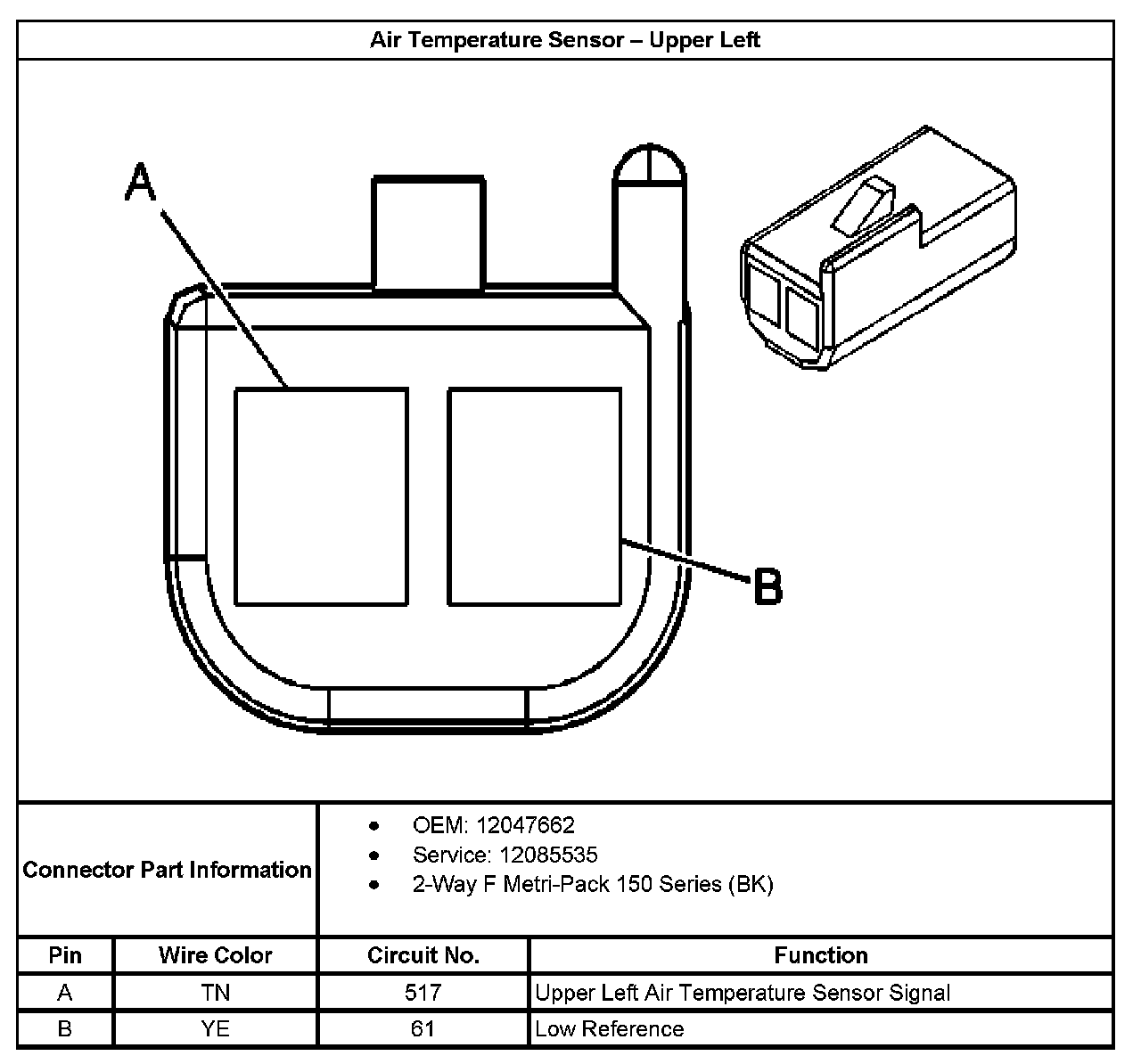

Air Temperature Sensor-Upper Left:

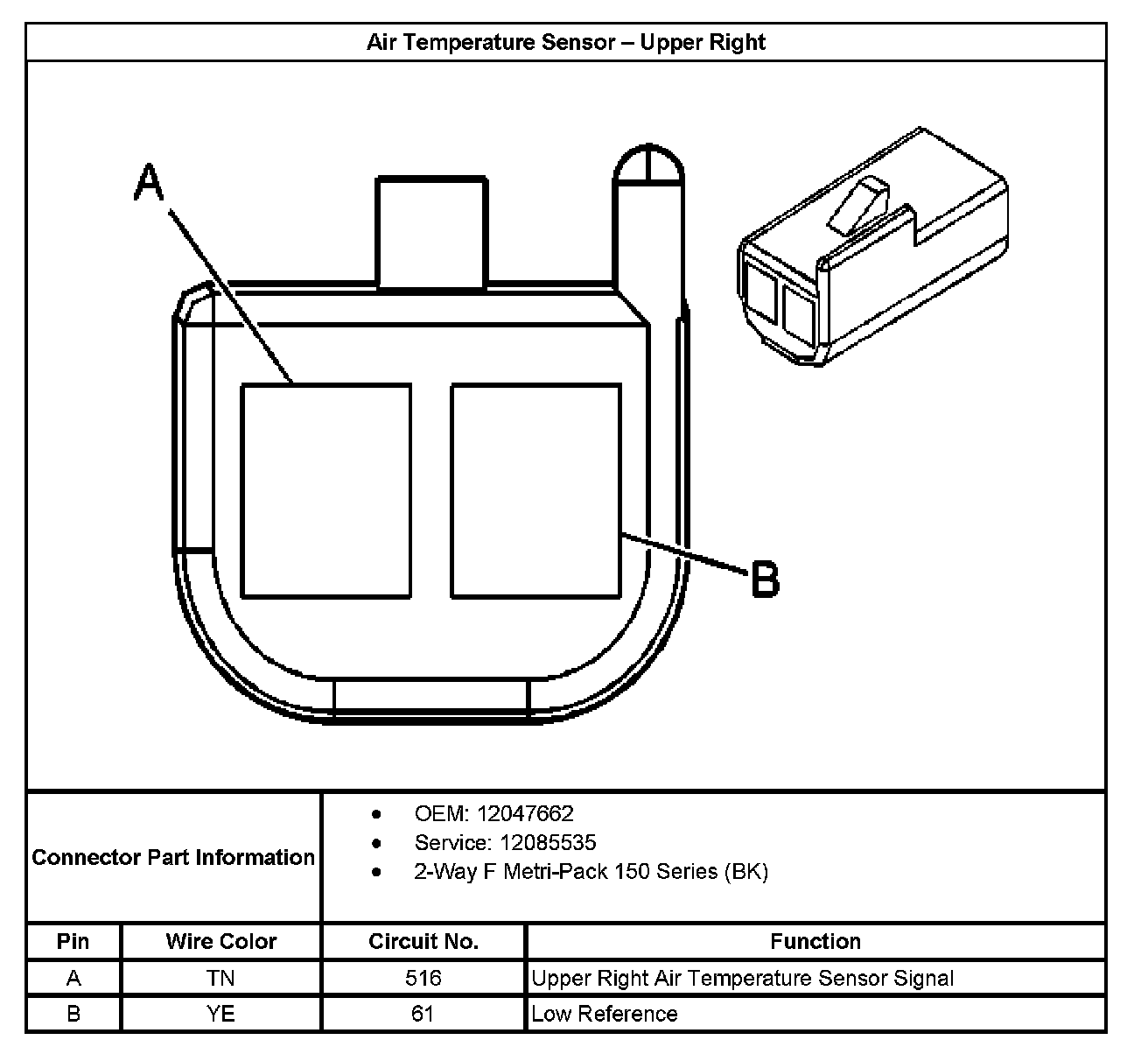

Air Temperature Sensor-Upper Right:
