Rear Compartment Courtesy Lamp - Right
Rear Compartment Courtesy Lamp - Right

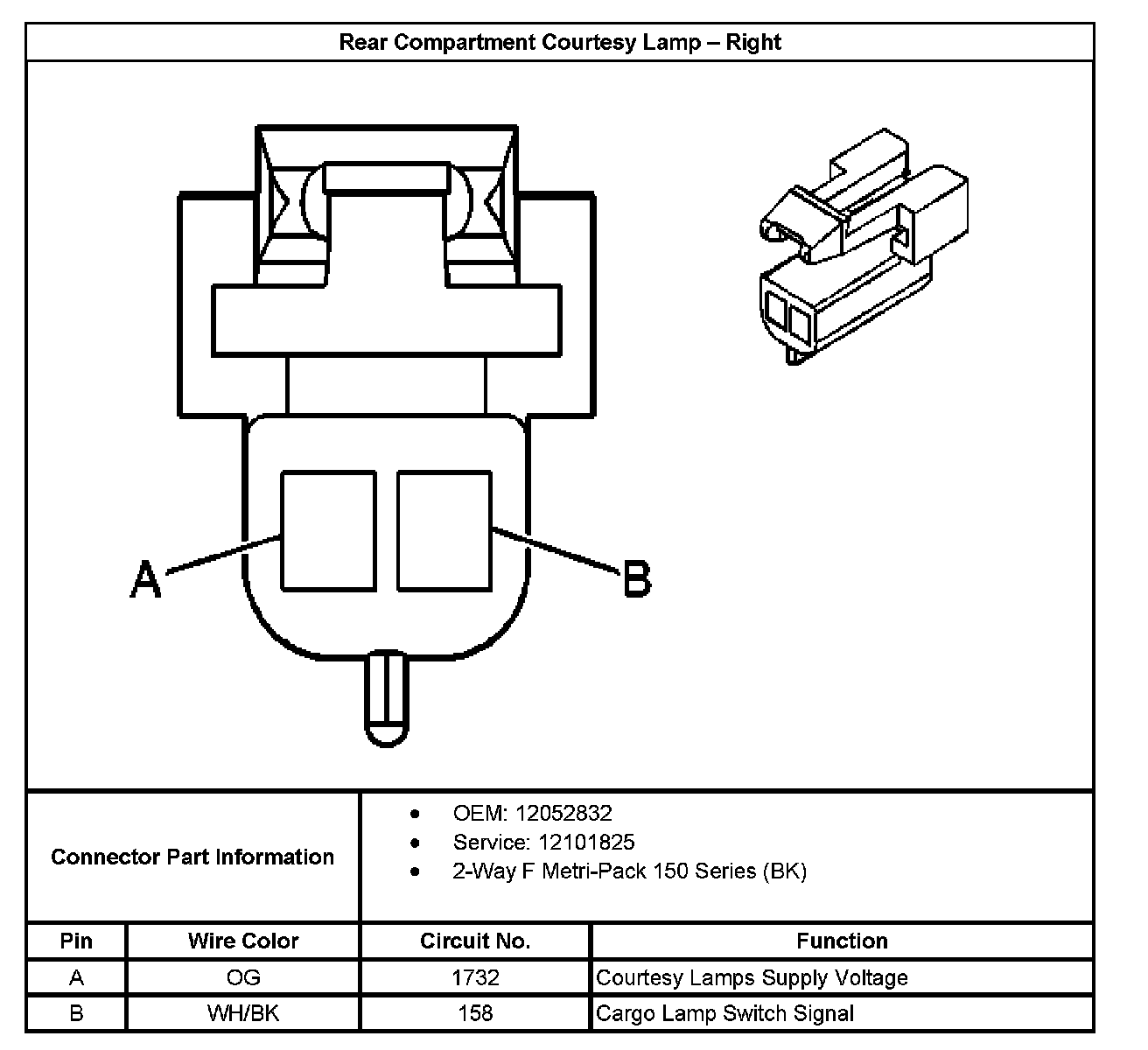

Rear Compartment Courtesy Lamp - Right:
