Rear Compartment Courtesy Lamp - Left
Rear Compartment Courtesy Lamp - Left

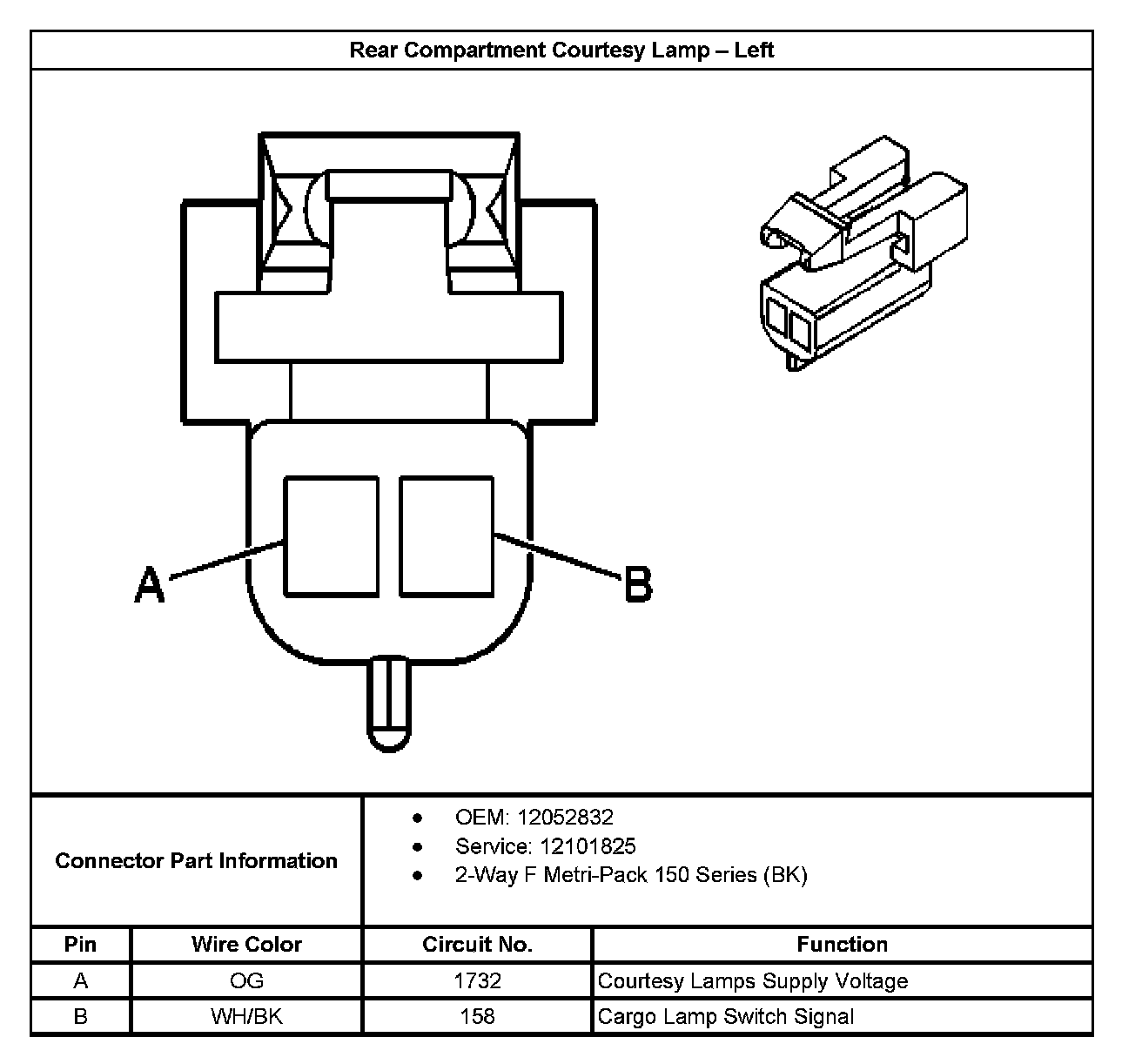

Rear Compartment Courtesy Lamp - Left:
