Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Position Sensor / Switch
>>
Luggage Barrier Switch ( With RPO Code CM7)
Luggage Barrier Switch ( With RPO Code CM7)

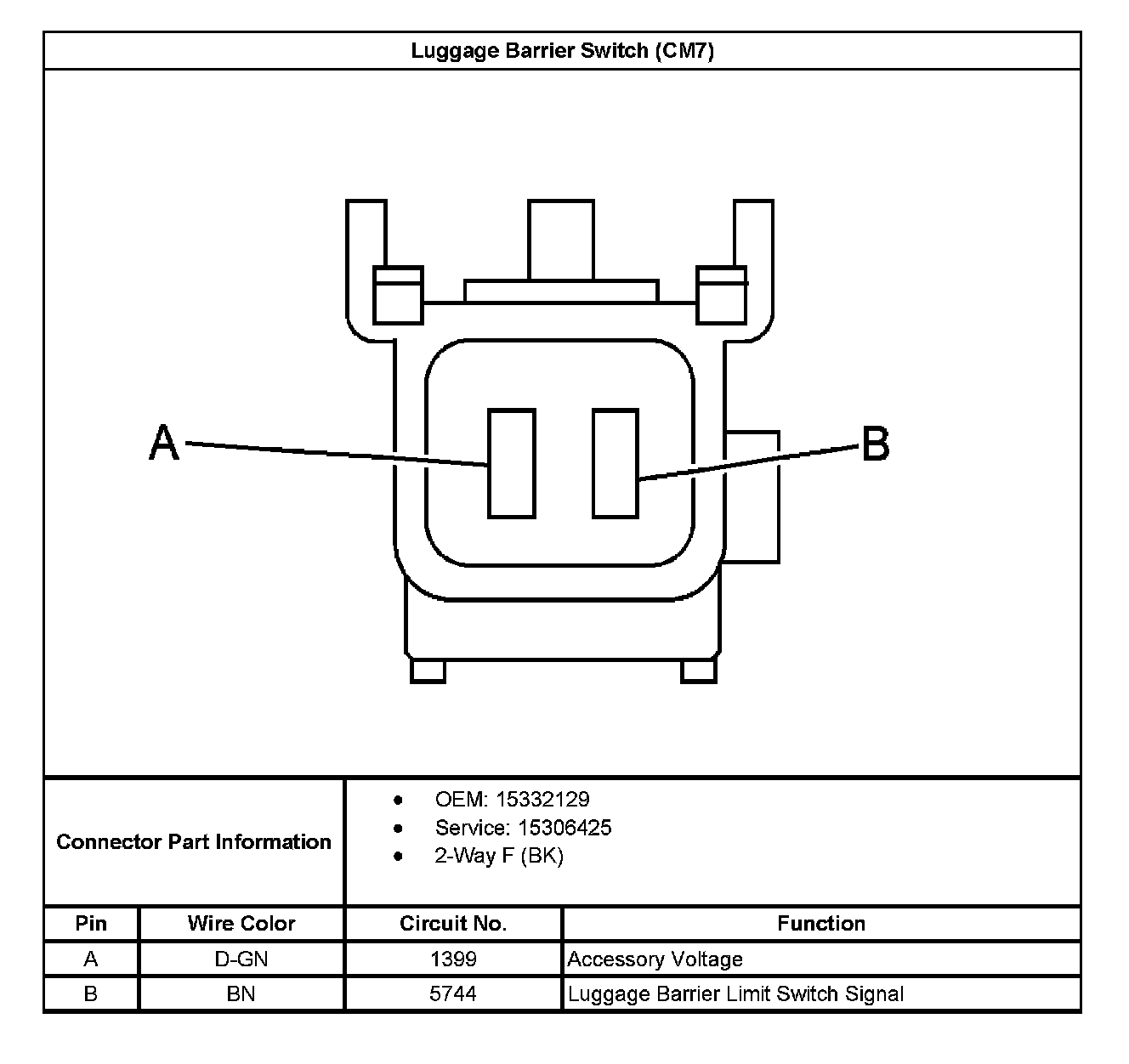

Luggage Barrier Switch (With RPO Code CM7):
