Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Deck Lid Latch Actuator
Convertible Top Deck Lid Latch Actuator

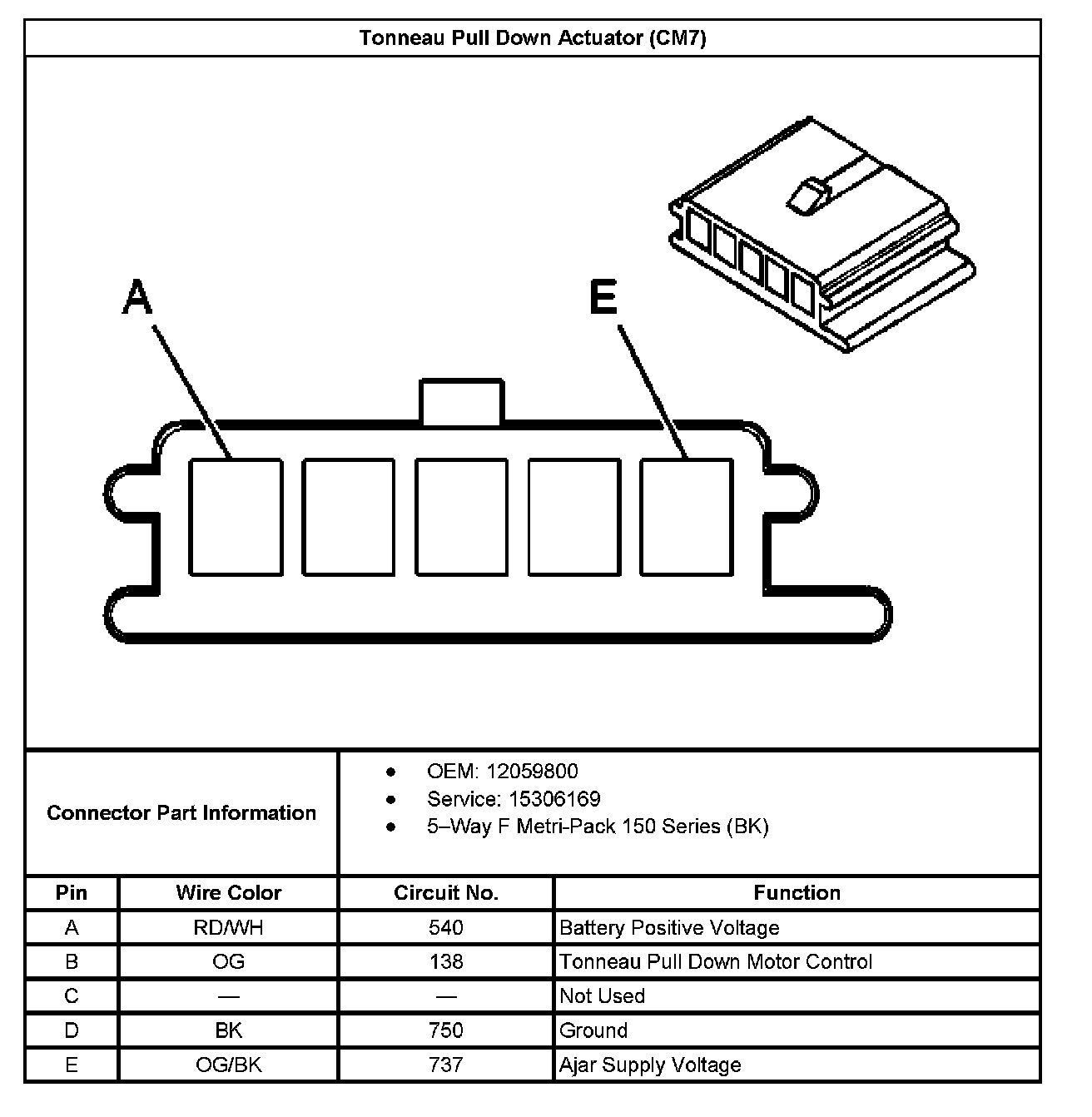

Tonneau Pull Down Actuator (With RPO Code CM7):
