C231
C231

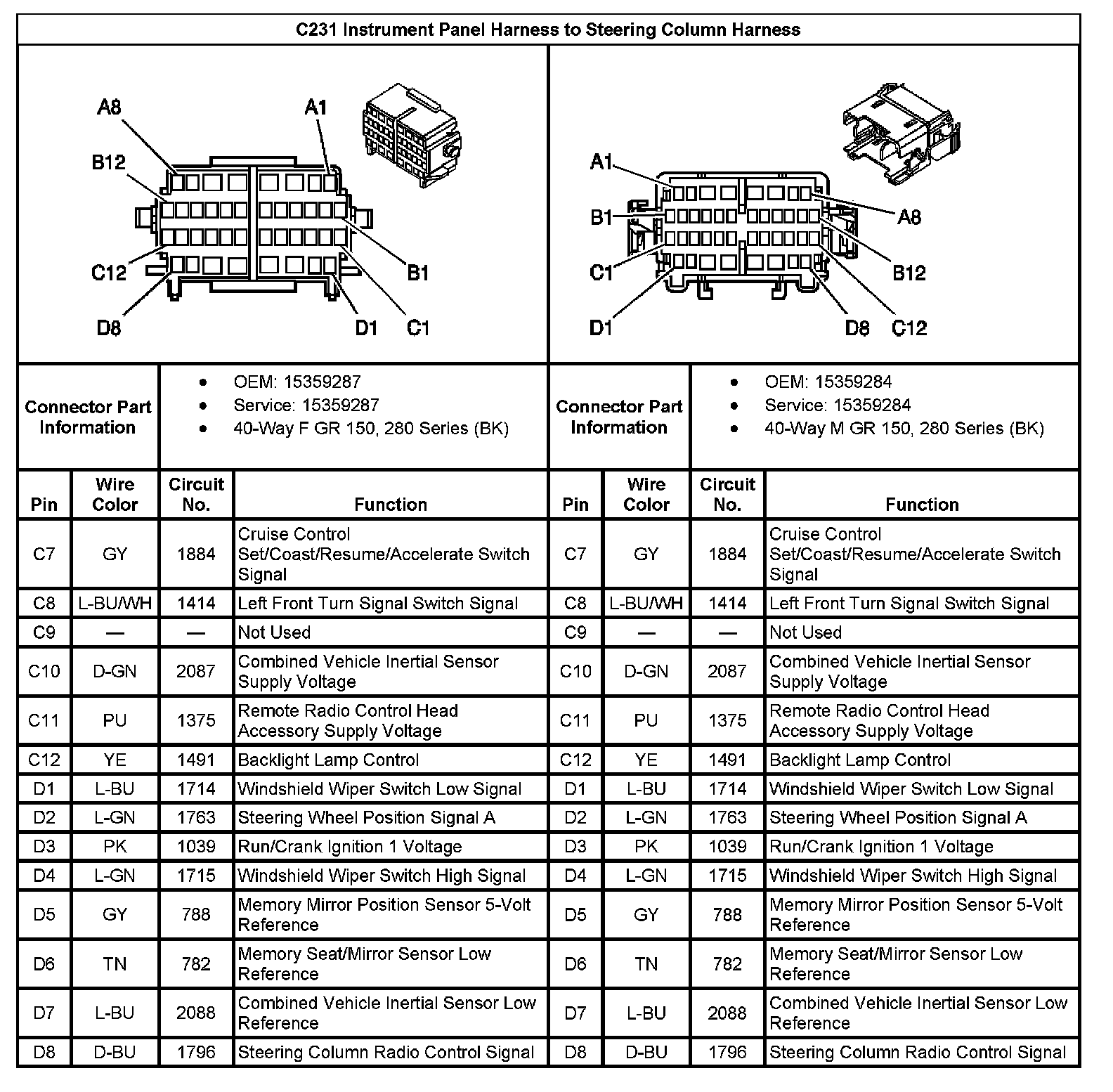

C231 Instrument Panel Harness To Steering Column Harness Part 1:

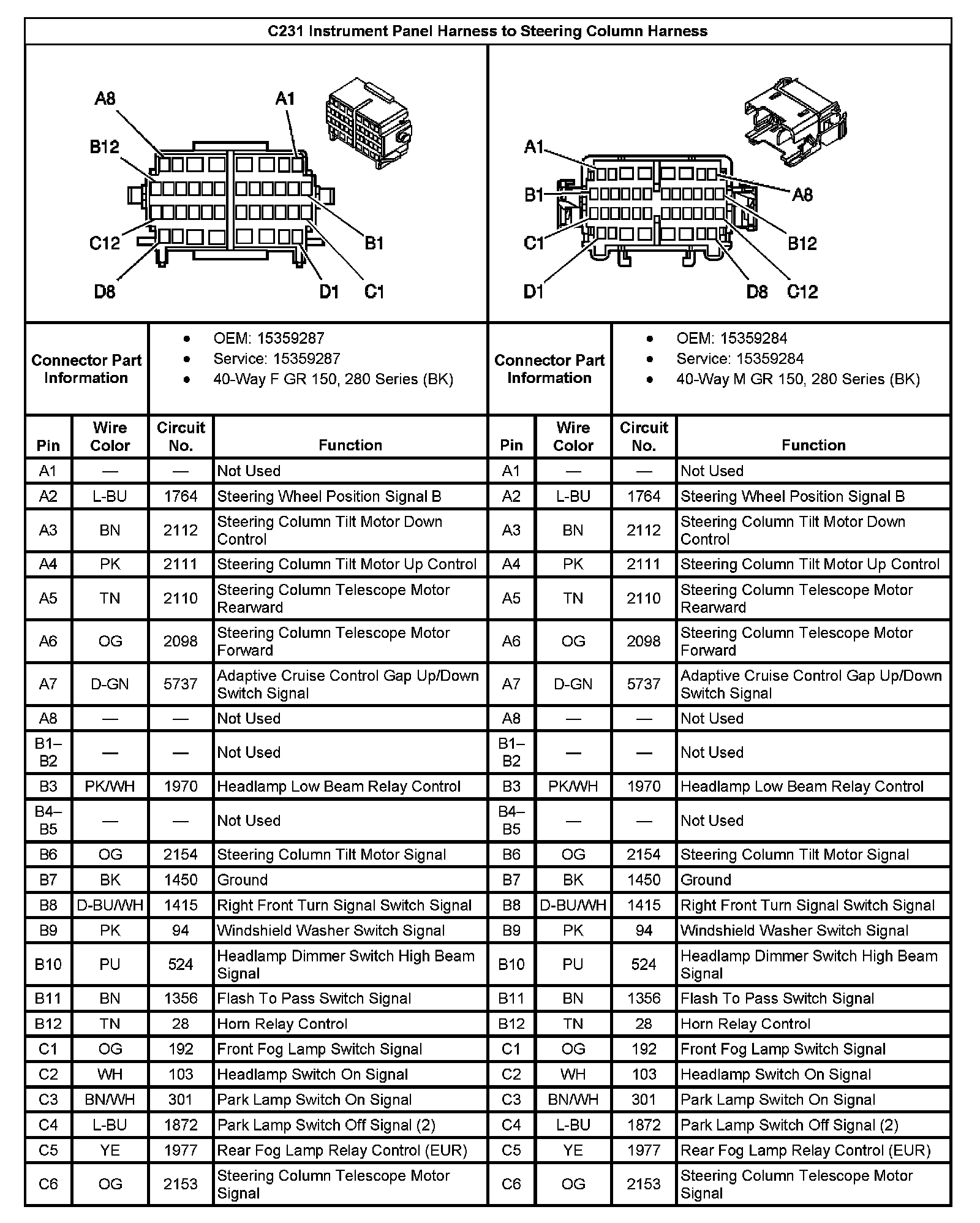

C231 Instrument Panel Harness To Steering Column Harness Part 2:
