C184
C184

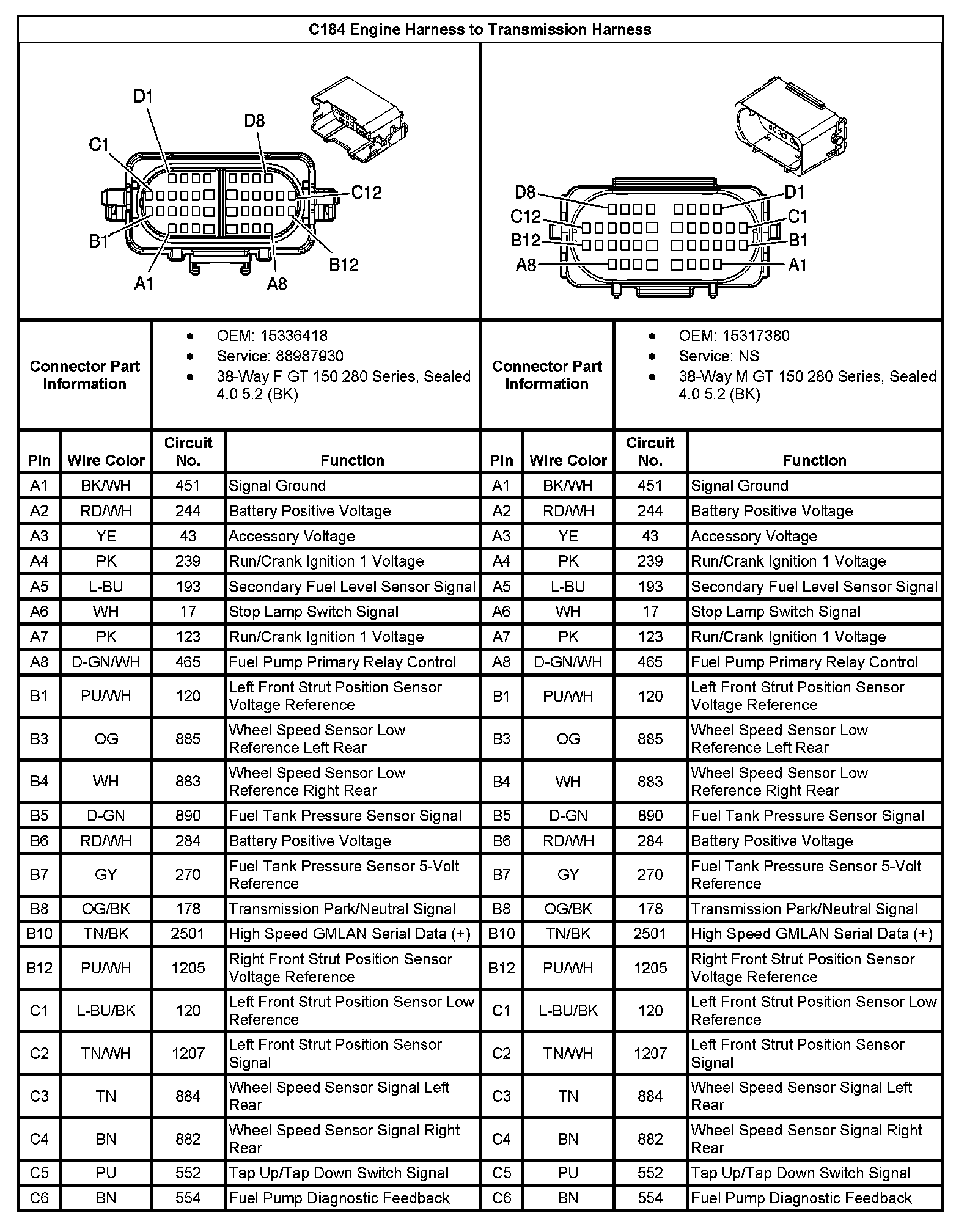

C184 Engine Harness To Transmission Harness Part 1:

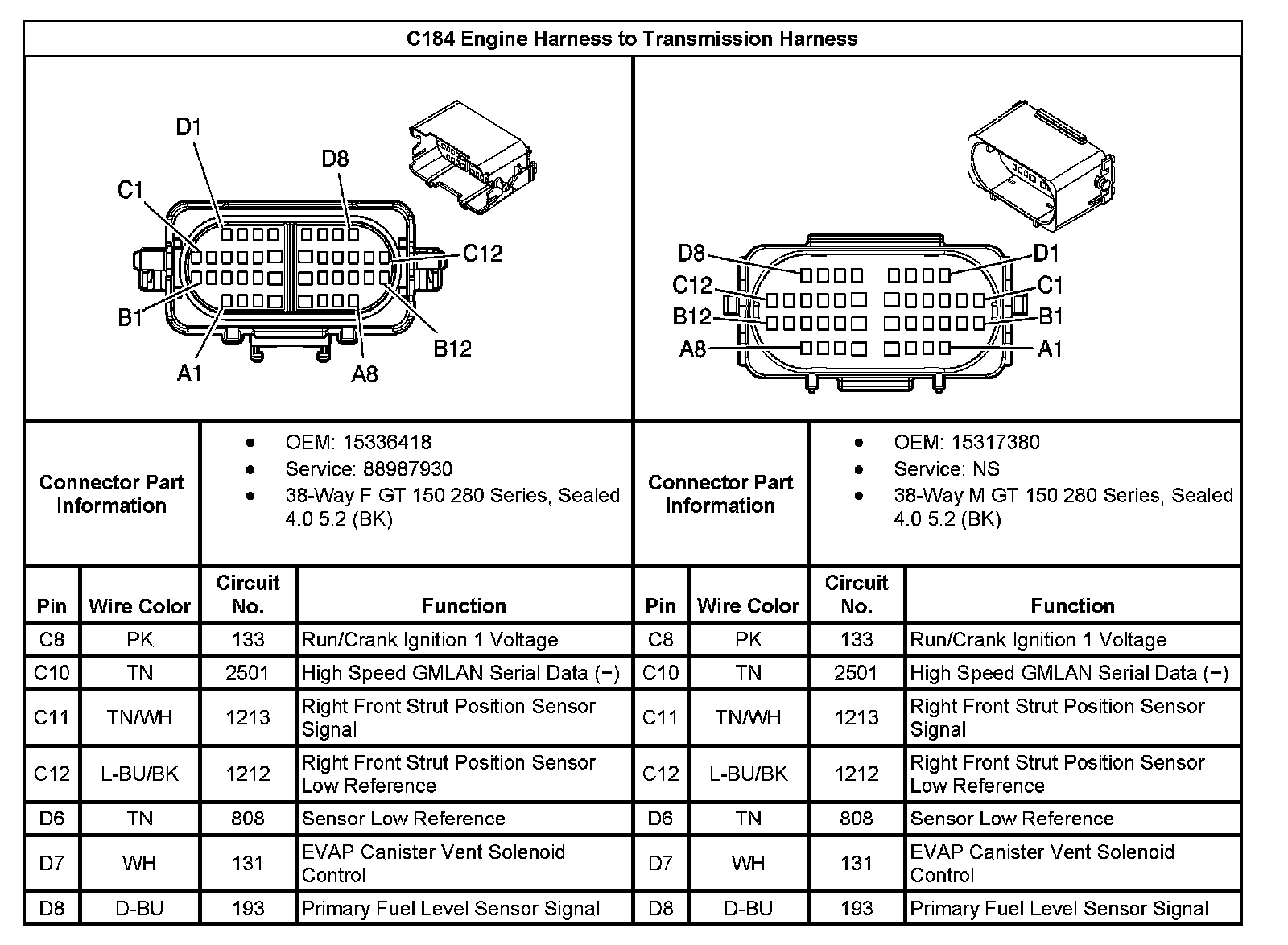

C184 Engine Harness To Transmission Harness Part 2:
