Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C131
C131

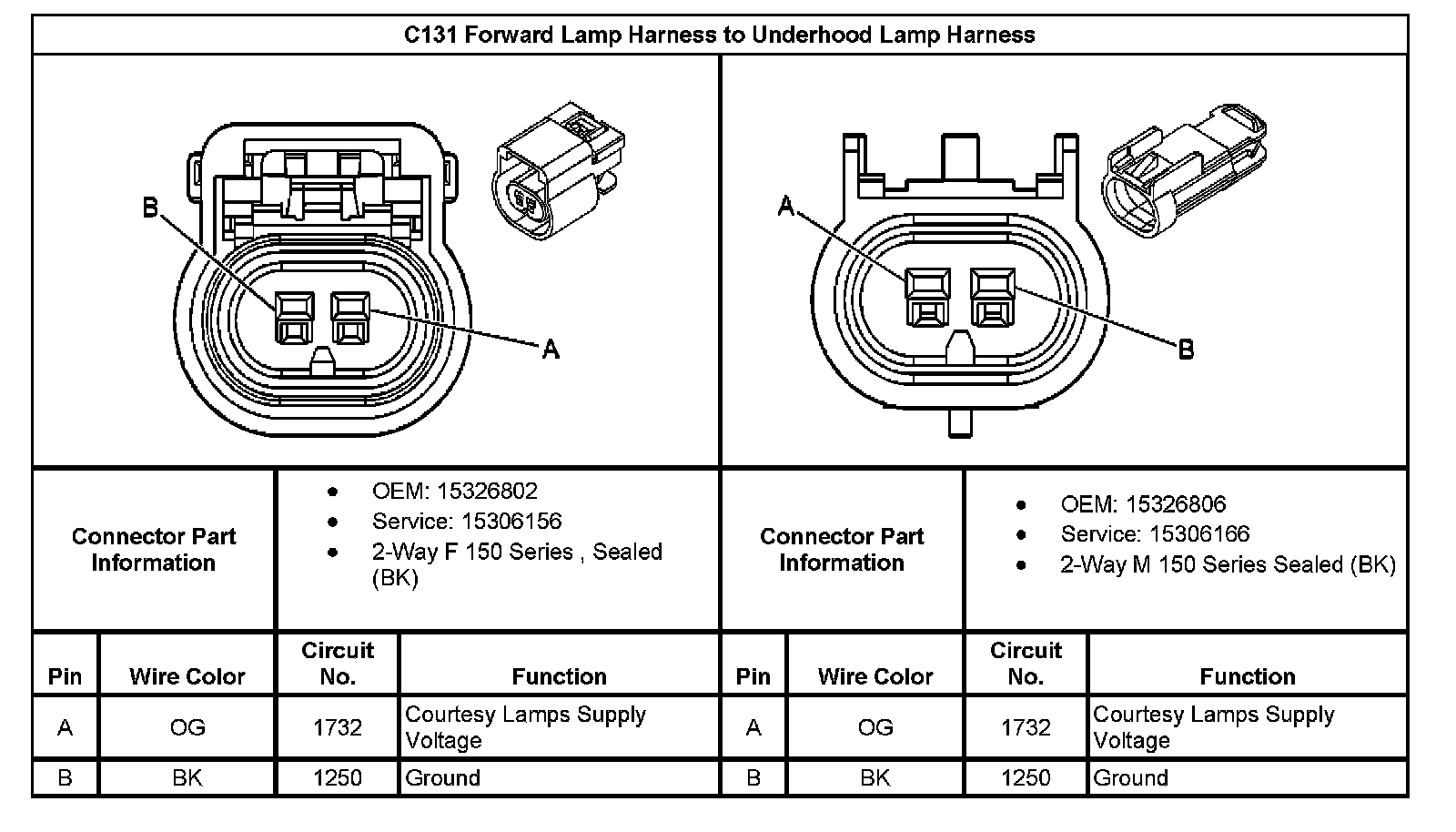

C131 Forward Lamp Harness To Underhood Lamp Harness:
