Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C122
C122

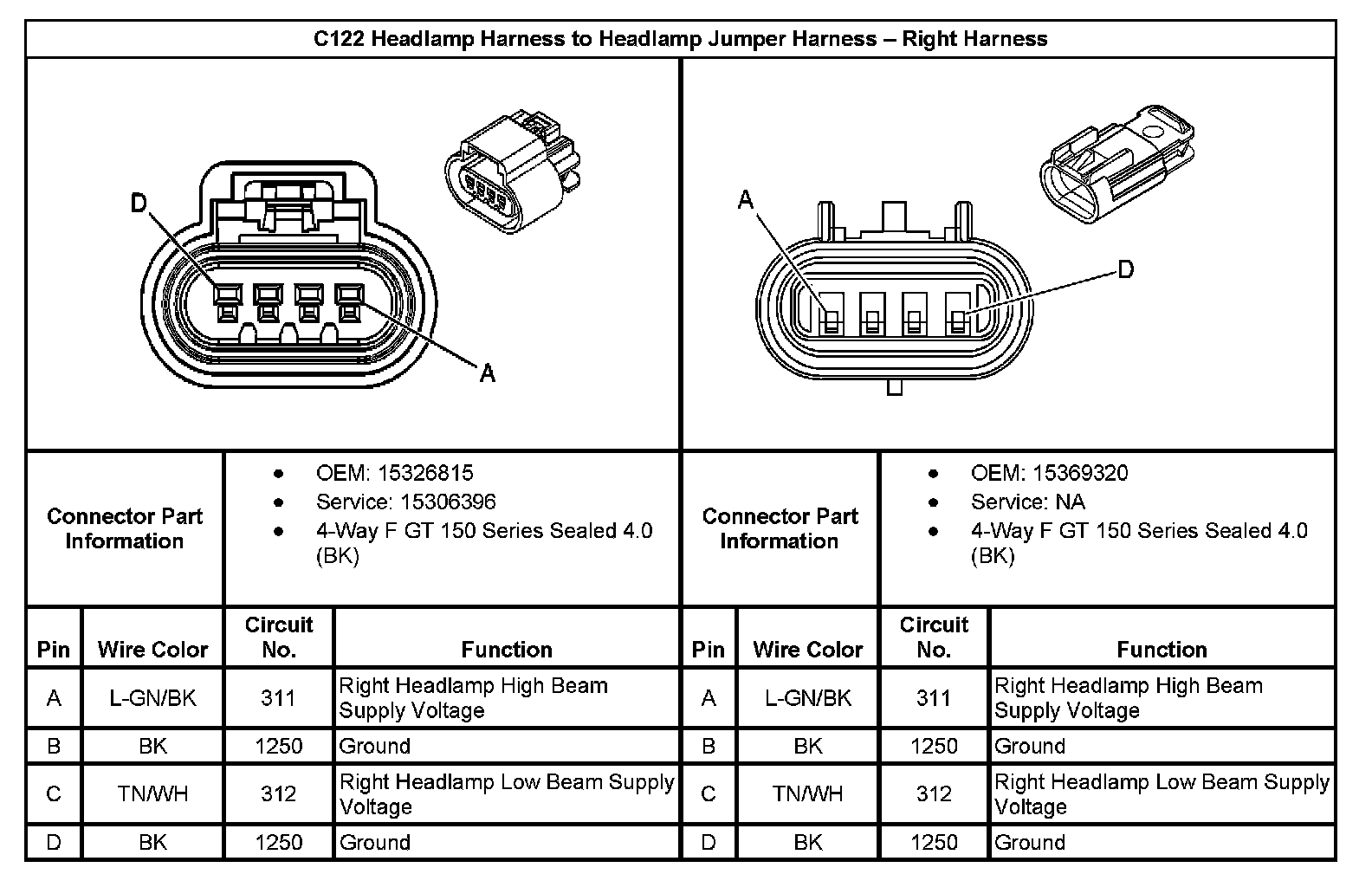

C122 Headlamp Harness To Headlamp Jumper Harness - Right Harness:
