Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C121
C121

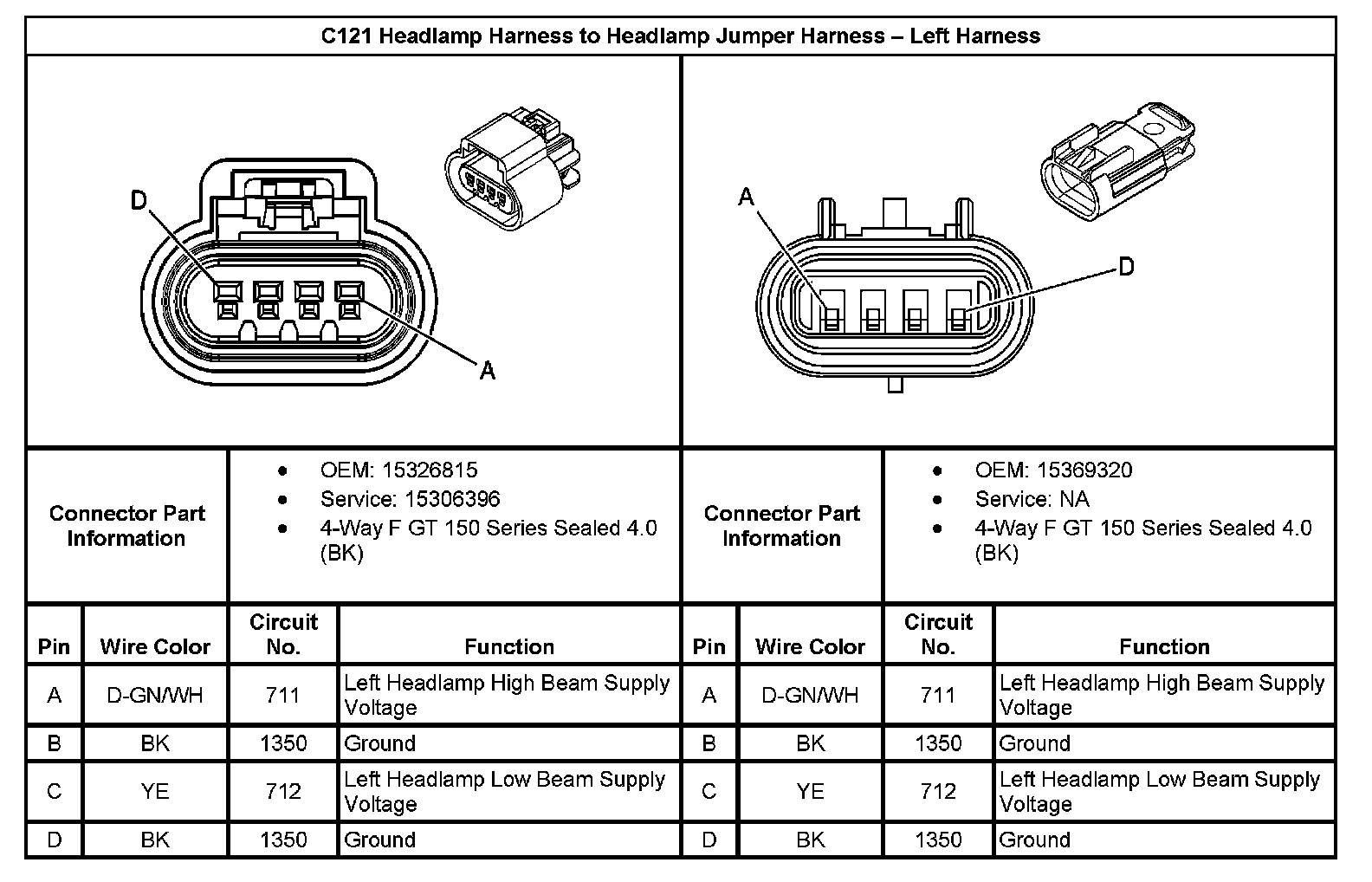

C121 Headlamp Harness To Headlamp Jumper Harness - Left Harness:
