C120
C120

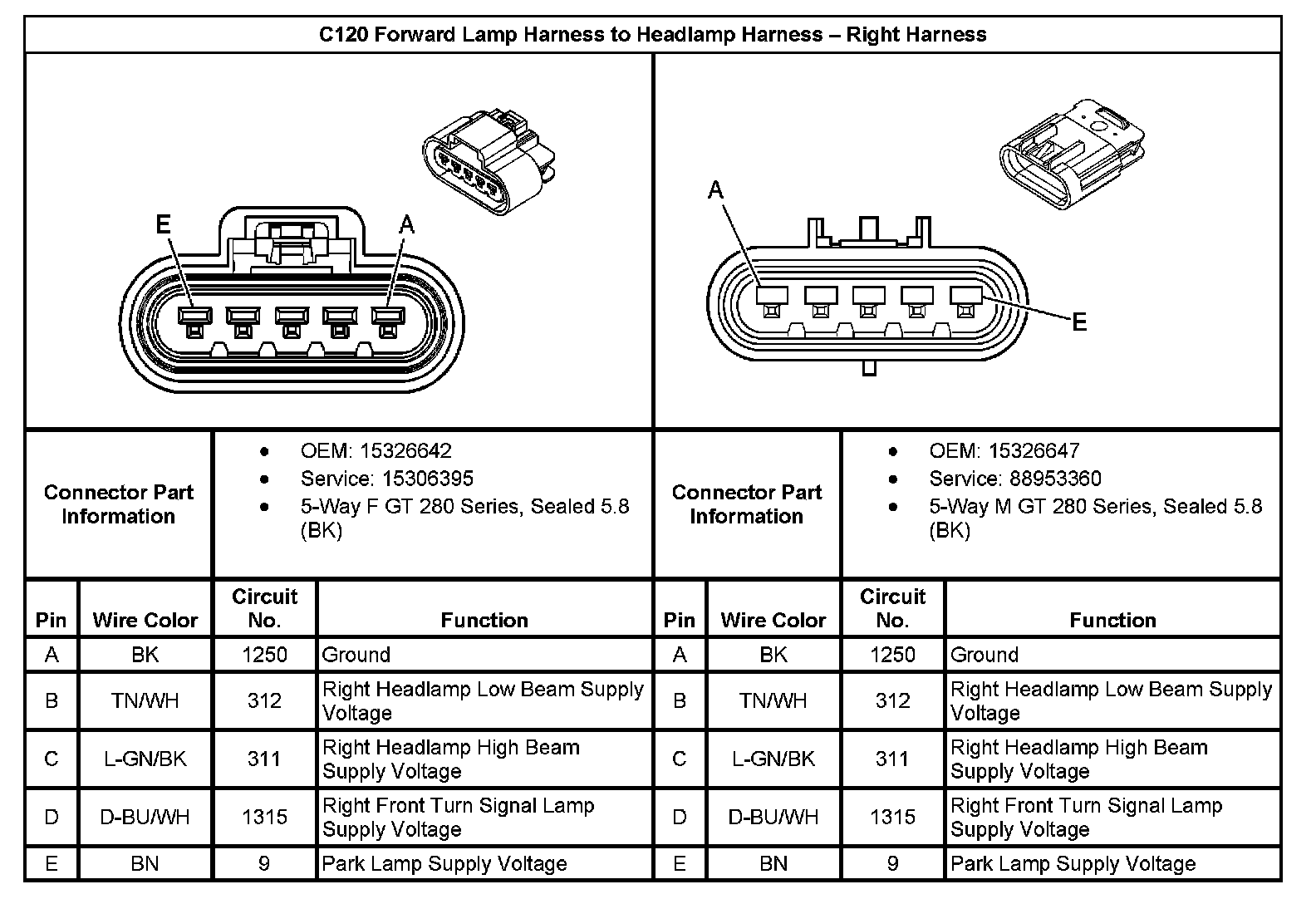

C120 Forward Lamp Harness To Headlamp Harness - Right Harness:

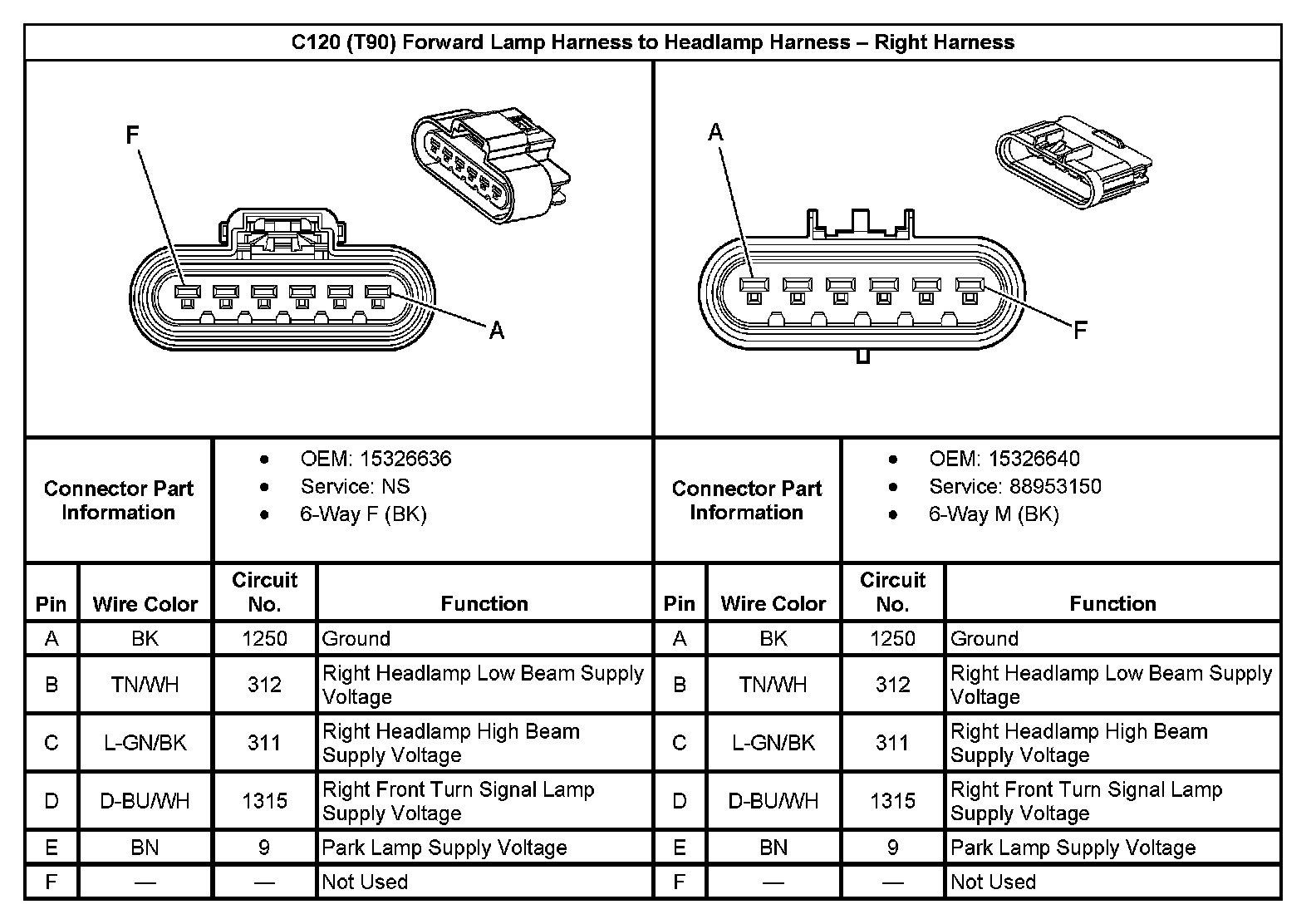

C120 (With RPO Code T90) Forward Lamp Harness To Headlamp Harness - Right Harness:
