C119
C119

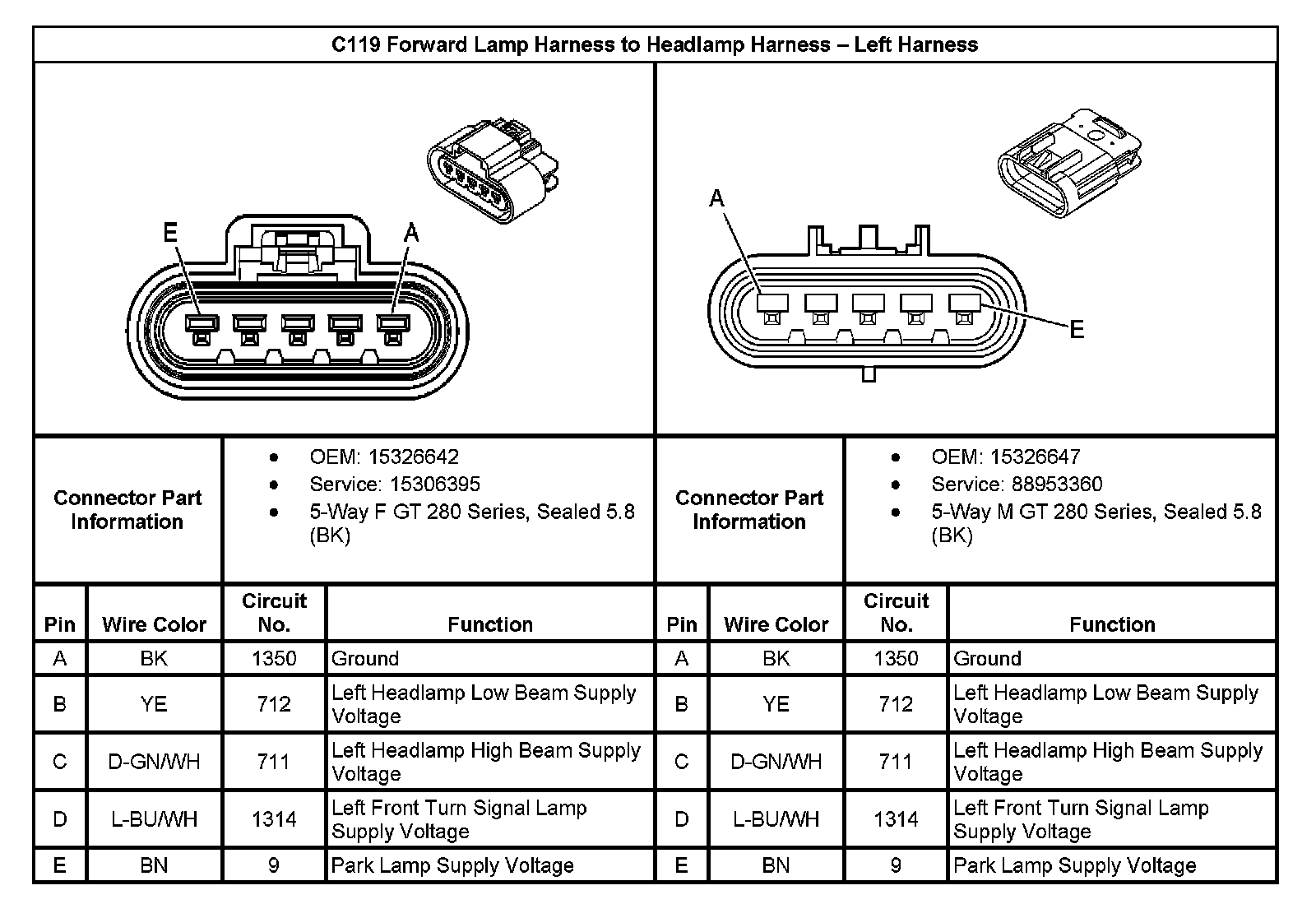

C119 Forward Lamp Harness To Headlamp Harness - Left Harness:

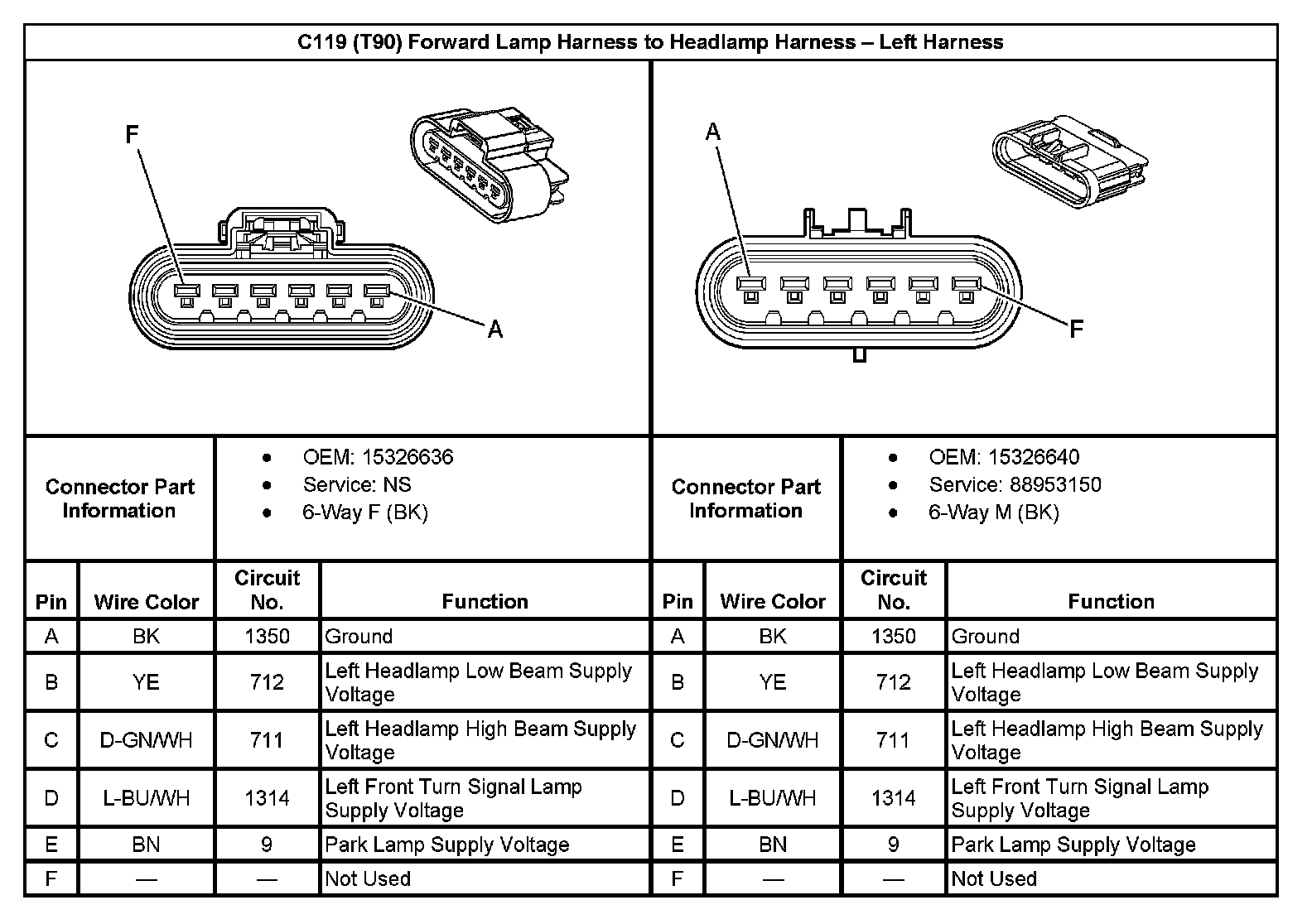

C119 (With RPO Code T90) Forward Lamp Harness To Headlamp Harness - Left Harness:
