Air Door Actuator / Motor, HVAC

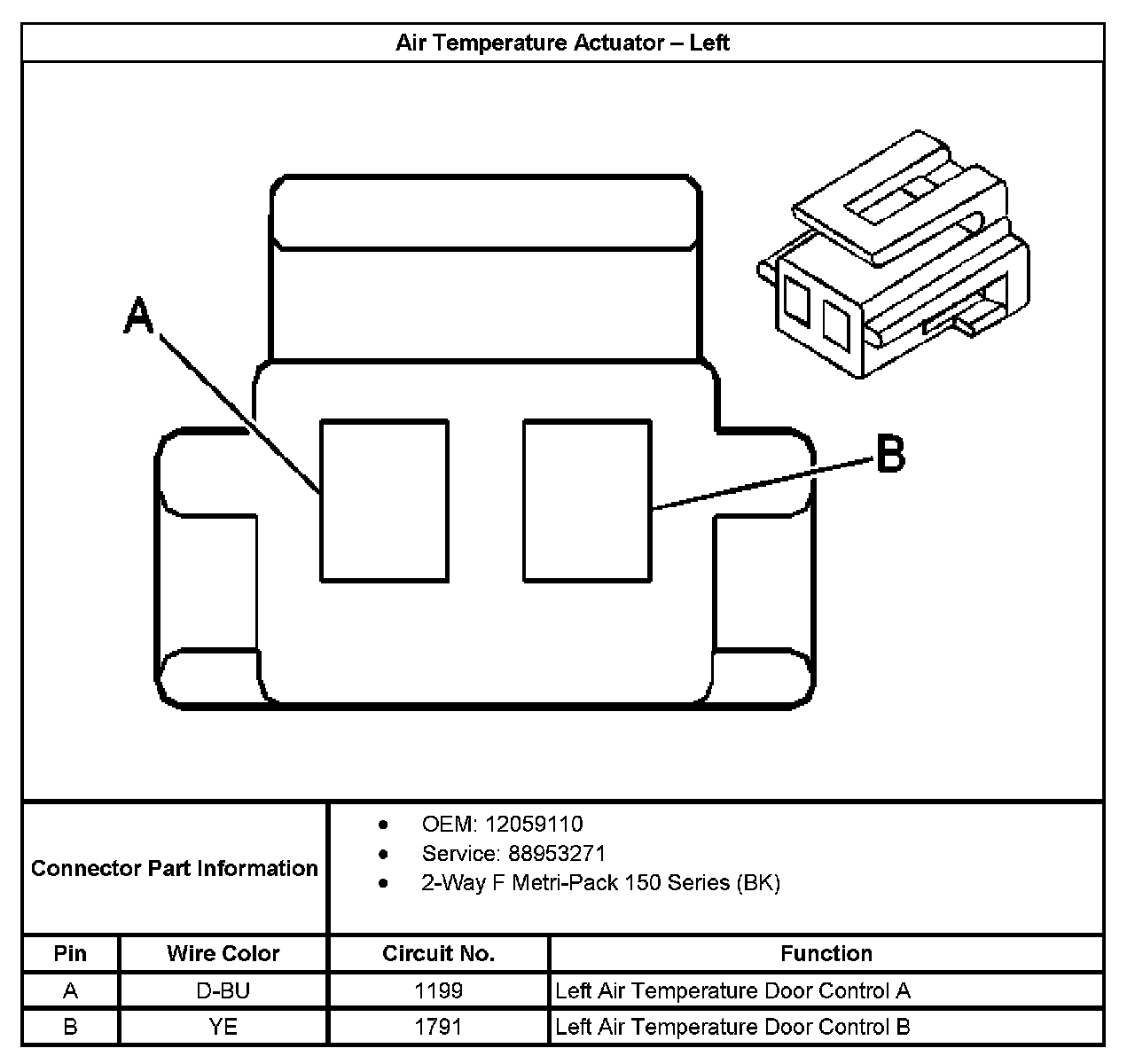

Air Temperature Actuator-Left:

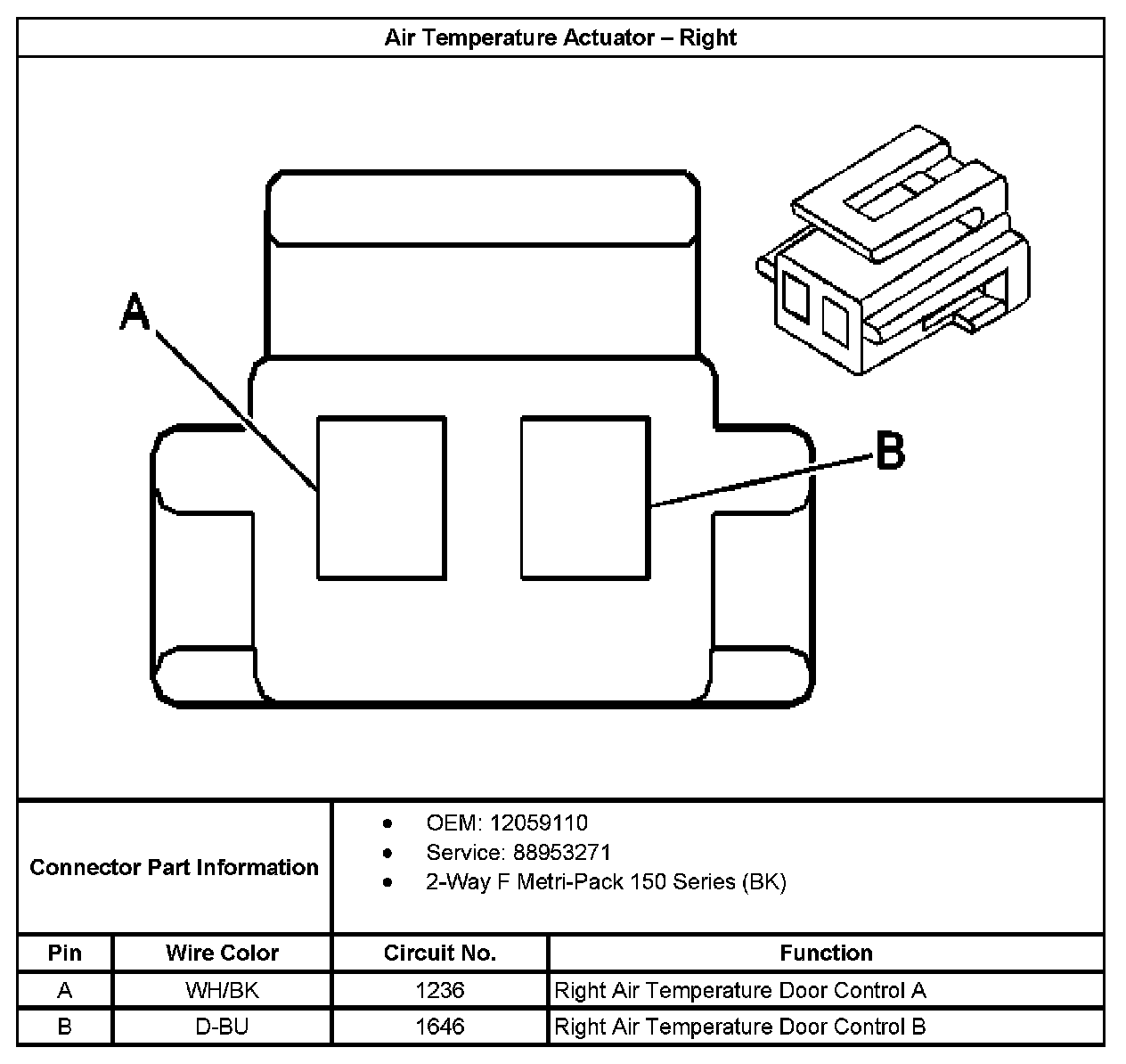

Air Temperature Actuator-Right:

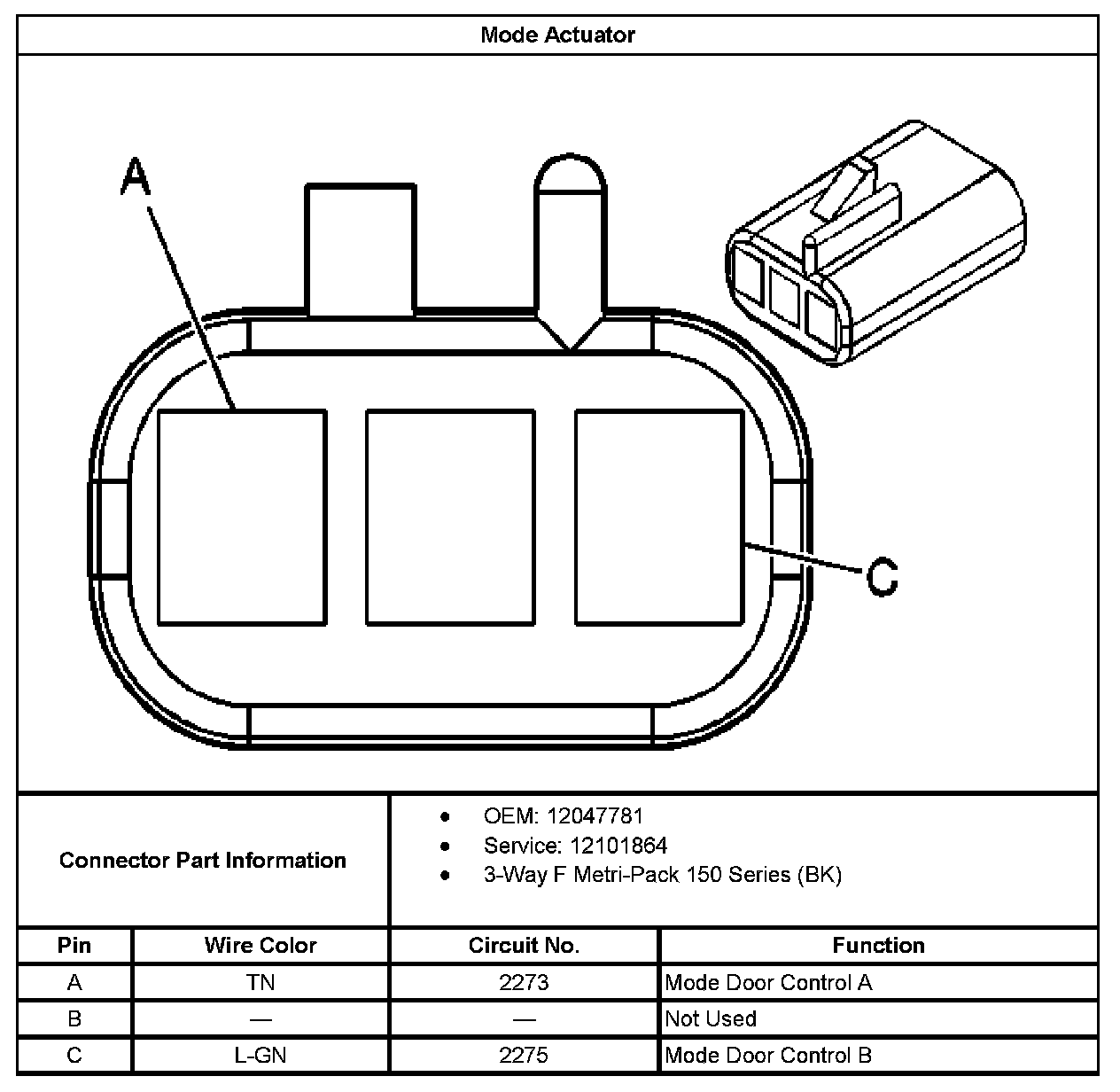

Mode Actuator:



Recirculation Actuator:
