Body - Rear Hatch Inoperative With Key
Bulletin No.: 05-08-66-001Date: February 01, 2005
TECHNICAL
Subject:
Rear Hatch Inoperative With Key (Reroute Cable)
Models:
2005 Chevrolet Corvette (Coupe Only)
Built Prior to VIN Breakpoint 55111710
Condition
Some customers may comment that the key will not unlock the hatch when using the manual/key rear hatch unlock procedure.
Cause
This condition may be caused by the cable coming loose from the locking mechanism.
Correction
Reroute the cable.
1. Remove the four plastic retaining hardware that holds the rear panel carpet trim in place.
2. Remove the rear carpet trim.

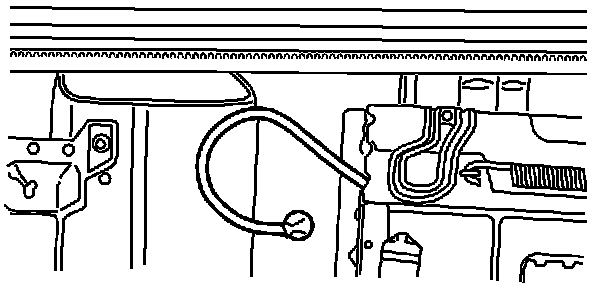

3. Pull the additional cable into the vehicle through the rubber grommet and provide an approximate 3 inch (76.2 mm) loop.
4. Reattach the cable to the lock mechanism.
5. Place a piece of duct tape over the cable loop to hold it tight against the rear panel.
6. Install the rear carpet trim.
7. Install the four plastic retainers.
Warranty Information
For vehicles repaired under warranty, use the table.
