Lumbar Support Inoperative



LUMBAR SUPPORT INOPERATIVE

DIAGNOSTIC AIDS
The lumbar pump and control module are separate units that are attached to each other by a wire harness and a hose. They are serviced as an assembly.

TEST

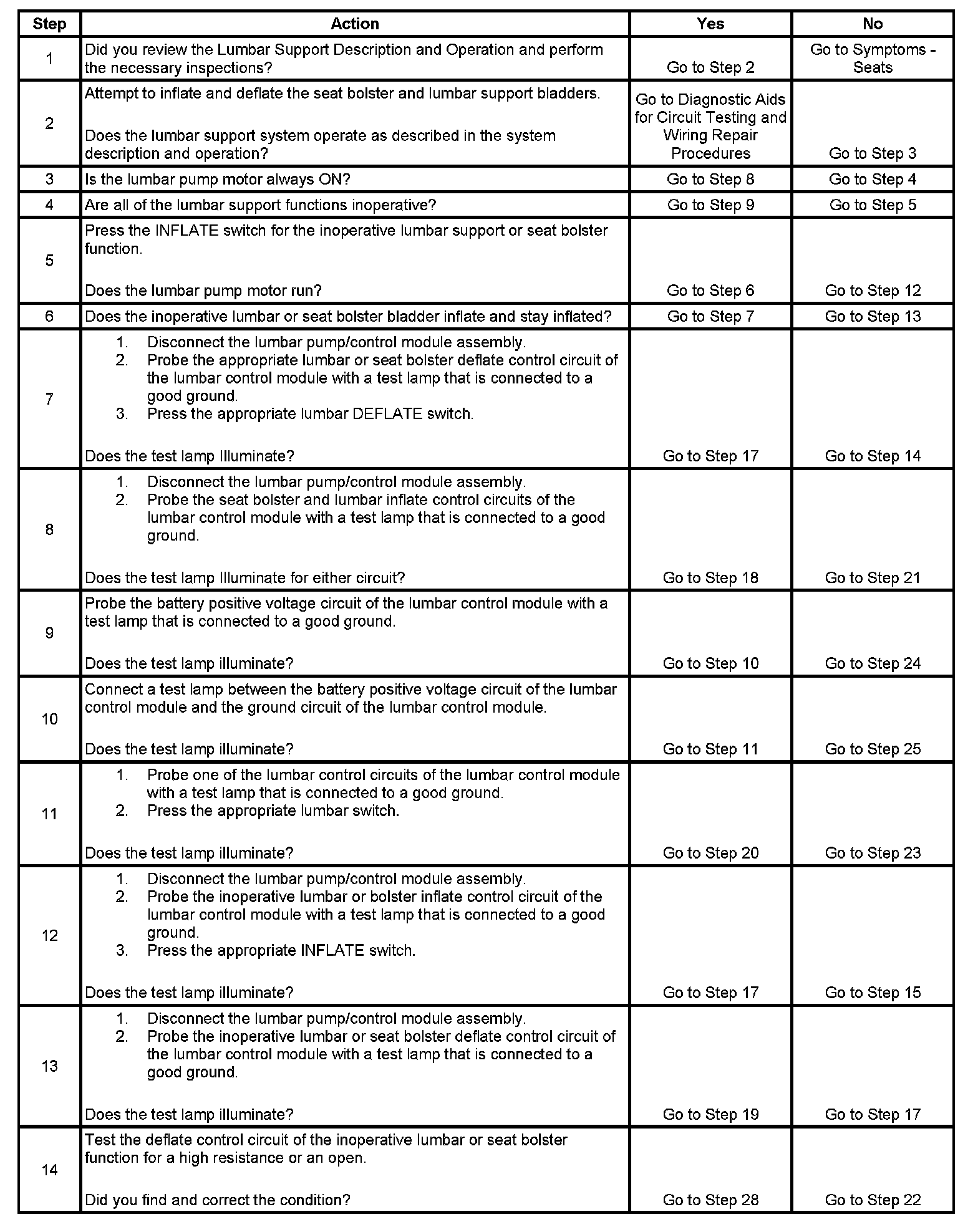

Steps 1 - 14:

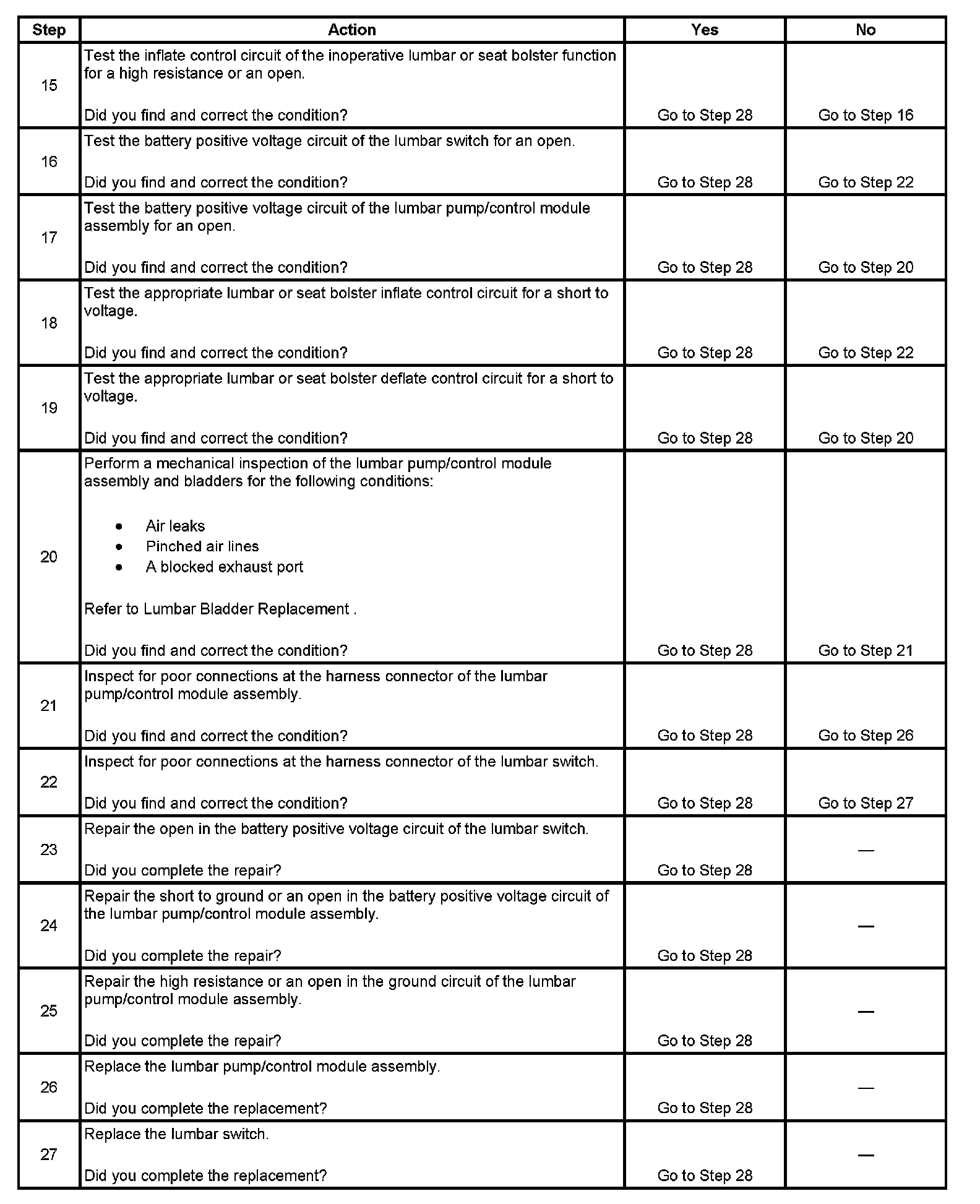

Steps 15 - 27:

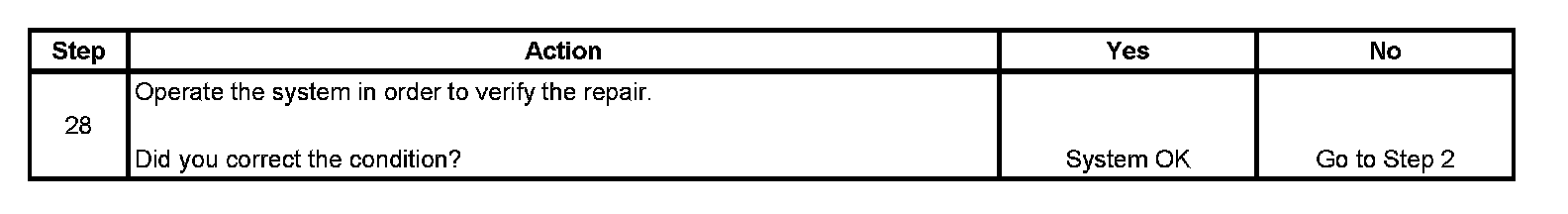

Step 28:
