Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heated Seat Inoperative

Heated Seat Inoperative

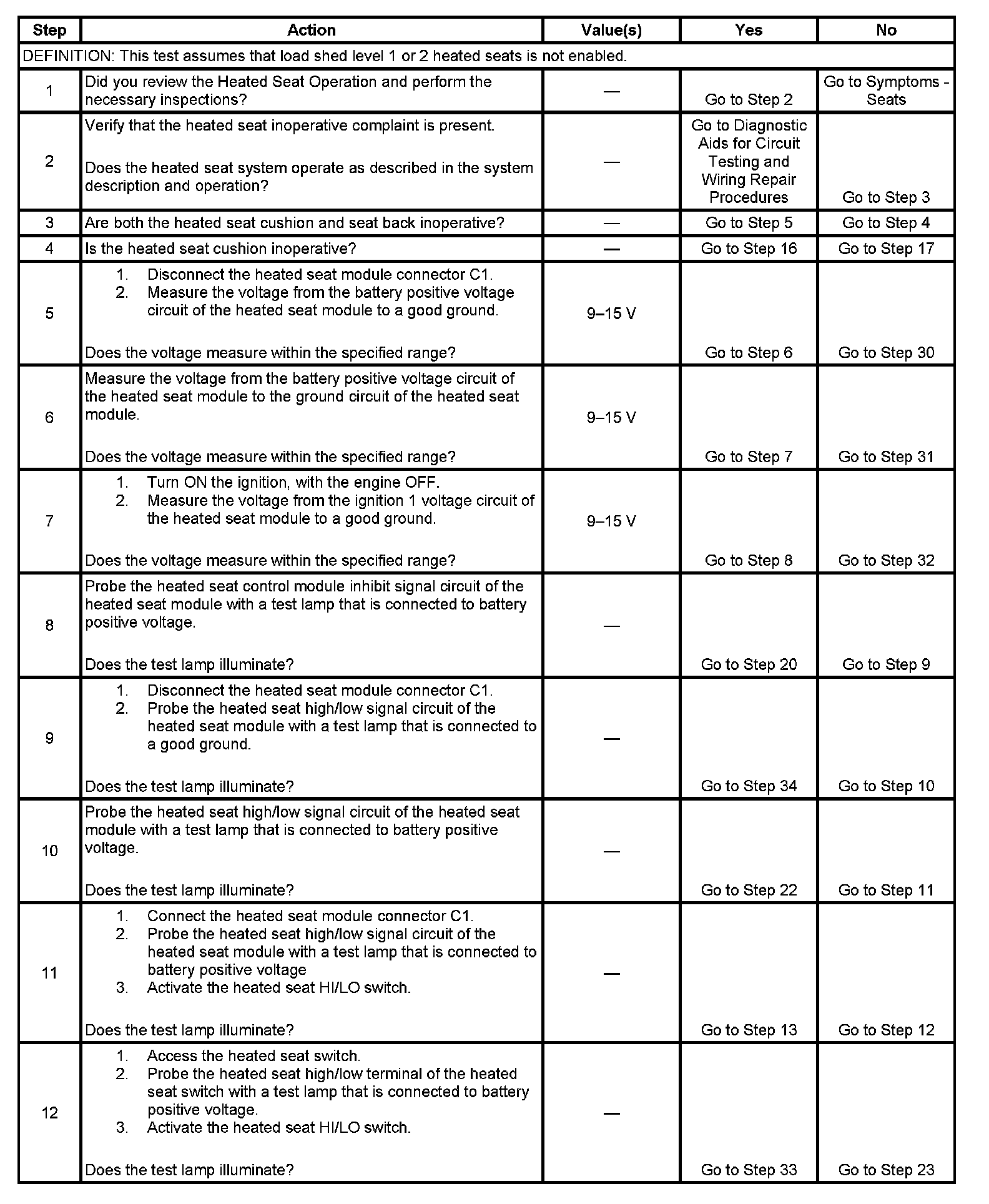

Steps 1 - 12:

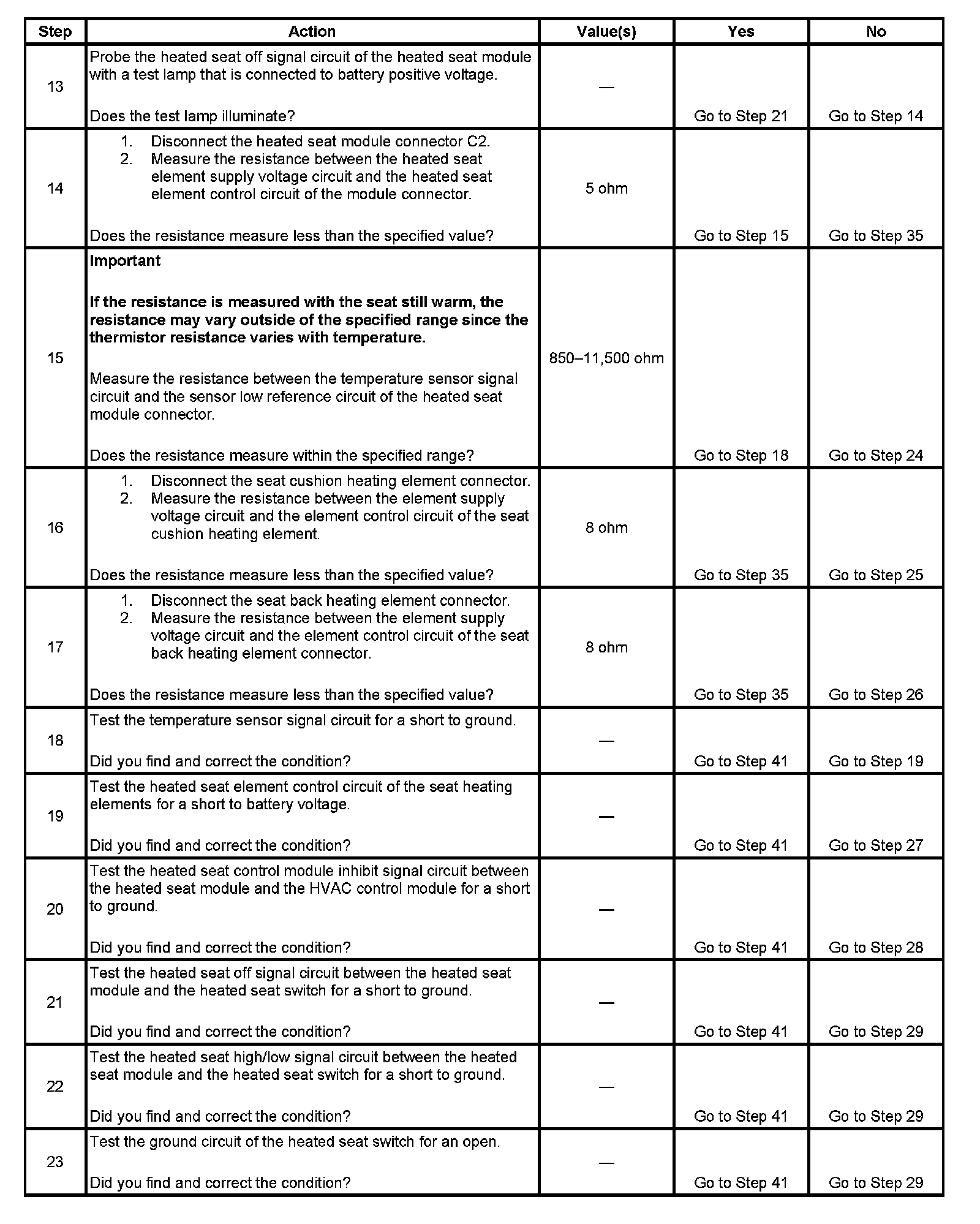

Steps 13 - 23:

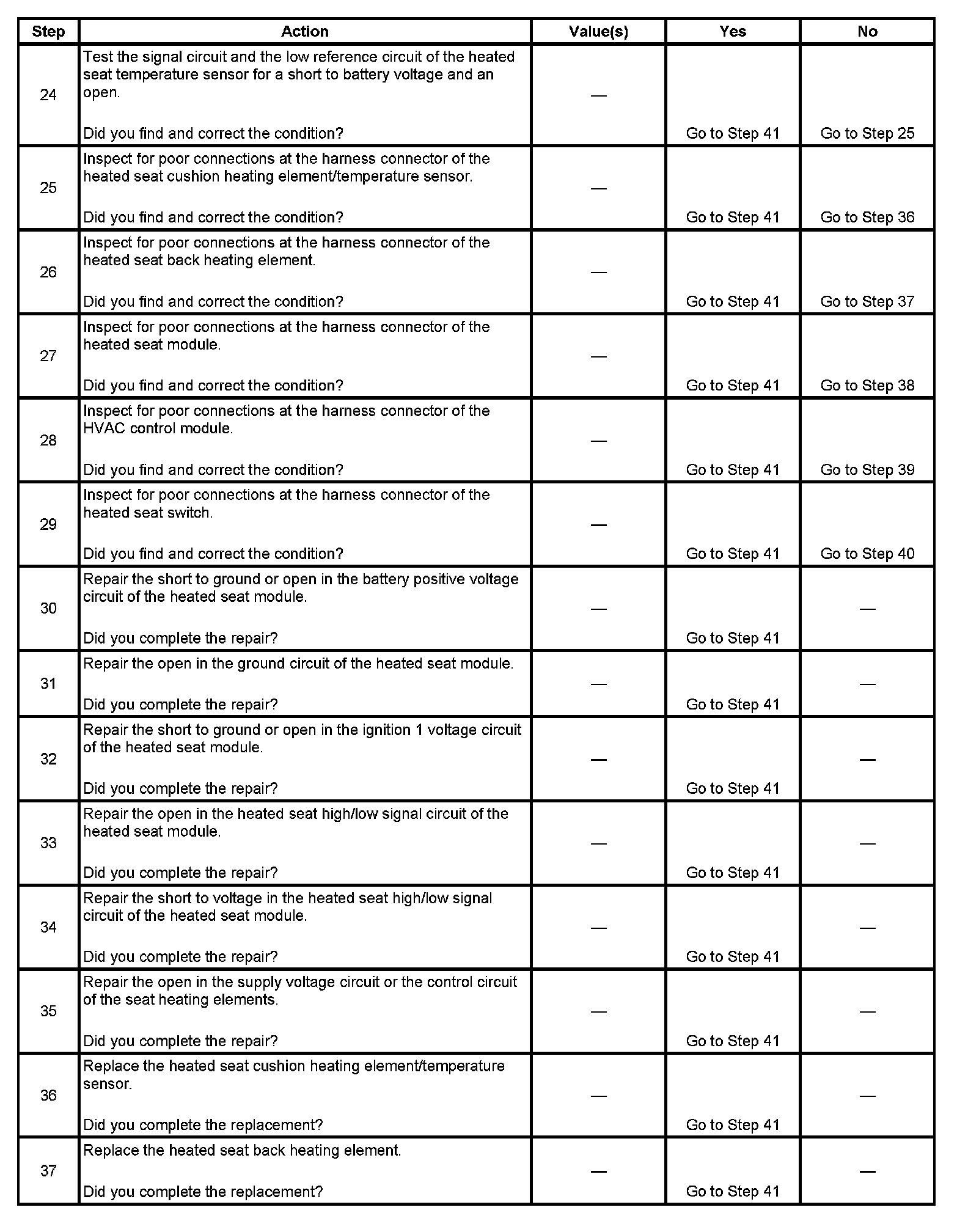

Steps 24 - 37:

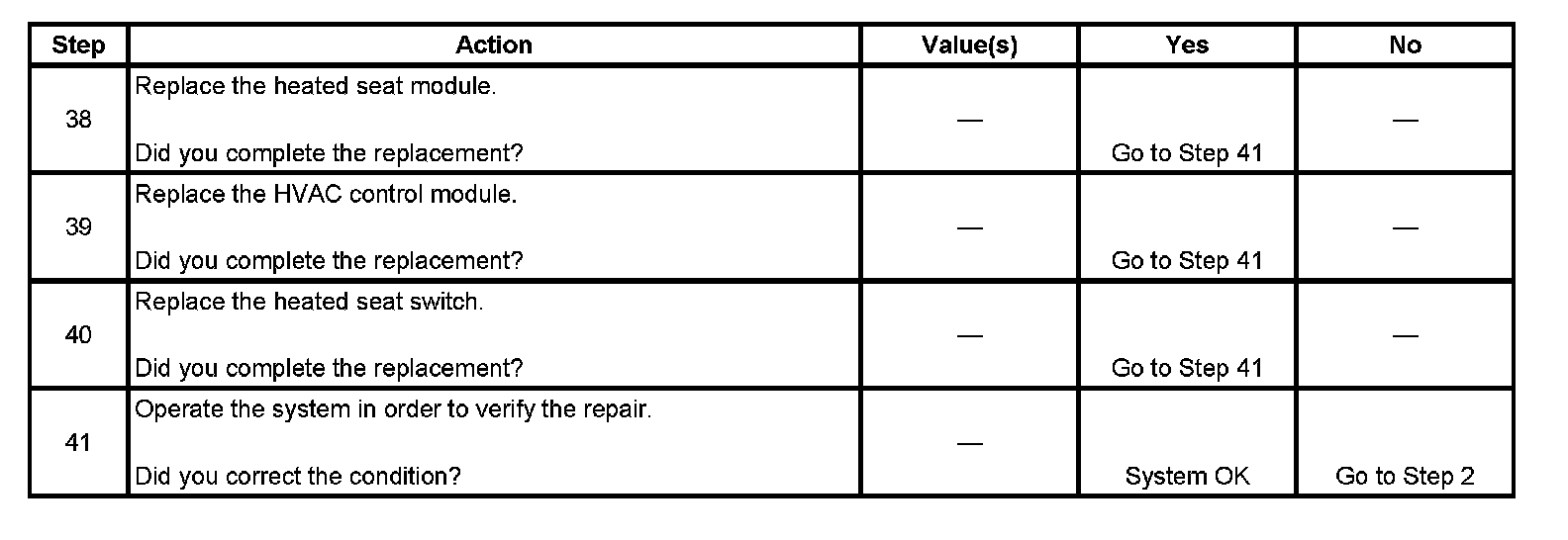

Steps 38 - 41:
