Seat Adjuster Replacement - Front

Seat Adjuster Replacement - Front

Removal Procedure

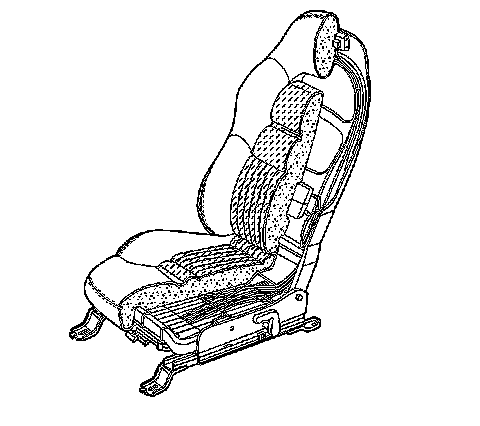

1. Remove the seat.
2. Remove the seat belt pretensioner and buckle.
3. Remove the seat cushion cover and foam.




4. For non-power seats, remove the adjuster adjustment bar.




5. Reposition the lumbar pump, if equipped.
6. Remove the tie straps and reposition the pump and pouch up through the seat support wires.
7. Remove the seat belt harness from the left seat frame.
8. Remove the memory seat control module, if equipped.

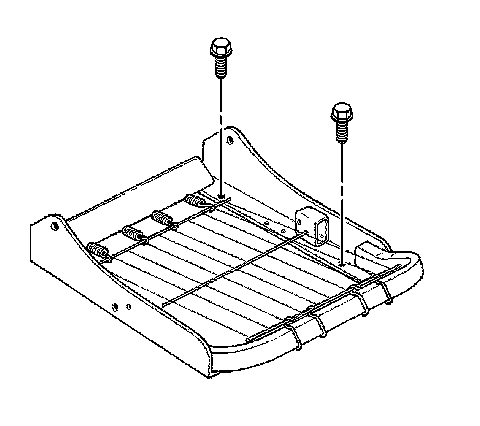

9. Remove the fasteners mounting the seat to the adjuster.
10. Remove the adjuster.
11. Transfer the parts as necessary.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the adjuster to the seat. Tighten the fasteners to the seat.

Tighten the adjuster fasteners to 24 N.m (18 lb ft).




2. For non-power seats, align the adjusters with their locking pawls engaged in the same slots side to side.
3. Install the seat adjuster adjustment bar.




4. Install the lumbar pump, if equipped.
Tie strap the pump to the torque tube.
5. Connect the seat belt harness to the left seat.




6. Install the memory seat control module to the seat spring wire, if equipped.




7. Install the seat belt pretensioner and buckle.
8. Install the seat cushion foam and cover.
9. Install the seat.
