Seat Cushion Frame Replacement

SEAT CUSHION FRAME REPLACEMENT

REMOVAL PROCEDURE




1. Remove the seat.
2. Remove the pretensioner and seat belt buckle.

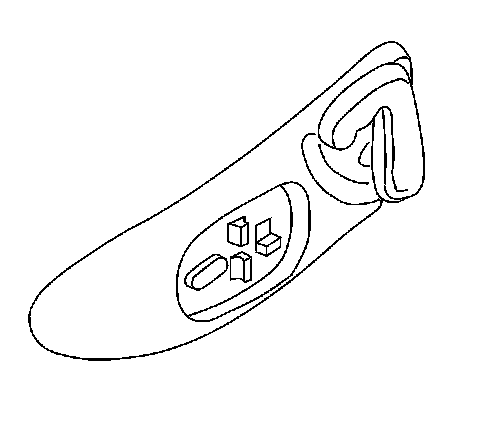

3. Remove the side trim panel.




4. Remove the lumbar pump and module and pull them up through the seat frame and lay them aside still attached to the seat back.
5. Remove the memory seat module from the seat wires if equipped with memory seats.
6. Mark the seat back actuators to identify the right side from the left side.
7. Note the routing of the recliner mechanism cables.
8. Position the seat back full up to remove the tension from the actuator springs.
9. Remove the forward pins from the seat back actuators.




10. Remove the hinge bolts.
11. Remove the seat back.
12. Reposition the actuators underneath the seat frame springs.




13. Remove the seat cushion frame from the seat adjuster.
14. Remove the recliner mechanism from the seat cushion frame.




15. Remove the wire assembly from the seat cushion frame (if replacing or transferring the wire assembly).
1. Insert a screwdriver between the tension spring coils and pull toward the wires unhook the tension spring from the wire assembly.
2. Unhook the wire assembly from the front of the seat cushion frame.

INSTALLATION PROCEDURE




1. Install the springs and wires to the seat cushion frame.
1. Center the wire assembly to the front of the seat cushion frame.
2. Hook the tension springs into the rear of the seat frame.
3. Insert a screwdriver between the tension spring coils, stretch the spring to hook the spring to the wire assembly.




2. Install the recliner mechanism to the seat frame.




3. Install the seat adjuster to the seat cushion frame.
4. Loop and route the reclining mechanism cables under the seat cushion frame springs.
5. Position the actuators with the arrow on the hinge end of the actuator pointing forward and with the release cable clip opening pointed downward.
6. Insert the forward ends of the actuators into the actuator brackets.




7. Install the seat back and the actuator to the seat cushion frame with the hinge bolts.
8. Apply Loctite(TM) 271 to the hinge bolt threads.
9. Install the hinge bolt nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the hinge bolt nuts to 24 N.m (18 lb ft).

10. Install the pins to the forward ends of the actuators.




11. Install the seat module, if equipped.
12. Install the lumbar pump and module, if equipped.
13. Install the memory module, if equipped.
14. Install the trim cover and pad to the seat cushion frame.




15. Install the side trim panel.




16. Install the pretensioner and seat belt buckle.
17. Install the seat.
