Power Folding Top Does Not Open

POWER FOLDING TOP DOES NOT OPEN

DIAGNOSTIC AIDS
Complete the check list, prior to performing the diagnosis:
- Windows are normalized. Refer to Power Windows Description and Operation in Doors.
- Cargo cover installed and secured, closing the luggage barrier limit switch.
- Valet switch is in OFF position, inactive.
- Vehicle is in PARK.
- Press the ignition to ACCY or RUN, with the engine OFF.
- Hydraulic fluid bypass valve in the operating position, turned clockwise, located above the pump motor.
- Operating temperature is normal.

If a repair is made to a signal circuit for a fault to ground, test the component of that circuit for proper operation.

Using the scan tool to access the History parameters for the folding top control (FTC) module, will display the last status of the items listed.

TEST

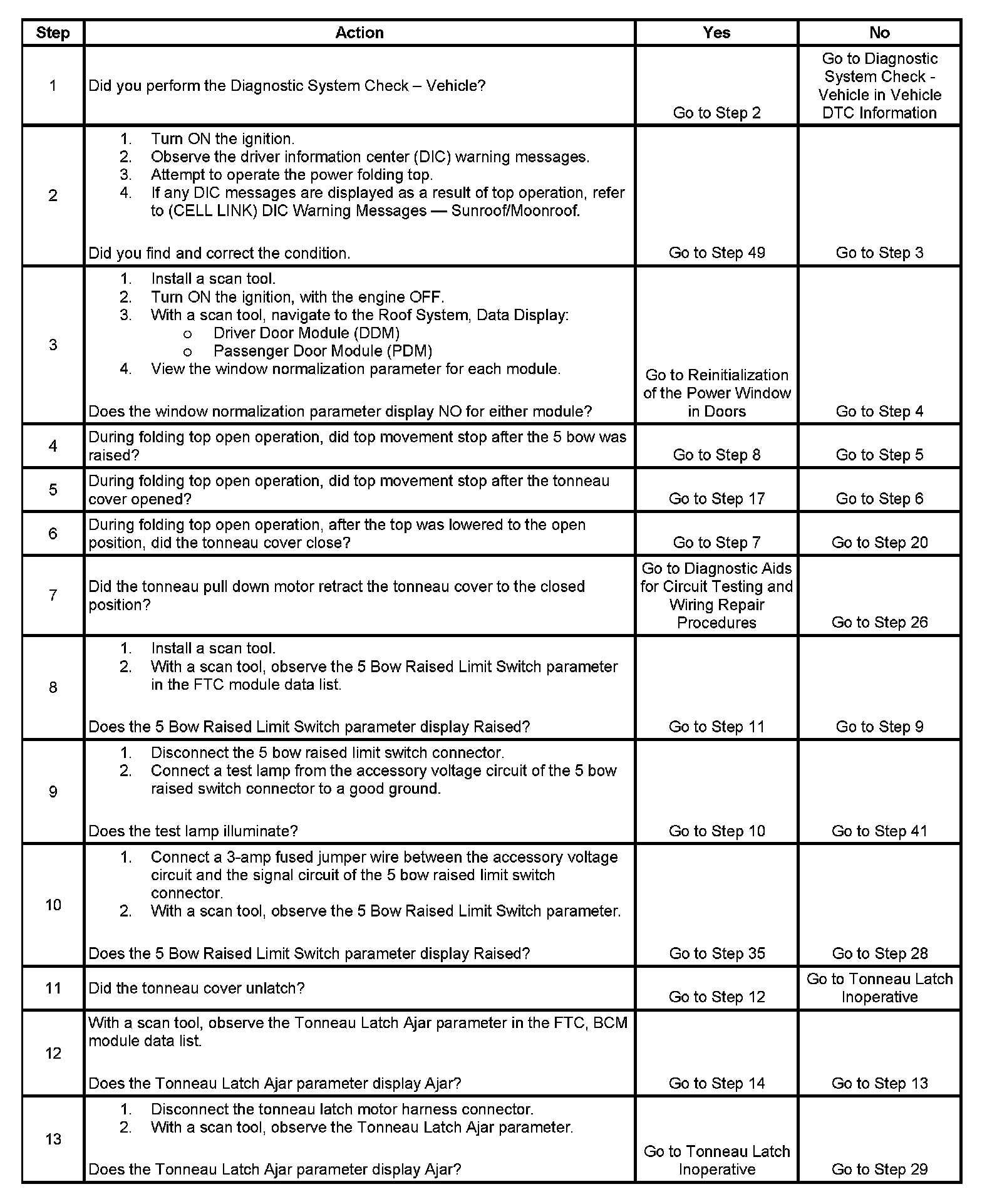

Steps 1 - 13:

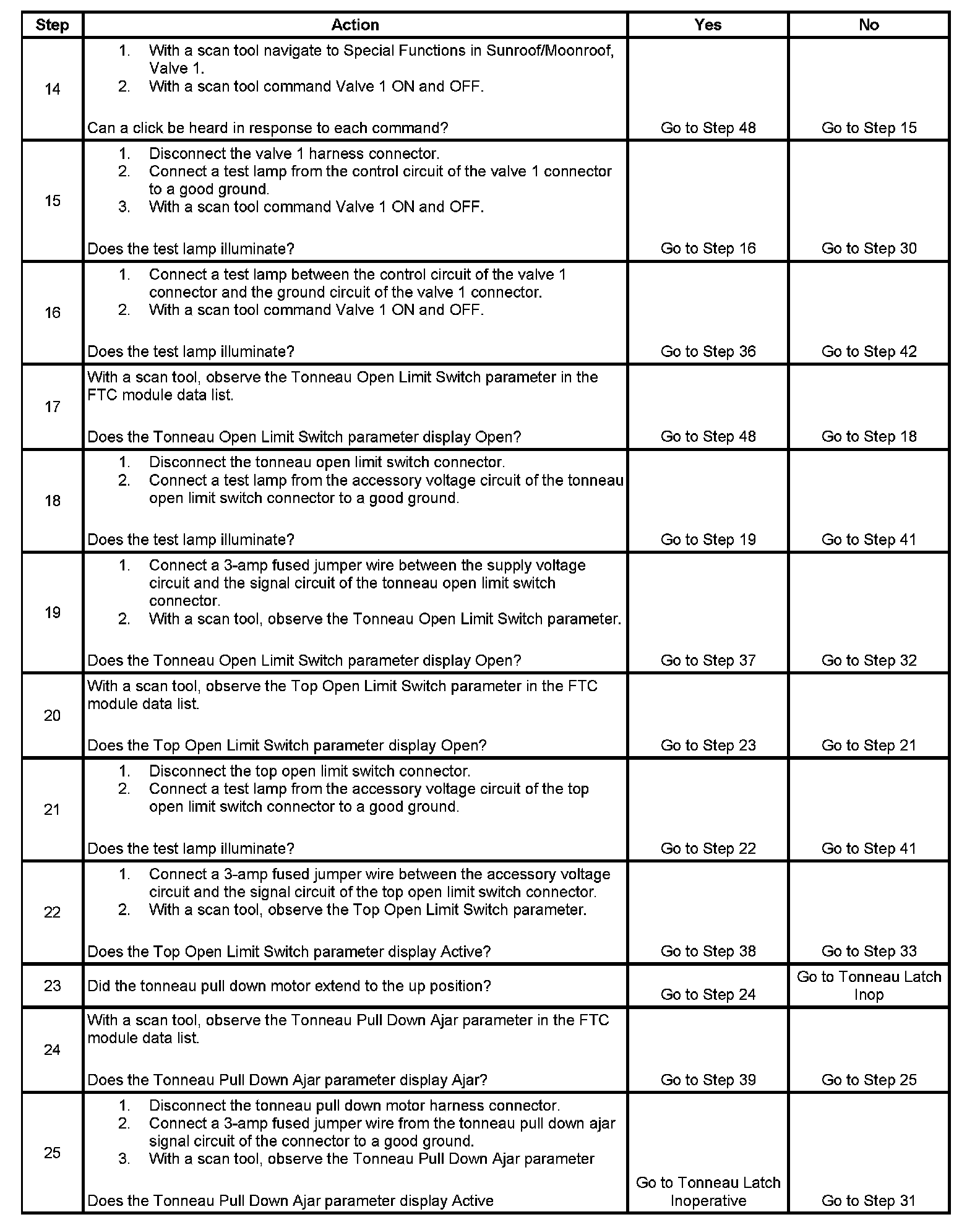

Steps 14 - 25:

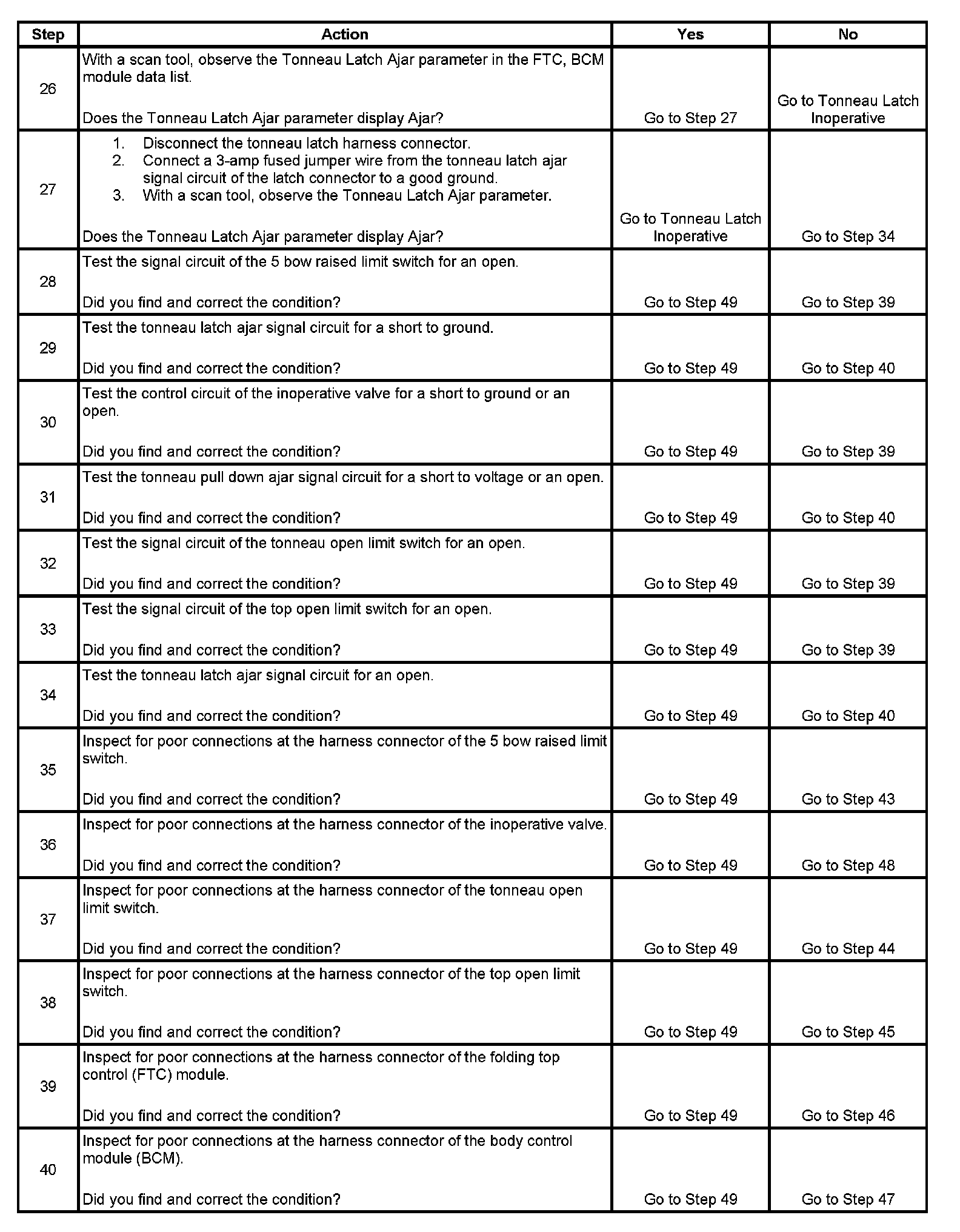

Steps 26 - 40:

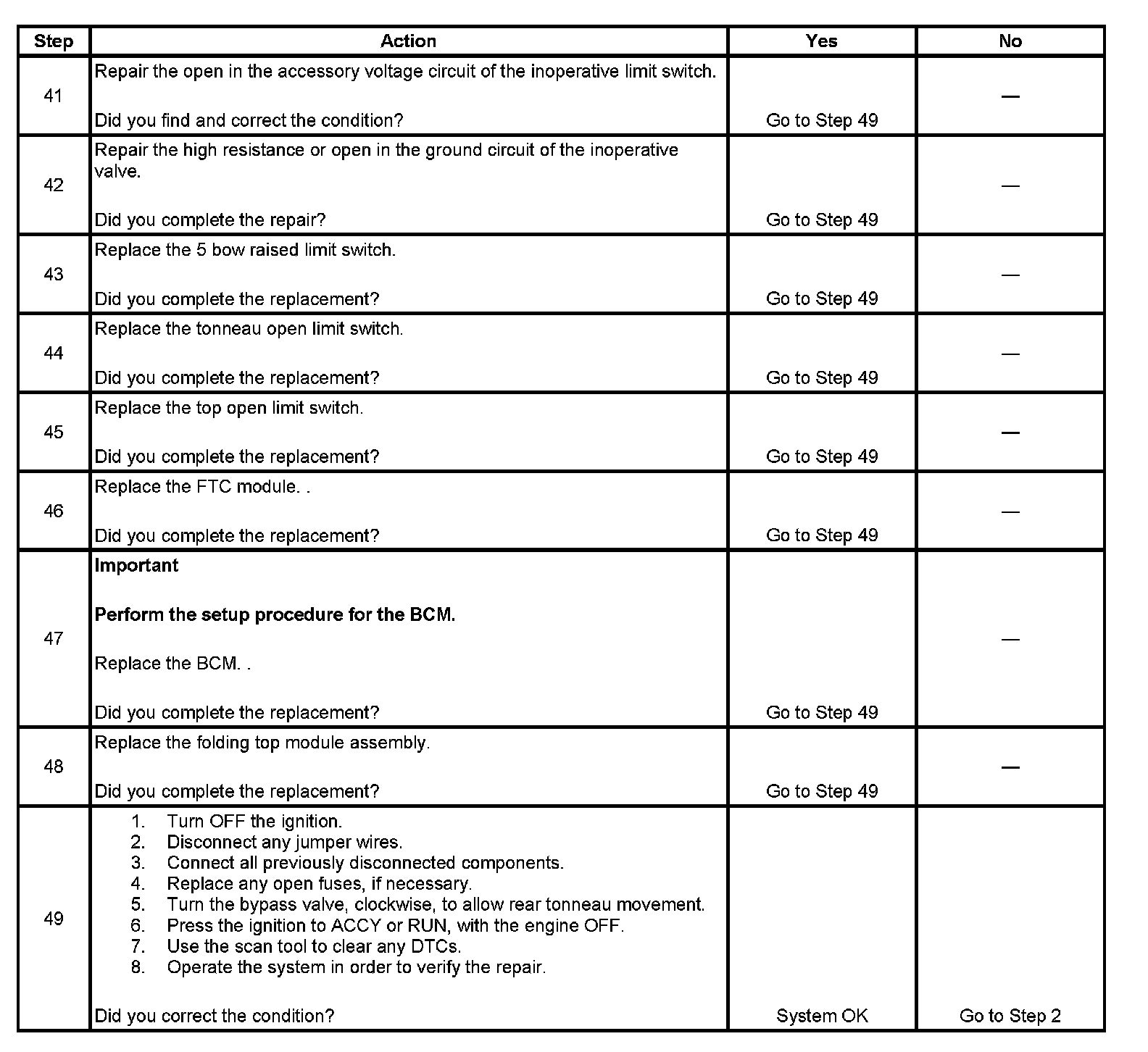

Steps 41 - 49:
