Rearview Mirror Replacement (Base)

REARVIEW MIRROR REPLACEMENT (BASE)

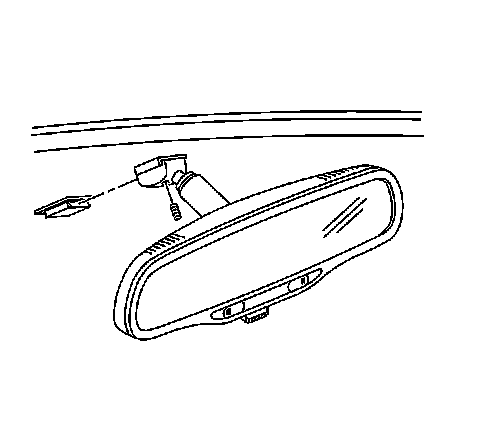

REMOVAL PROCEDURE




1. Disconnect the inside rearview mirror electrical connector.
2. Loosen the mirror mount tension screw.
3. Slide the mirror up off the mirror bracket.

INSTALLATION PROCEDURE




1. Slide the rearview mirror down onto the bracket.
2. Connect the electrical connector.
Tighten the mirror tension screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the rearview mirror mount tension screw to 1.5 N.m (13 lb in).
