Lock Cylinder Replace - Console Compartment Door

Lock Cylinder Replace - Console Compartment Door

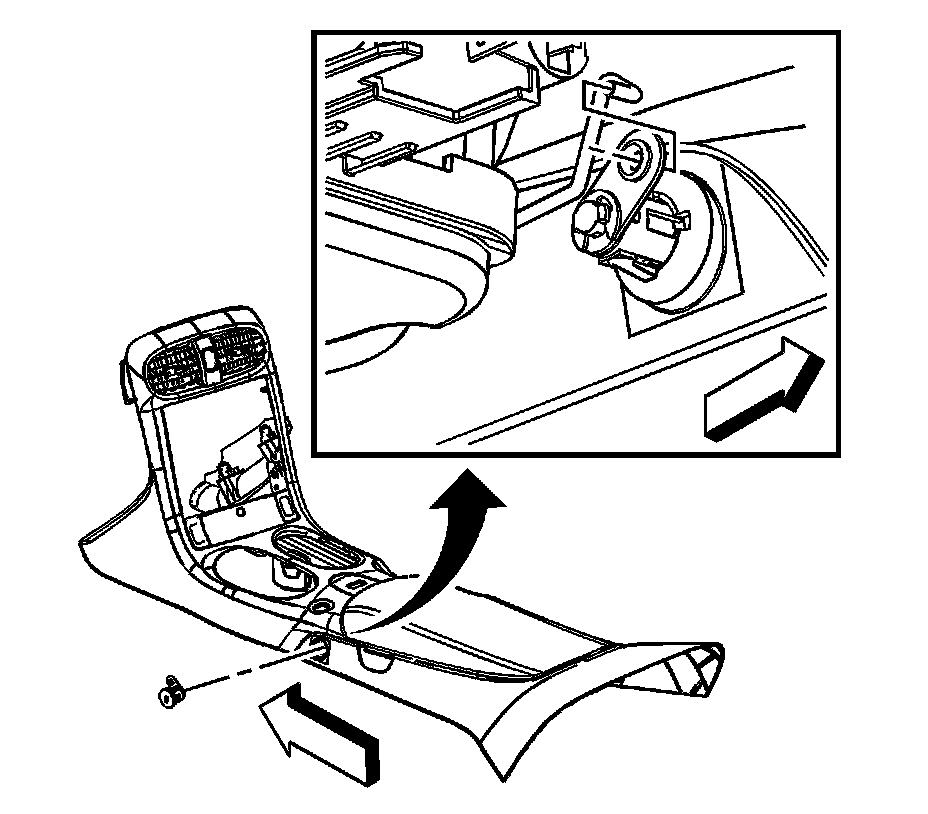

Removal Procedure




1. Remove the Lock cylinder rod.
2. Remove the lock cylinder.

* Squeeze the sides of the lock cylinder releasing the lock tabs.
* Use a flat bladed tool to remove the lock cylinder from the console.

Installation Procedure




1. Position the lock cylinder within the opening of the console.
2. Push inward until the lock tabs secure the lock cylinder to the console. An audible "click" noise should be heard.
3. Connect the Lock cylinder rod.
