Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Lock Cylinder >> Service and Repair

Trunk / Liftgate Lock Cylinder: Service and Repair

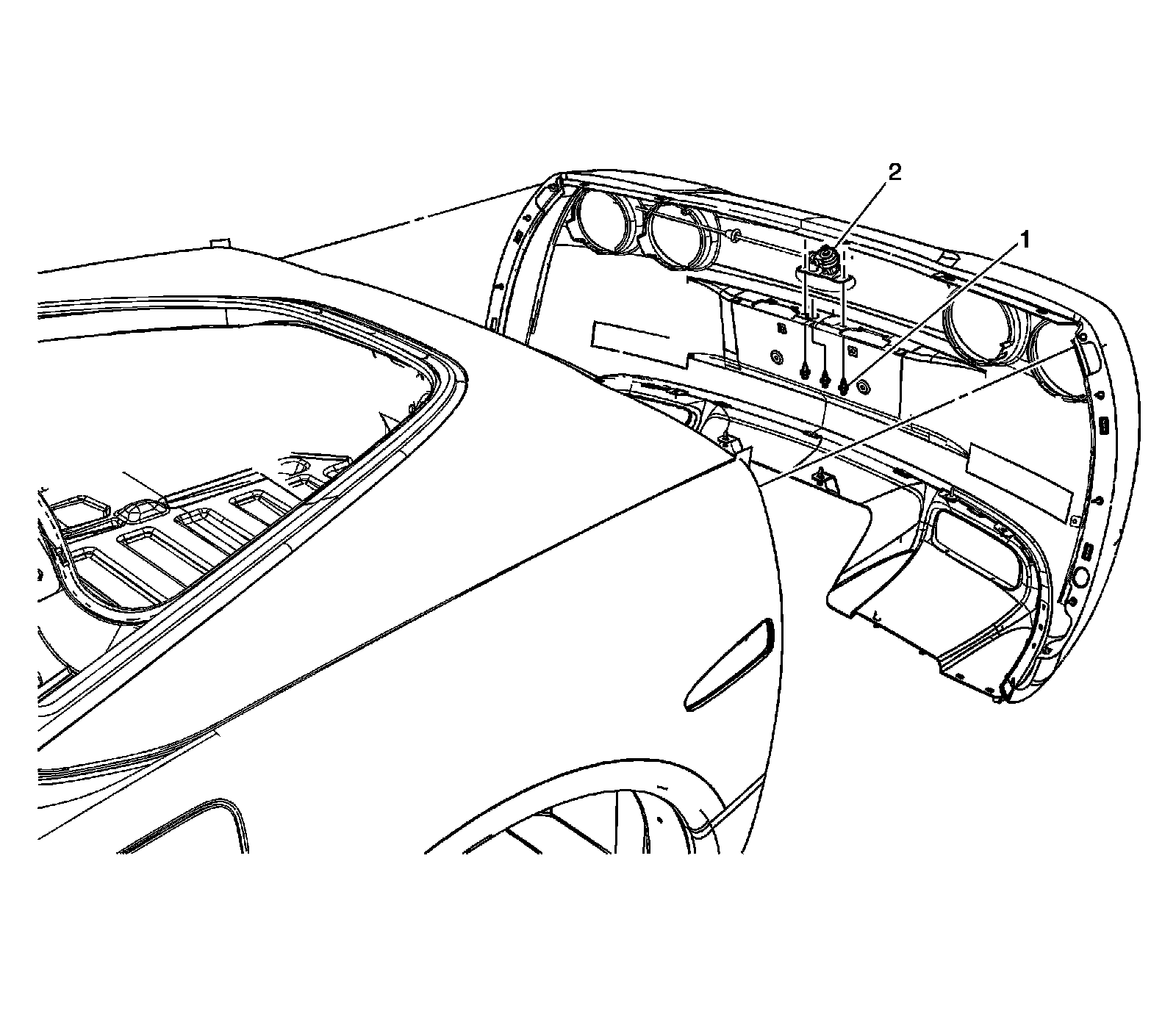

Lock Cylinder Replacement - Rear Compartment Lid

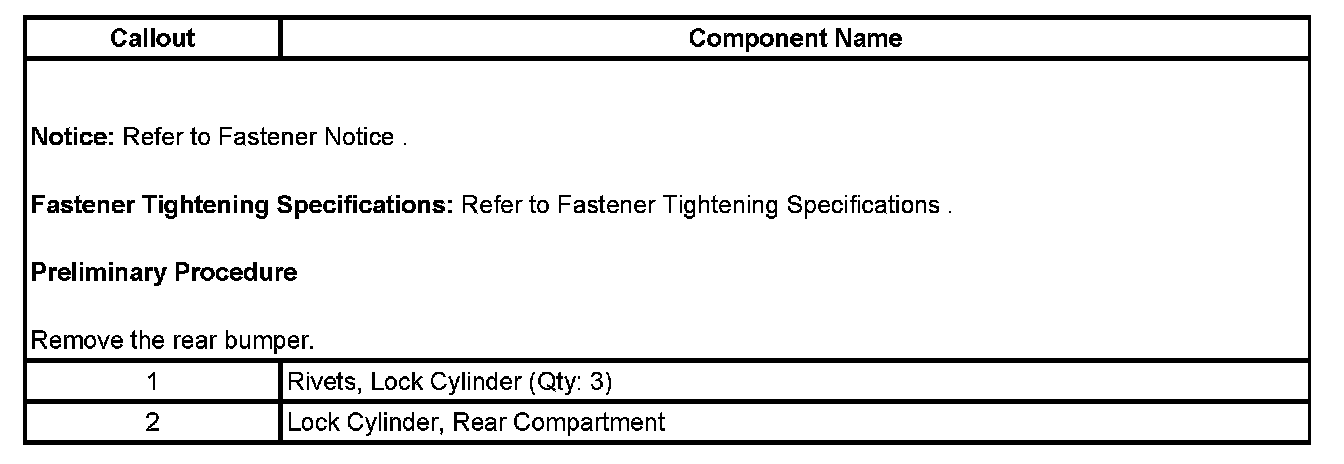

Step 1 - Step 2:
