Antenna Control Module: Diagrams

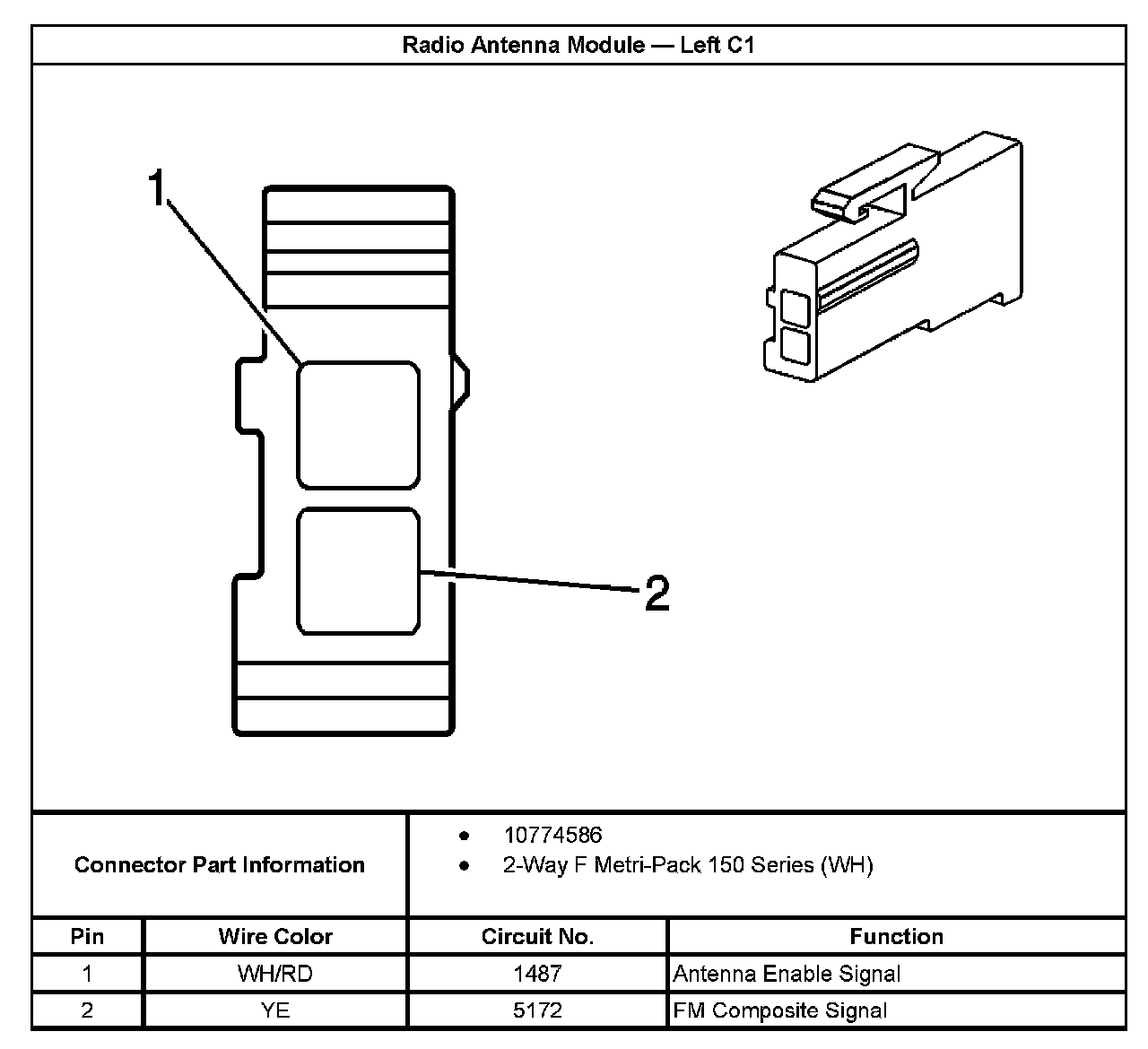

Radio Antenna Module-Left C1:

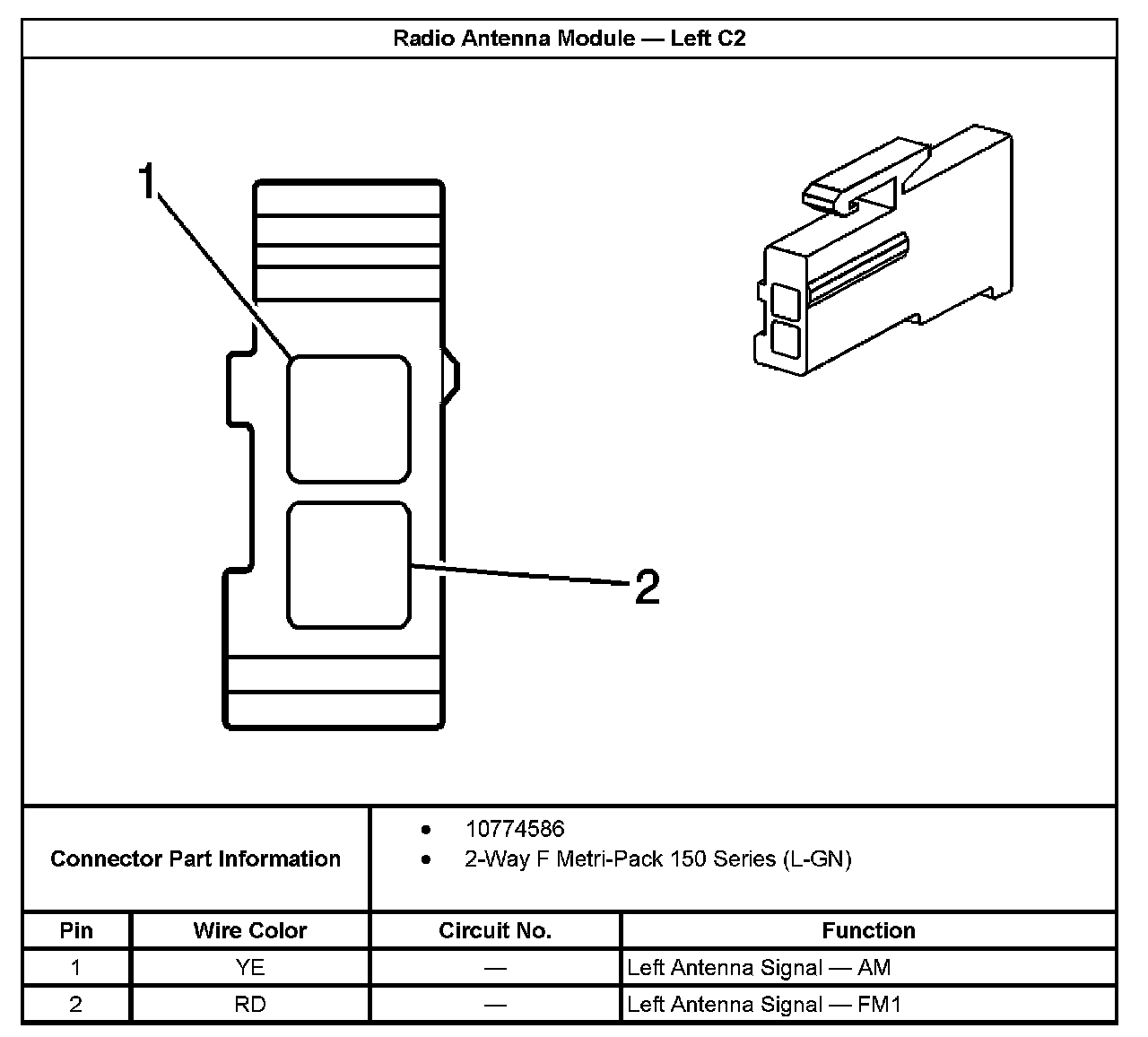

Radio Antenna Module-Left C2:



Radio Antenna Module-Right:
