A/T Inline Harness Connector Engine Side
A/T Inline Harness Connector Engine Side

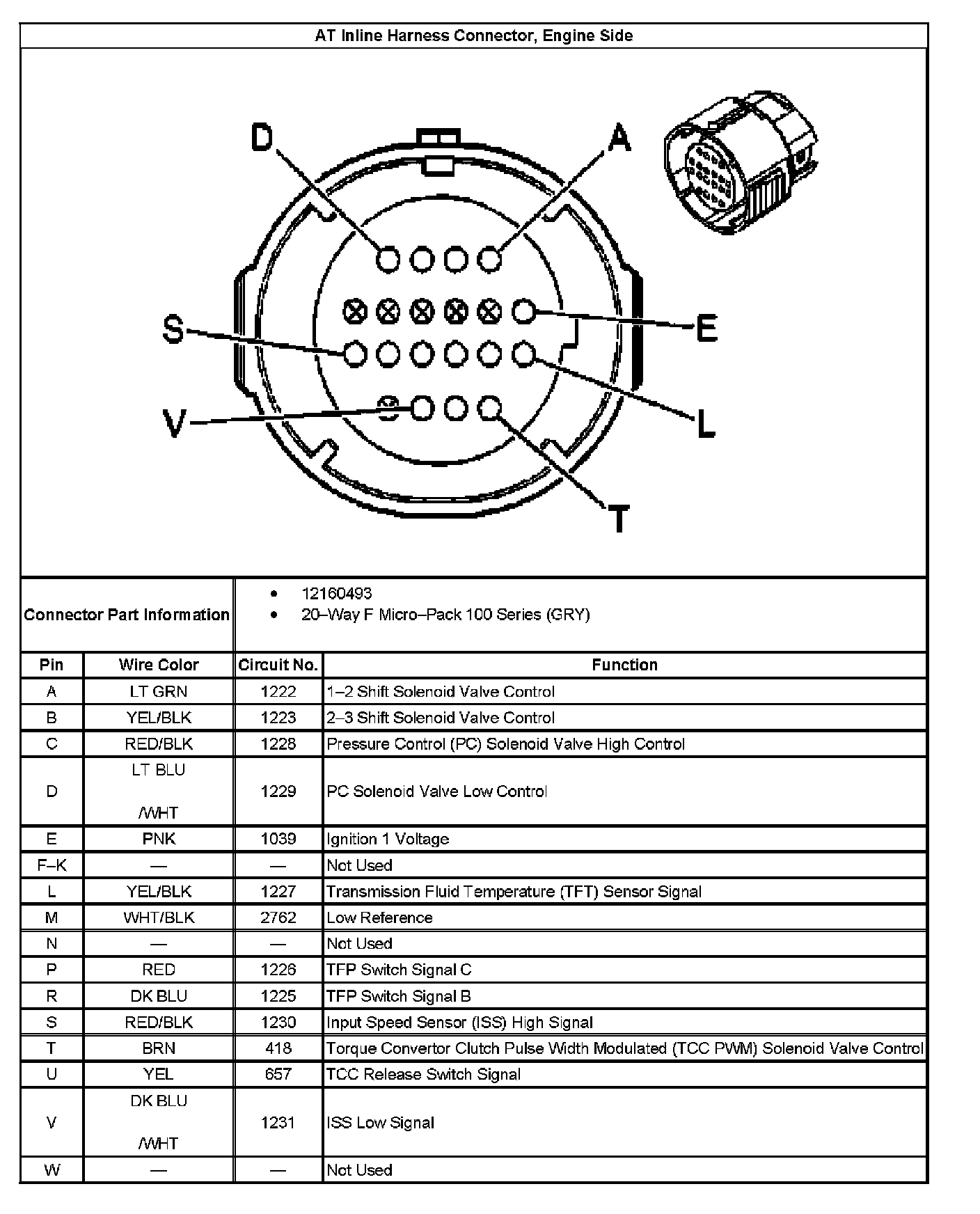

AT Inline 20-Way Connector End View:
