Antilock Brakes / Traction Control Systems

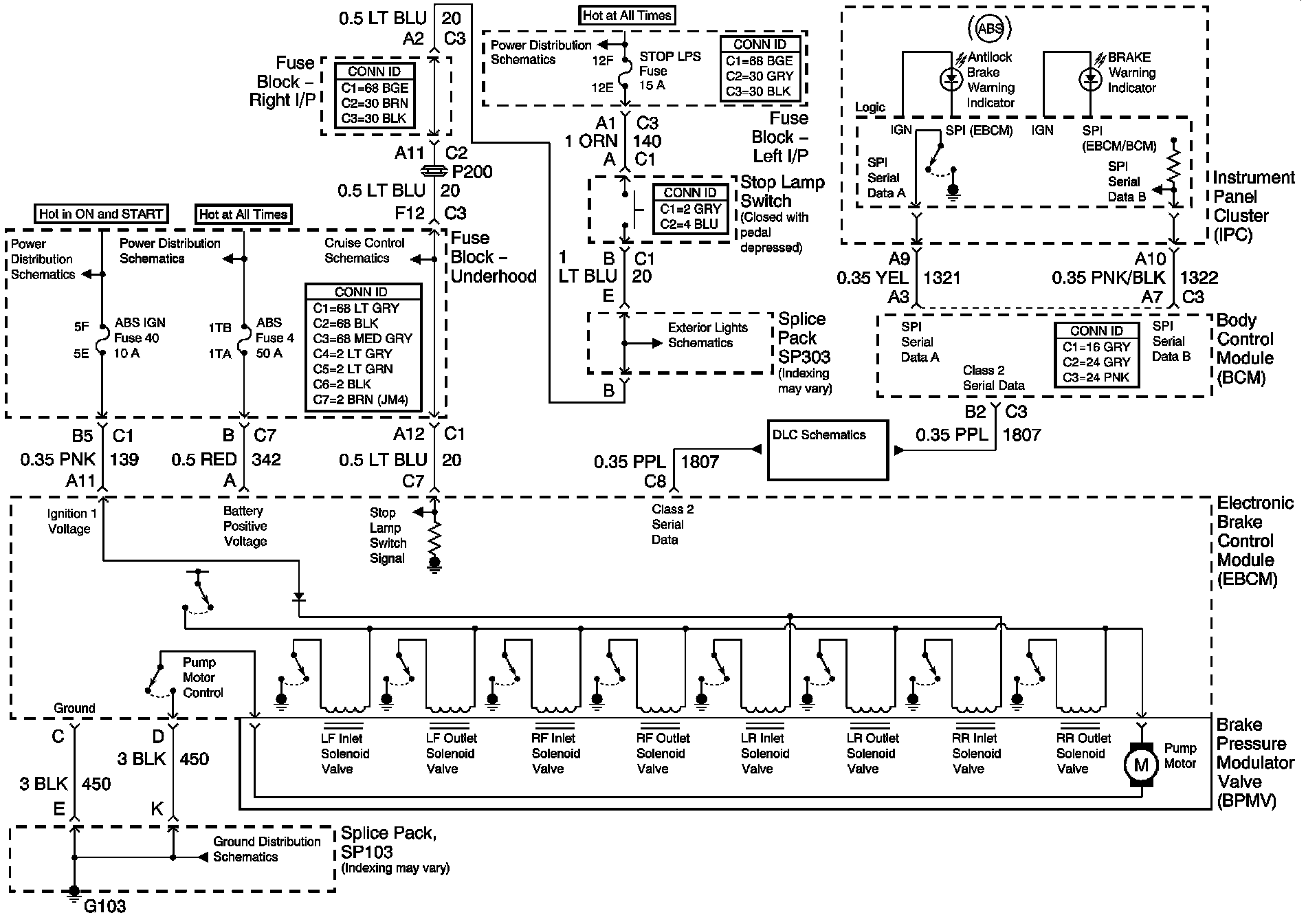

EBCM, PWR, GND, and BPMV:

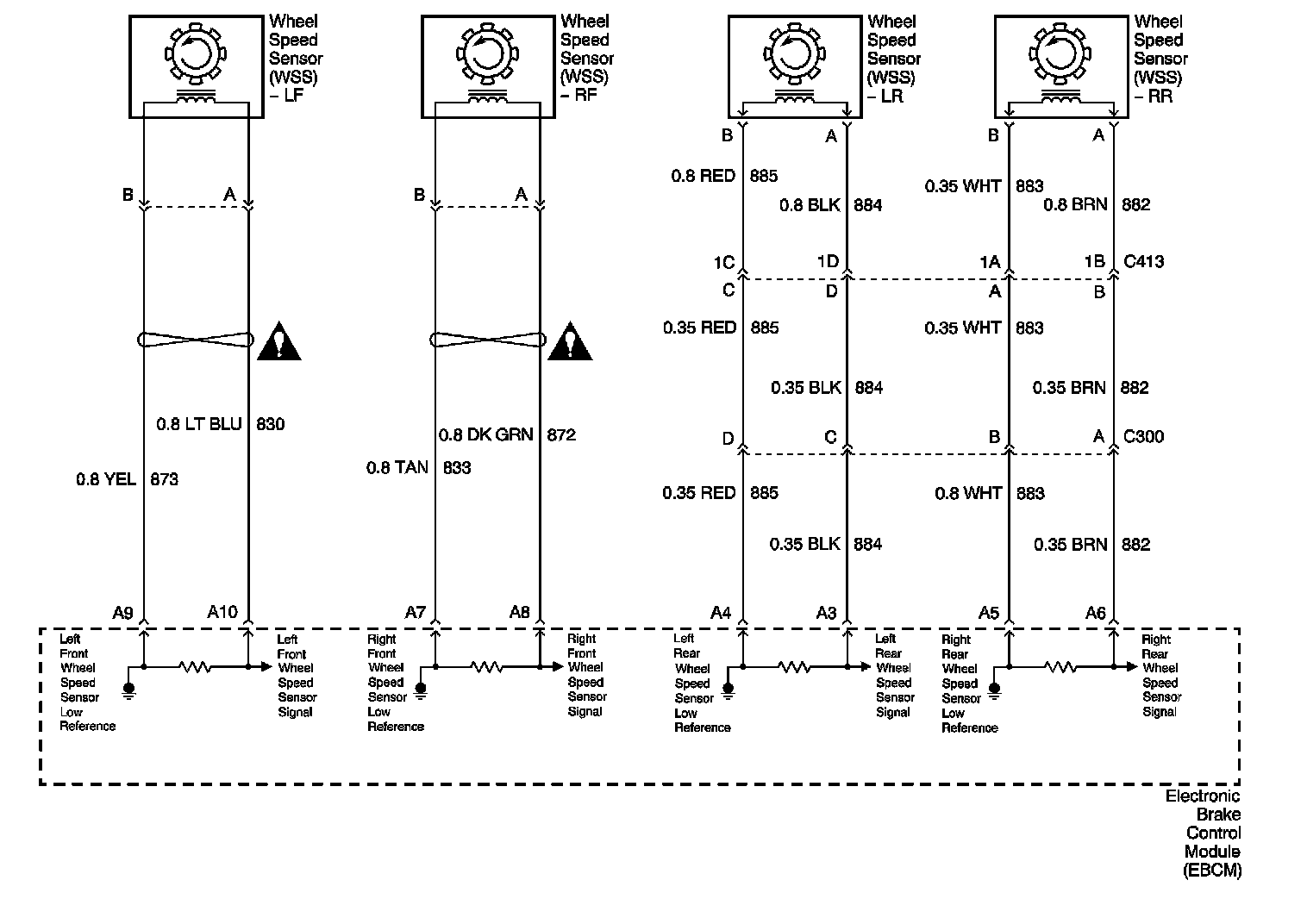

Wheel Speed Sensor:

Locations: The locations for the Connectors, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
