Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>
Input Speed Sensor
Input Speed Sensor

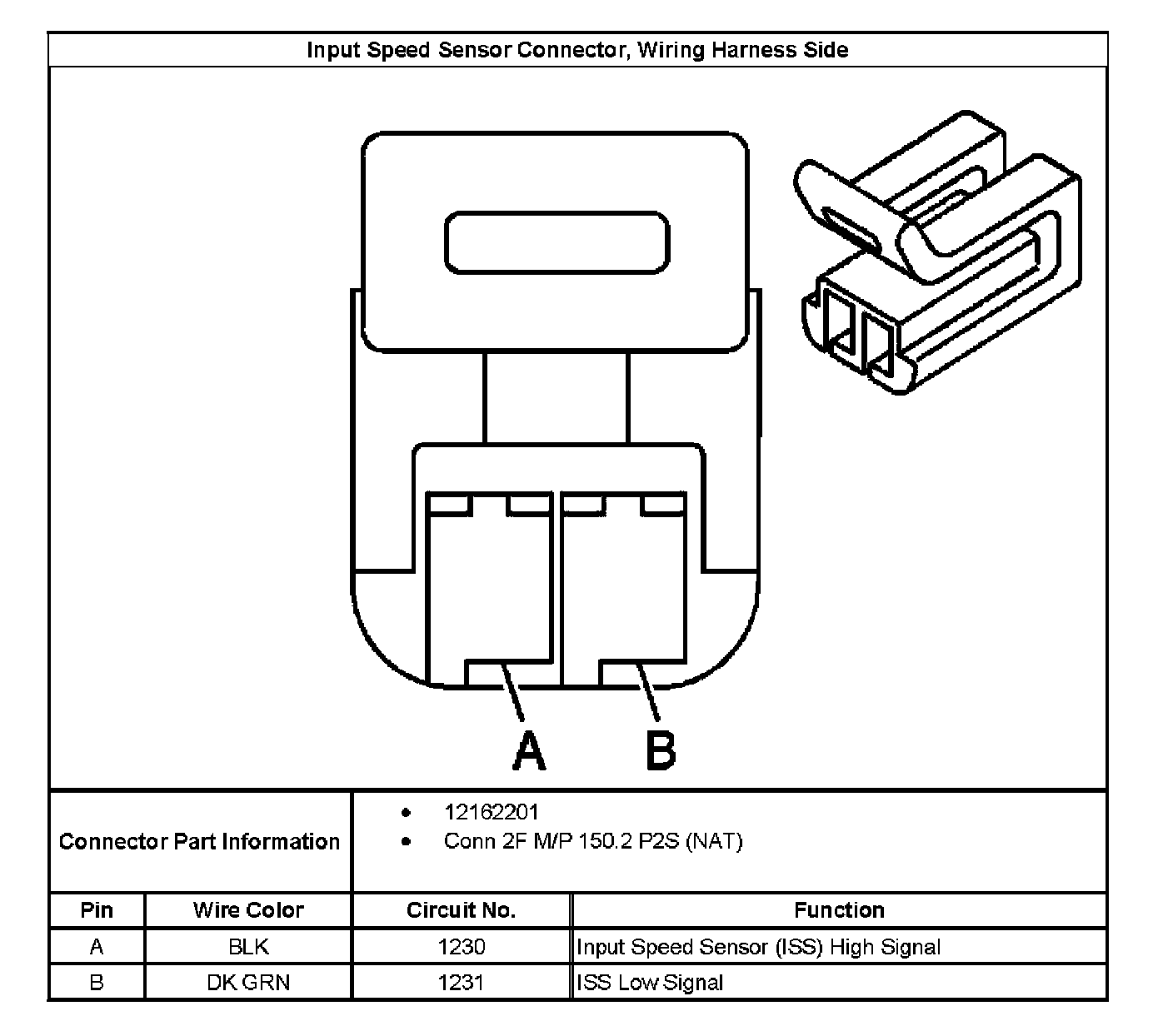

Input Speed Sensor Connector Wiring Harness Side:
