Pilot Bearing: Service and Repair

Pilot Bearing Replacement

^ Tools Required
- J 23907 (09917-58010) Input Shaft Bearing Remover
- J 35271 (09924-17810) Flywheel Holder
- 09925-98210 Input Shaft Bearing Installer

Removal Procedure





1. Remove the transaxle from the vehicle.

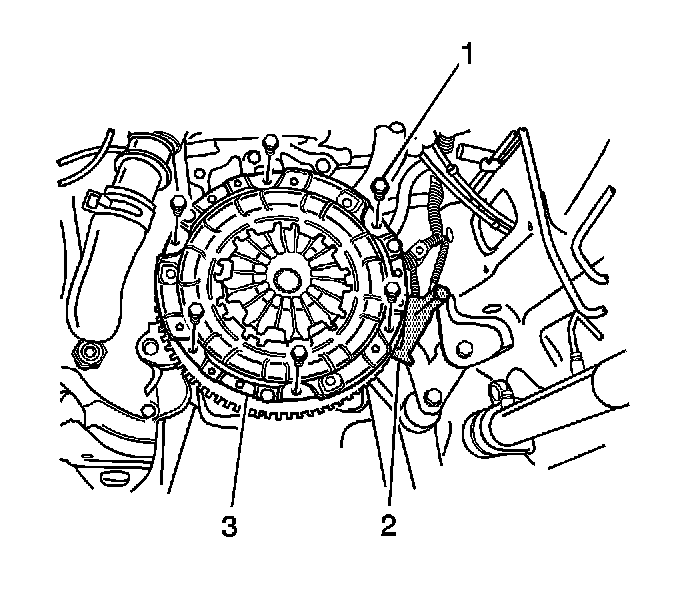

2. Install the J 35271 (2) to the flywheel.
3. Remove the pressure plate and the clutch disc.






4. Caution: Wear safety glasses in order to avoid eye damage.

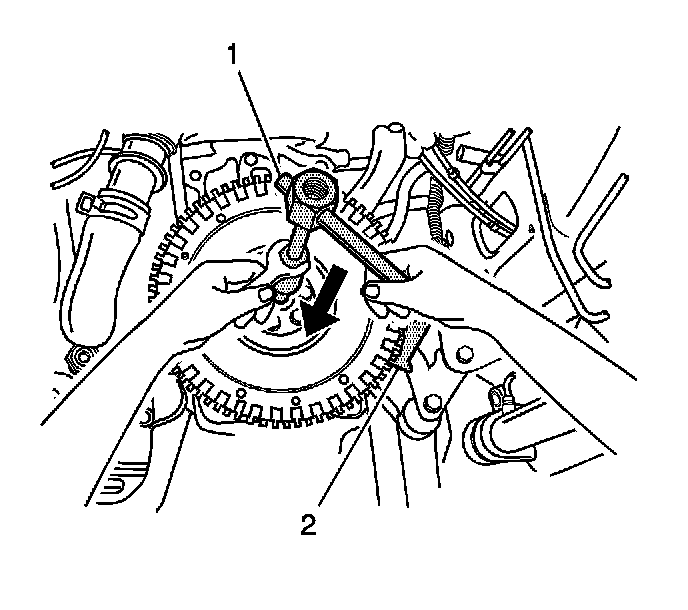

Remove the transmission input shaft bearing from the crankshaft using the J 23907 (1).

Installation Procedure





1. Install the input shaft bearing using the 09925-98210 (2) and J 35271 (1).
2. Install the pressure plate. and the clutch disc.
3. Remove the J 35271 (1) from the flywheel.
4. Install the transaxle to the vehicle.
