Impact Sensor: Service and Repair

INFLATABLE RESTRAINT SIDE IMPACT SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION:
- Refer to SDM Voltage After Ignition Is Turned OFF Caution in Service Precautions.
- Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the trim from the center pillar.

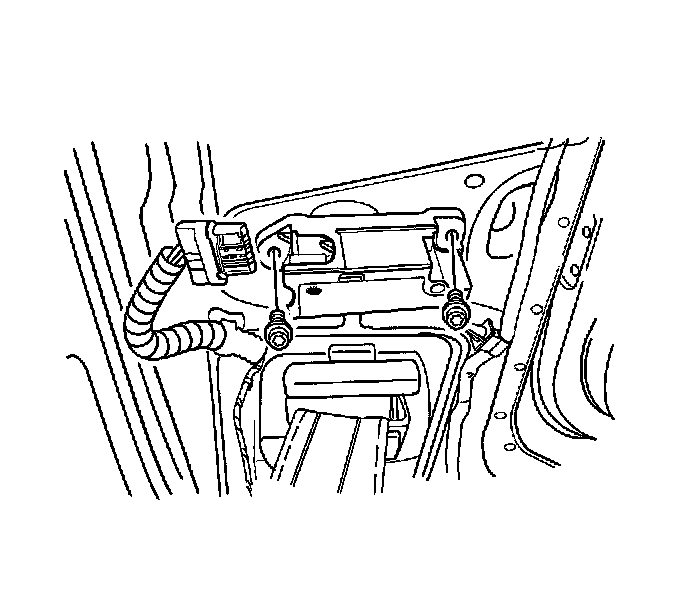

3. Remove the side air bag sensor mounting bolts.
4. Remove the side air bag sensor.

INSTALLATION PROCEDURE




1. Install the side air bag sensor.
2. Install the side air bag sensor mounting bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the side air bag sensor mounting bolts to 10 N.m (89 lb in).

3. Install the trim to the center pillar.
4. Connect the negative battery cable.
