Seat Belt Height Adjuster: Service and Repair

SEAT BELT HEIGHT ADJUSTER REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the upper center pillar trim panel.

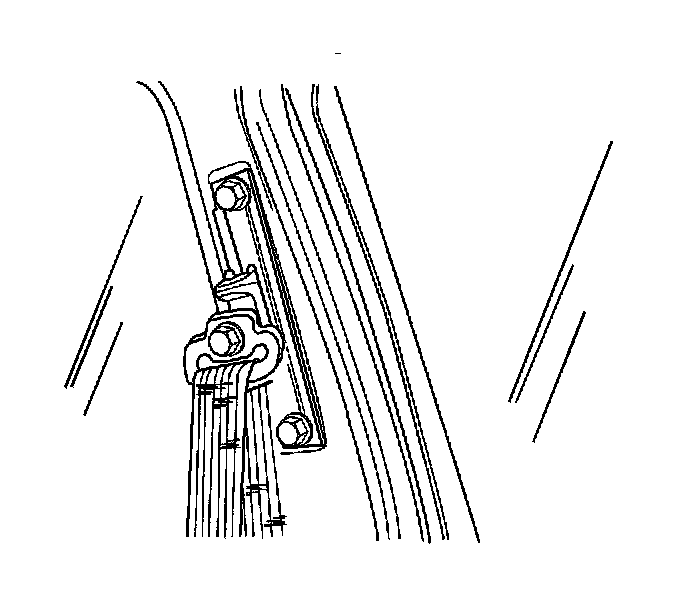

2. Remove the bolts and the seat belt height adjuster.

INSTALLATION PROCEDURE




1. Install the seat belt height adjuster with the bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the seat belt height adjuster bolts to 23 N.m (17 lb ft).

2. Install the upper center pillar trim panel.
