Intake (IMTV) Vacuum Reservoir Replacement

INTAKE MANIFOLD TUNING VALVE (IMTV) VACUUM RESERVOIR REPLACEMENT

REMOVAL PROCEDURE

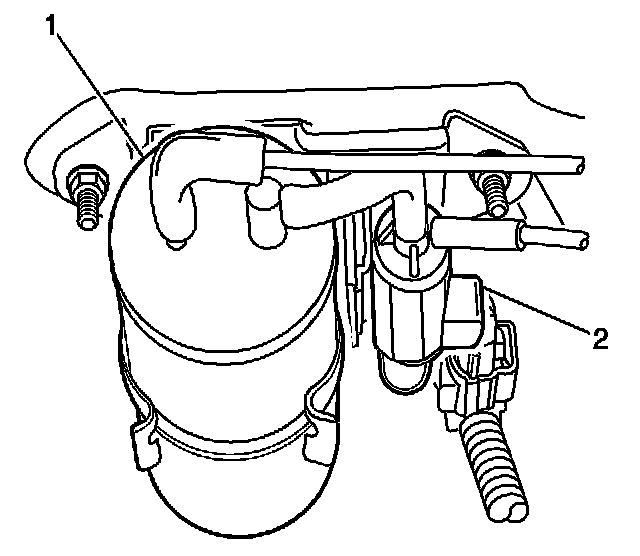

1. Remove the vacuum hoses from the intake manifold vacuum (IMTV) reservoir (1).
2. Remove the IMTV reservoir (1).

INSTALLATION PROCEDURE

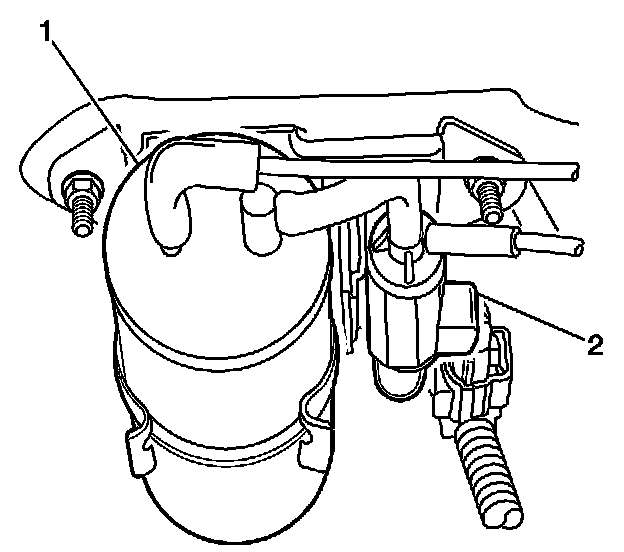

1. Install the IMTV reservoir (1).
2. Install the vacuum hoses to the IMTV reservoir (1).
