Home >> Chevrolet >> 2005 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Ash Tray Lamp >> Diagrams

Ash Tray Lamp: Diagrams

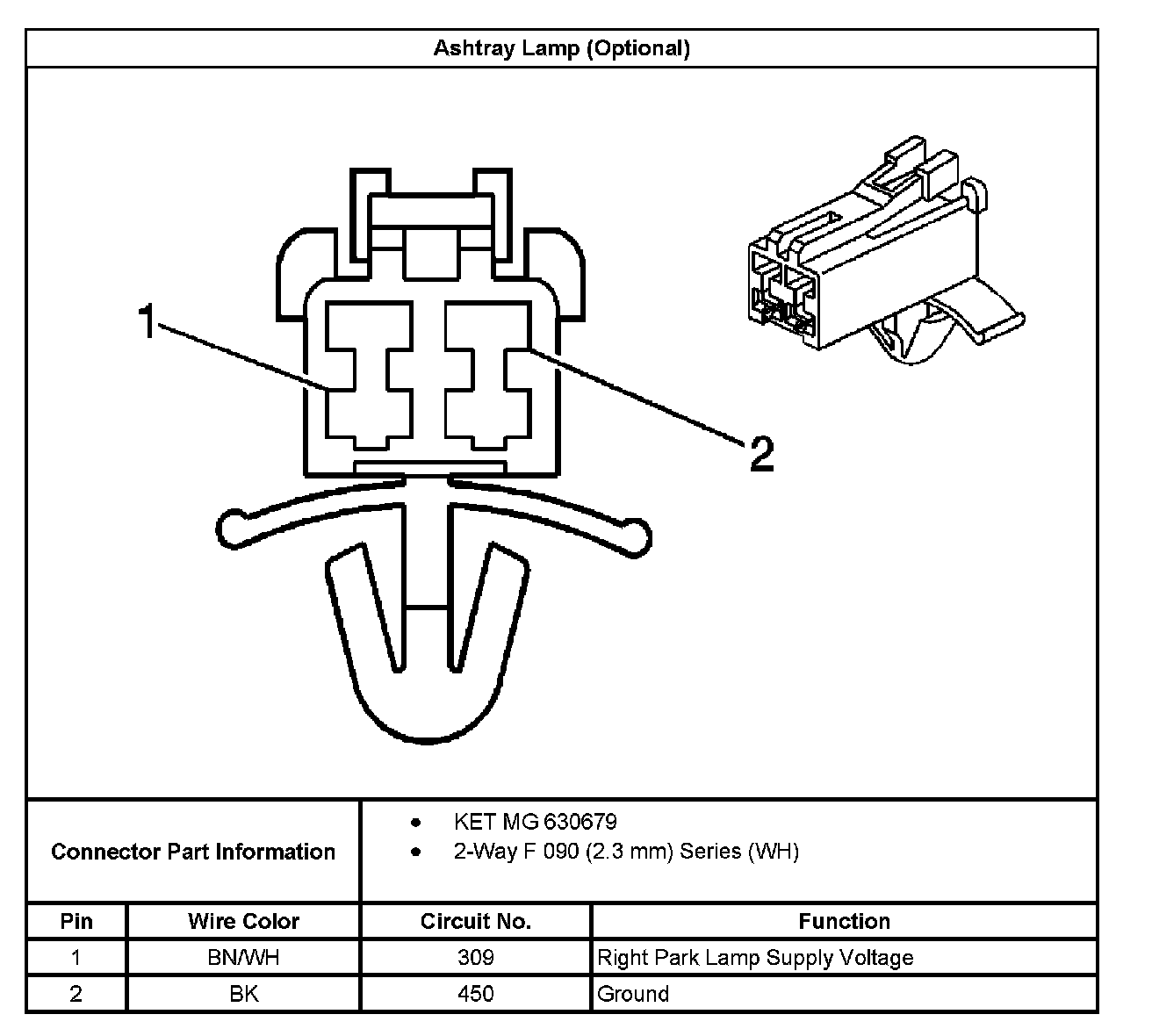

Ashtray Lamp (Optional):

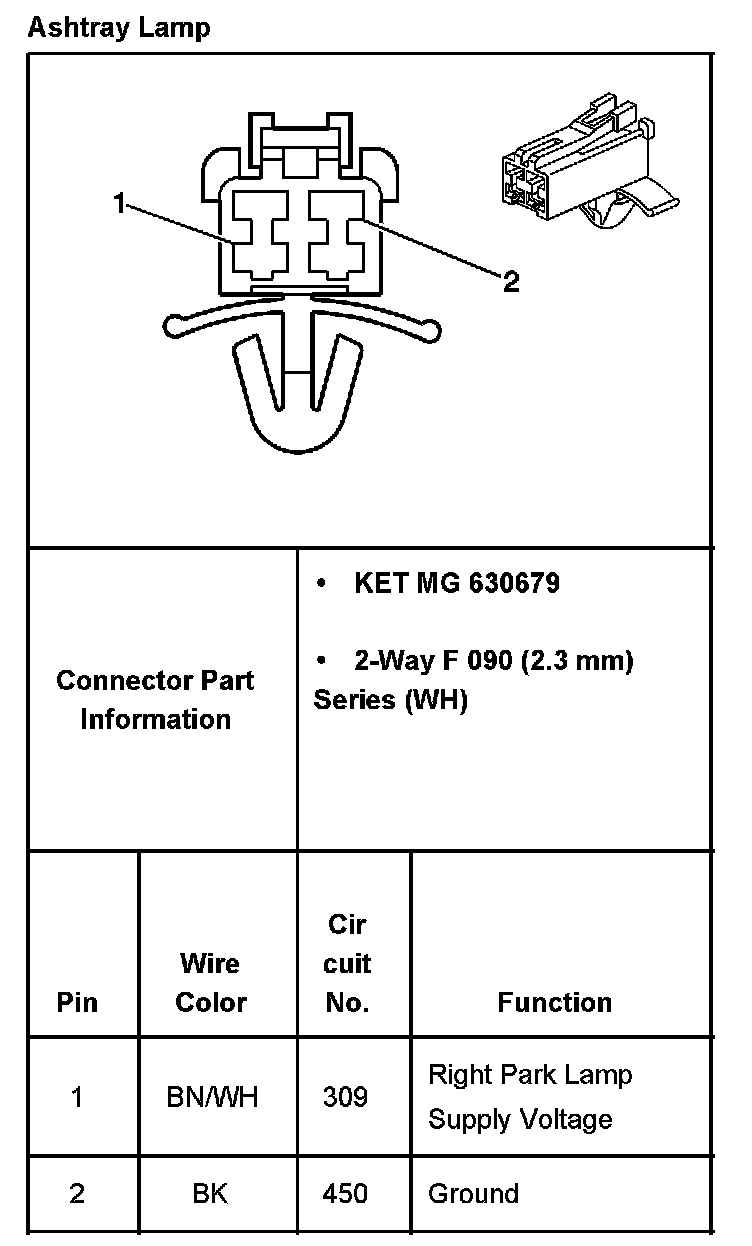

Ashtray Lamp:
