High Mounted Stop Lamp Replacement (Notchback)

HIGH MOUNTED STOP LAMP REPLACEMENT (NOTCHBACK)

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Open the rear deck lid.

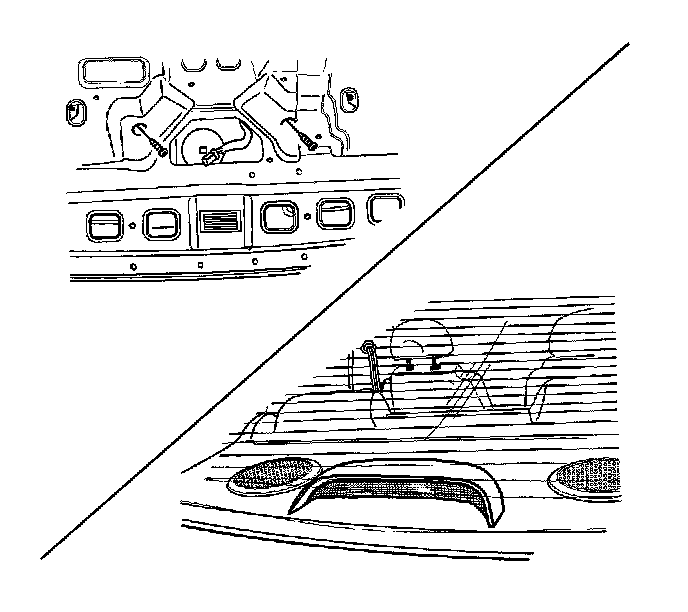

3. Remove the screws and the center high-mounted stop lamp (CHMSL).
4. Remove the CHMSL bulb.

INSTALLATION PROCEDURE




1. Install the CHMSL bulb.
2. Install the CHMSL with the screws.
3. Connect the negative battery cable.
