High Mounted Stop Lamp Replacement (Hatchback)

HIGH MOUNTED STOP LAMP REPLACEMENT (HATCHBACK)

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Open the hatchback door.

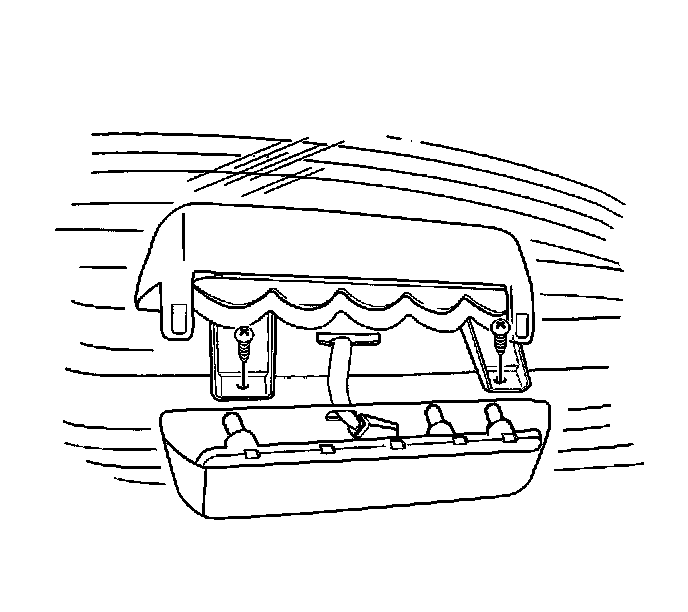

3. Pry open the center high-mounted stop lamp (CHMSL) access cover with a screwdriver.
4. Disconnect the electrical connector.
5. Remove the screws and the CHMSL.

INSTALLATION PROCEDURE




1. Install the CHMSL with the screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the CHMSL mounting screws to 3 N.m (27 lb in).

2. Connect the electrical connector.
3. Close the CHMSL access cover.
4. Connect the negative battery cable.
