Backup Lamp Switch: Diagrams

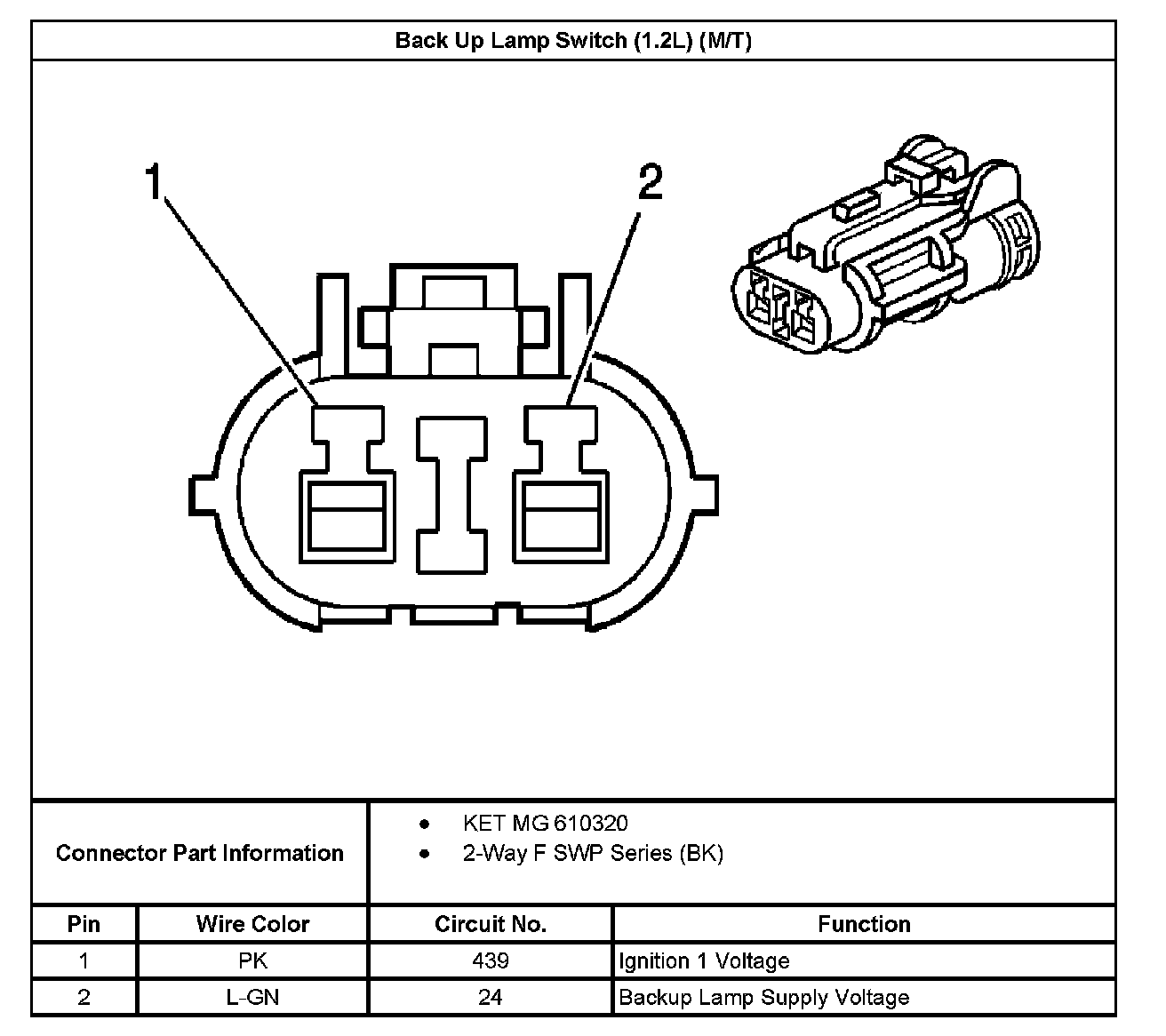

Back Up Lamp Switch (M/T):
Back Up Lamp Switch (M/T):

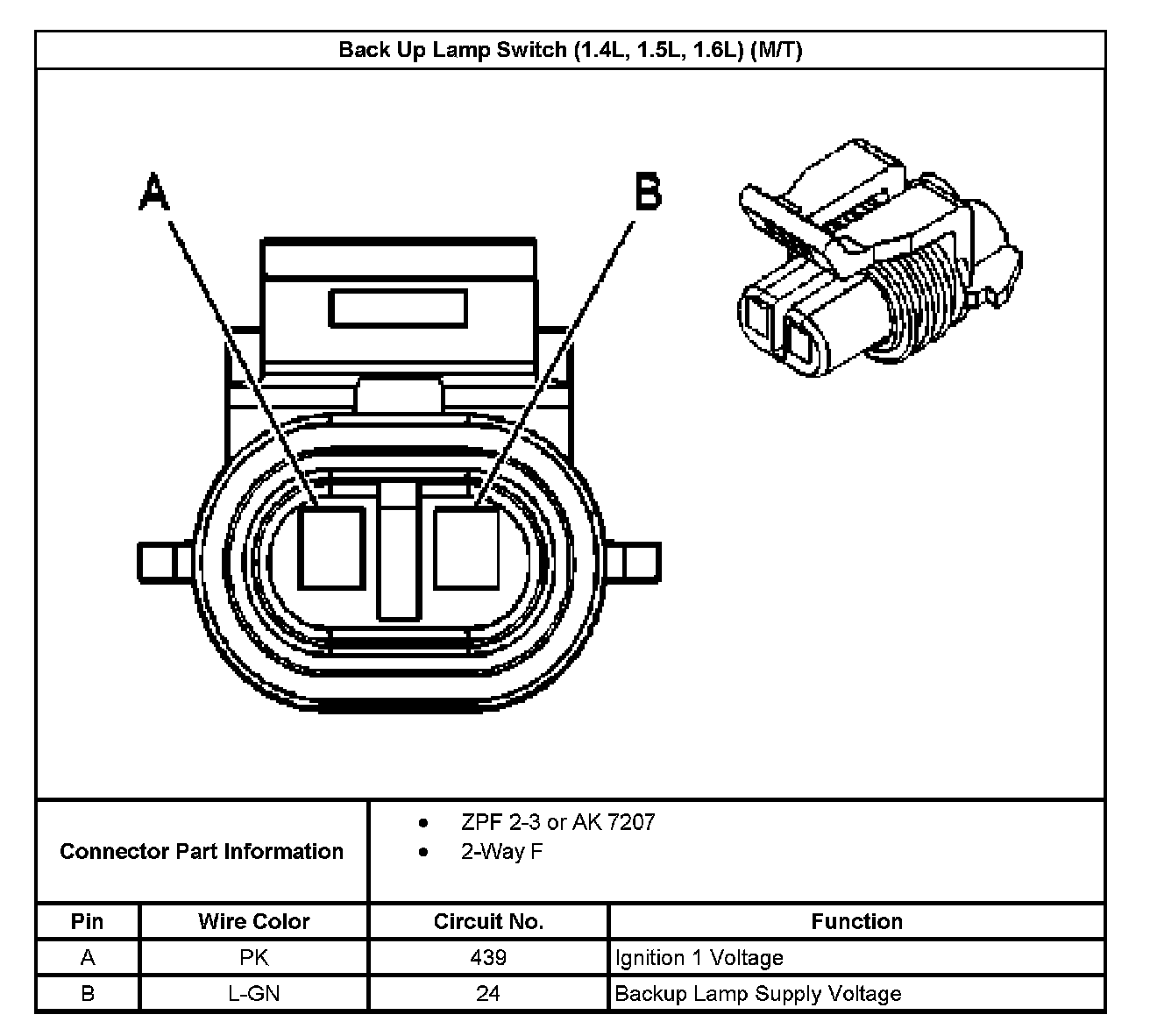

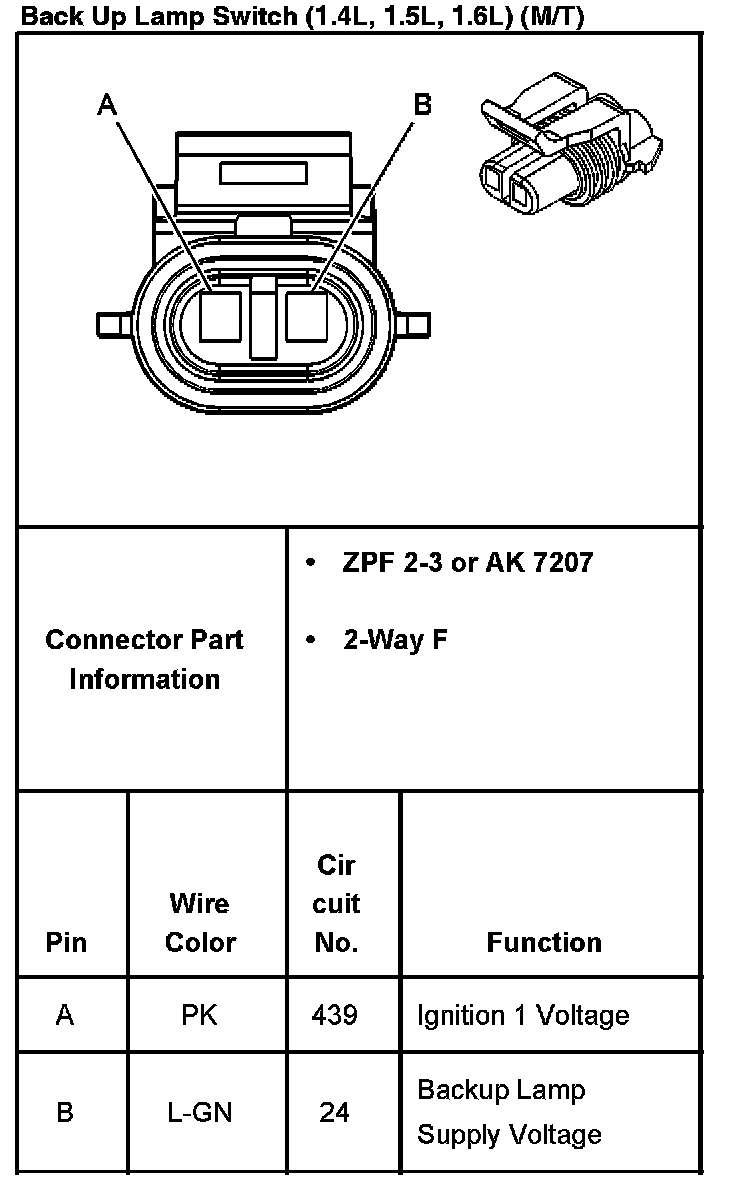

Back Up Lamp Switch (1.4L, 1.5L, 1.6L) (M/T):
