Temperature Gauge: Service and Repair

TEMPERATURE GAGE REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.








1. Disconnect the negative battery cable.
2. Remove the instrument cluster.
3. Remove the instrument cluster lens and the face plate.

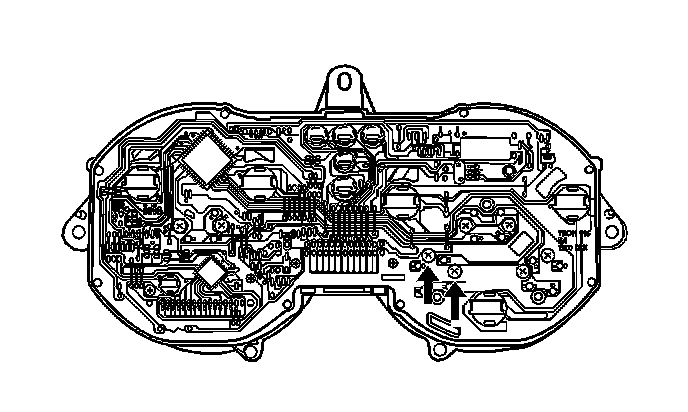

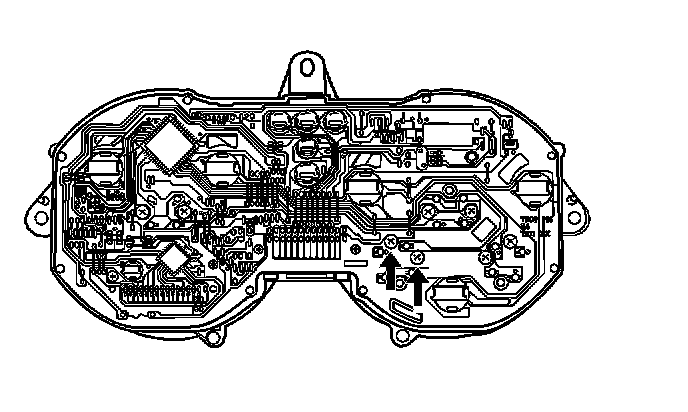

4. Remove the screws and the temperature gage from the cluster assembly.


INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.








1. Install the temperature gage to the cluster assembly with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster.
4. Connect the negative battery cable.
