Seat Belt Systems

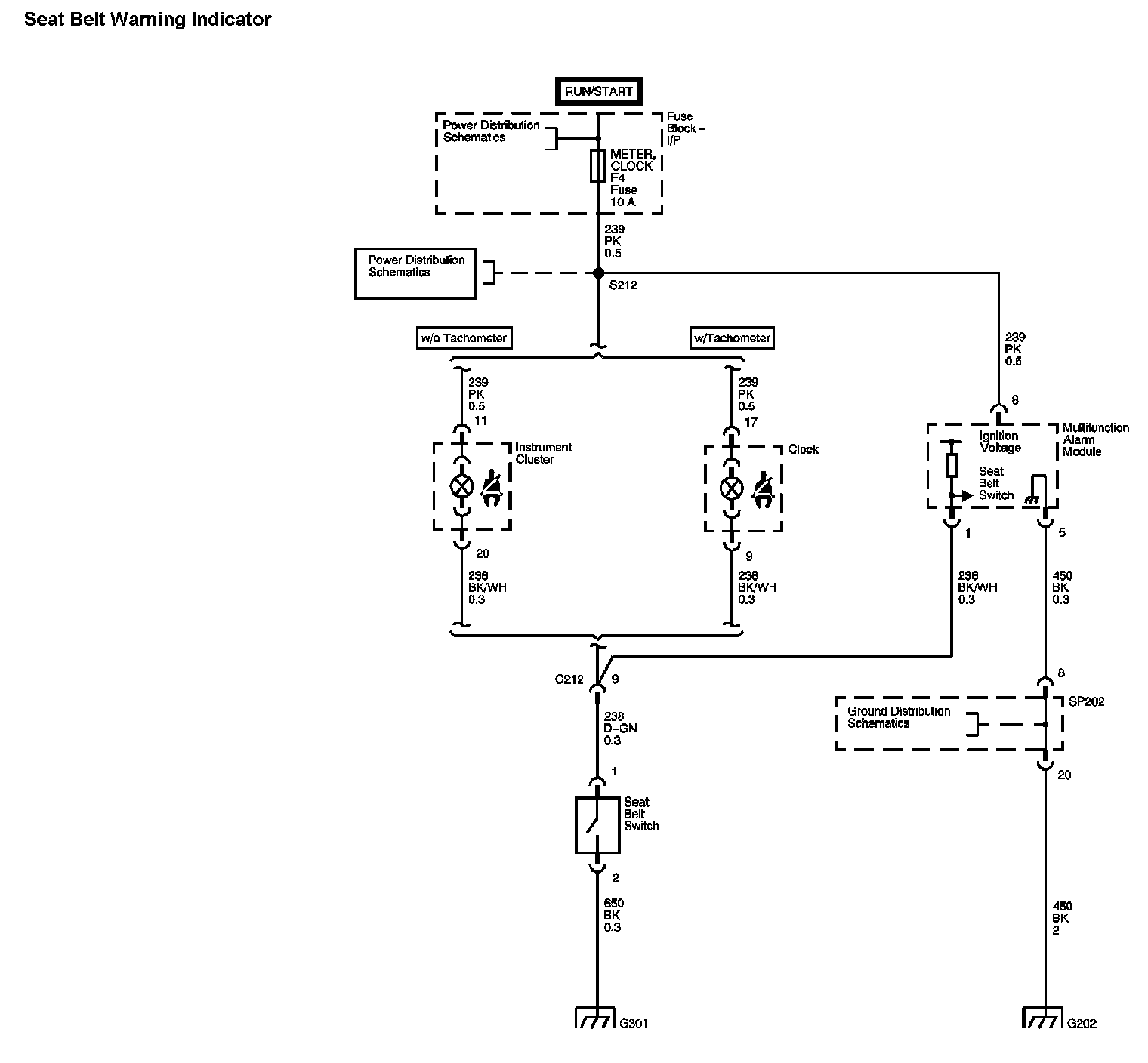

Seat Belt Diagram:

Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
