Side Air Bag
Side Air Bag
Inflatable Restraint Side Impact Module - Left Side Air Bags:

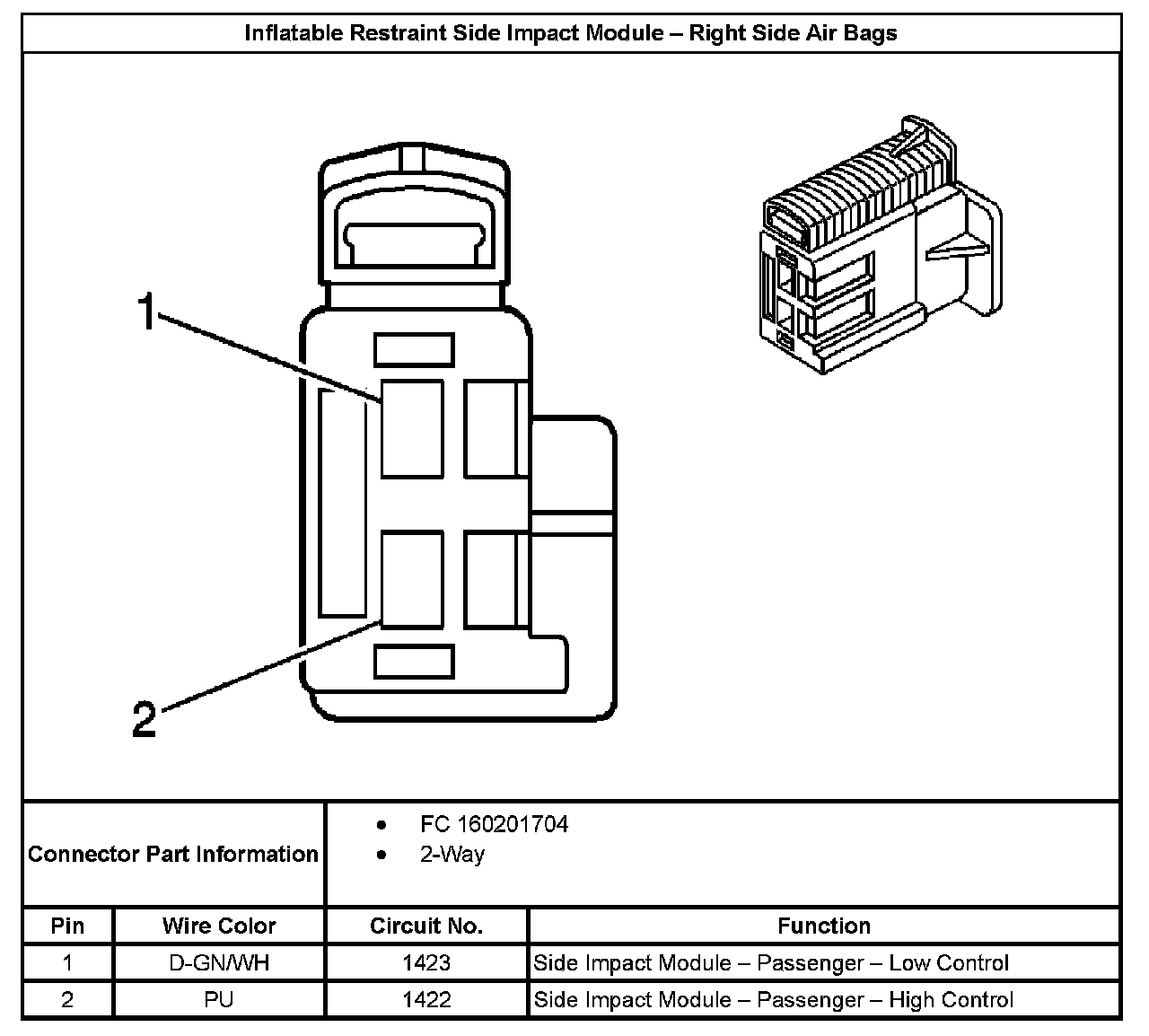

Inflatable Restraint Side Impact Module - Right Side Air Bags:
